Auxiliary Power Outlet: Service and Repair

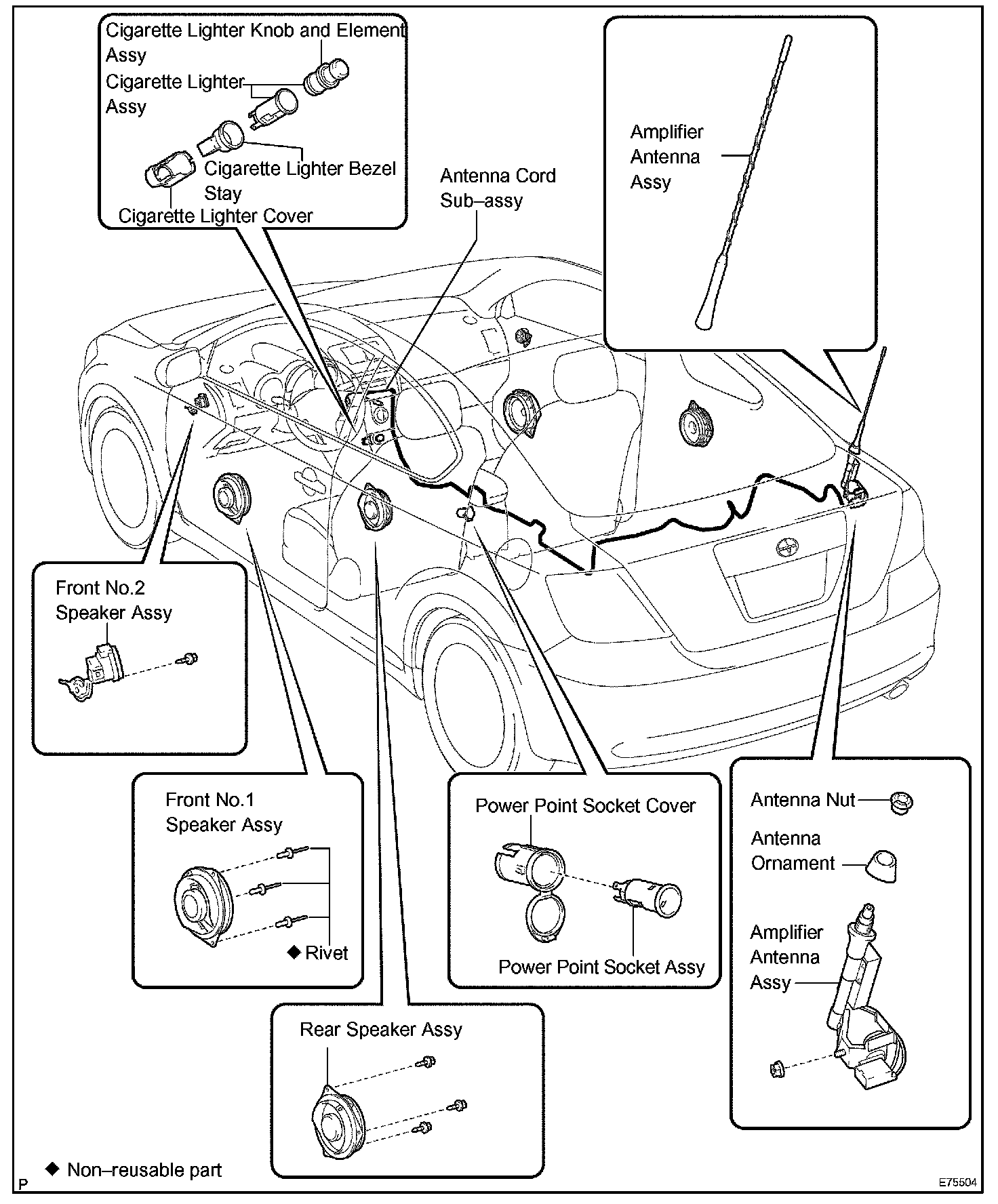

POWER POINT SOCKET ASSEMBLY






REPLACEMENT

HINT: Installation is in the reverse order of removal.

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (MANUAL TRANSAXLE)
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPR FR
3. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
4. REMOVE CONSOLE BOX ASSEMBLY RR
5. REMOVE POWER POINT SOCKET ASSEMBLY

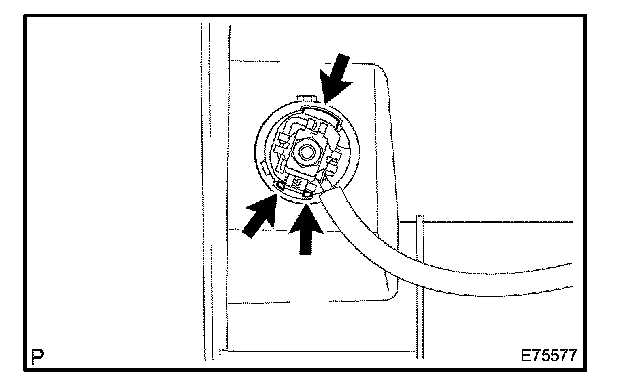

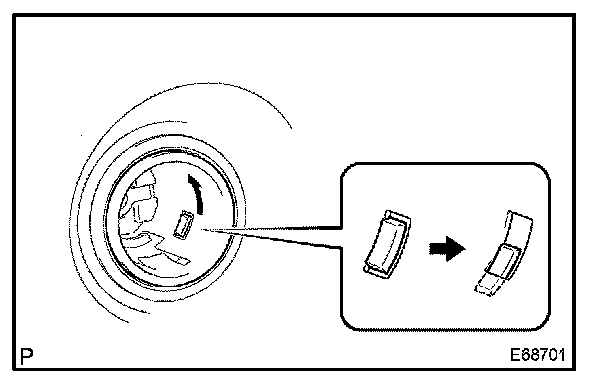

a. Turn the socket in the direction as shown in the illustration, disengage the claw between the socket and the power point socket cover, and pull out the socket.




b. Align the socket with the notch on the power point socket cover, and remove the power point socket assembly.

6. INSTALL POWER POINT SOCKET ASSEMBLY
a. Align the socket with the notch on the power point socket cover and push the power point socket assembly in as hard as possible.
