Replacement

REPLACEMENT

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.
- Power window control system
- Sliding roof system

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. REMOVE FRONT FENDER APRON SEAL RH

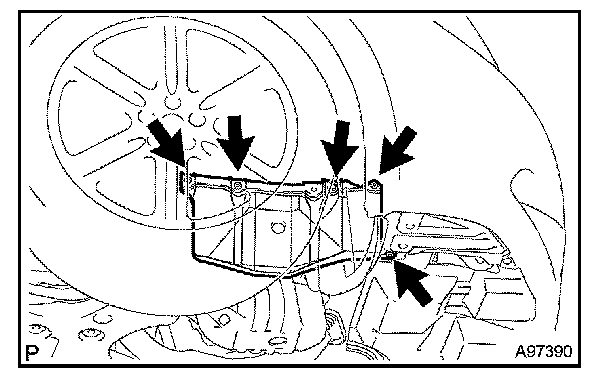

a. Remove the 2 screws and 3 clips, then remove the front fender apron seal.

3. REMOVE FAN AND GENERATOR V BELT

SST 09249-63010

4. REMOVE GENERATOR ASSEMBLY

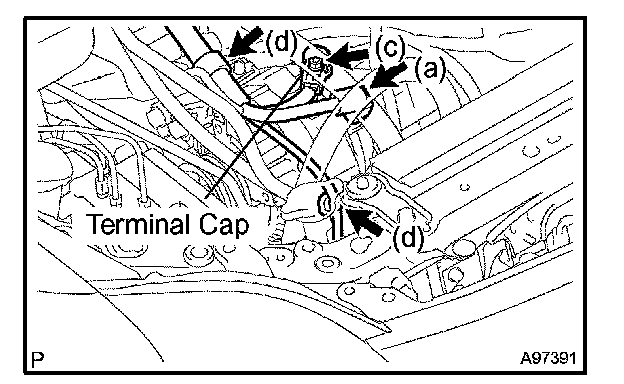

a. Disconnect the generator connector.
b. Remove the terminal cap.
c. Remove the nut, then disconnect the generator wire.
d. Remove the 2 wire harness clamps.




e. Remove the 2 bolts, then remove the generator.

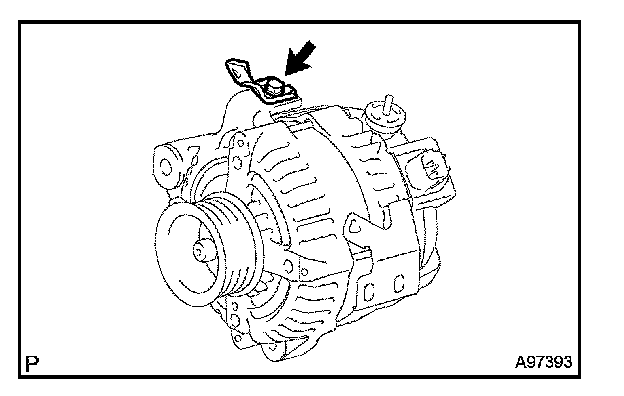

f. Remove the bolt, then wire harness clamp bracket.

5. INSTALL GENERATOR ASSEMBLY

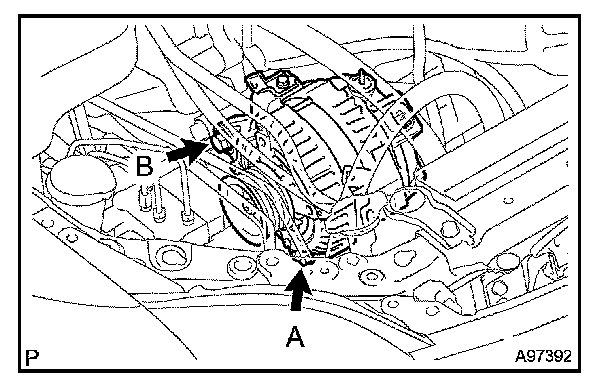

a. Install the wire harness clamp bracket with the bolt.

Torque: 8.4 N.m (85 kgf.cm, 74 in.lbf)

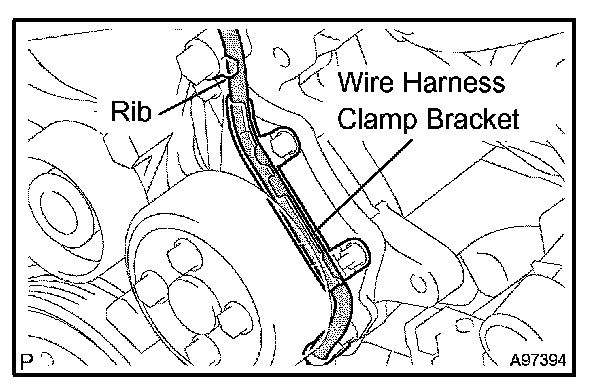

b. Confirm that the wire harness of the crankshaft position sensor is secured to the wire harness clamp bracket through the back of the rib of the timing chain cover.

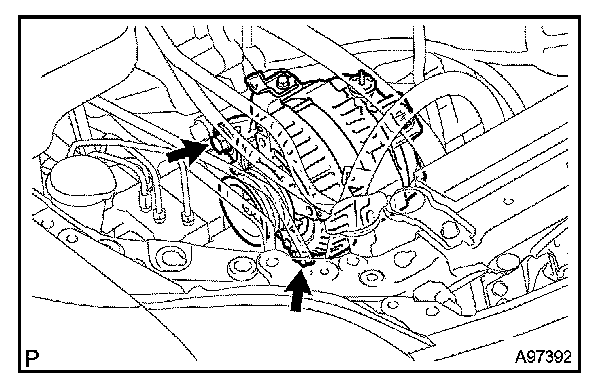

c. Install the generator with the 2 bolts.

Torque:
21 N.m (215 kgf.cm, 16 ft.lbf) for bolt A
52 N.m (530 kgf.cm, 38 ft.lbf) for bolt B

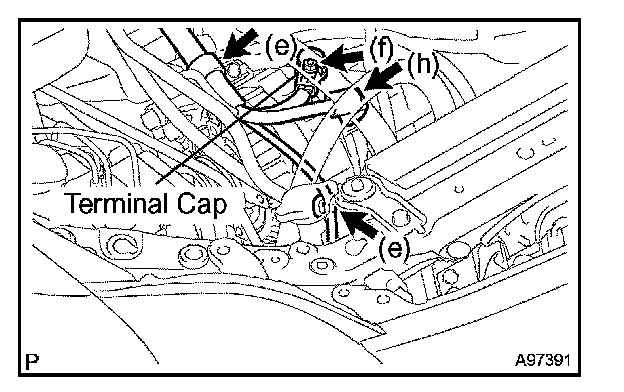

d. Install the 2 wire harness clamps.
e. Connect the generator wire with the nut.

Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)

f. Install the terminal cap.
g. Connect the generator connector.

6. INSTALL FAN AND GENERATOR V BELT

SST 09249-63010

7. INSTALL FRONT FENDER APRON SEAL RH

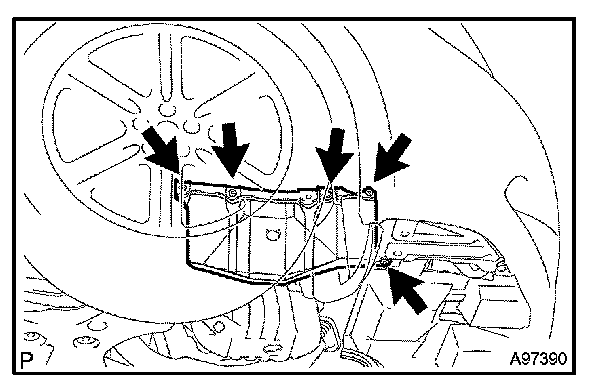

a. Install the front fender apron seal with the 3 clips and 2 screws.

8. CONNECT BATTERY NEGATIVE TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
