Component Inspection

CLUTCH START SWITCH ASSEMBLY (MTM)
INSPECTION





1. INSPECT CLUTCH START SWITCH ASSEMBLY

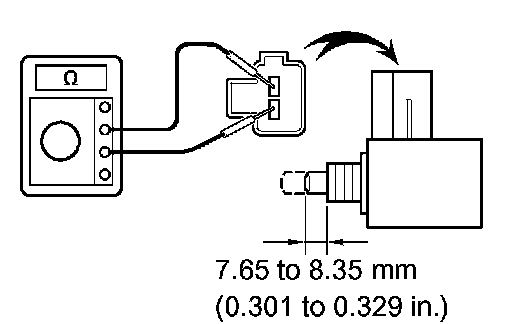

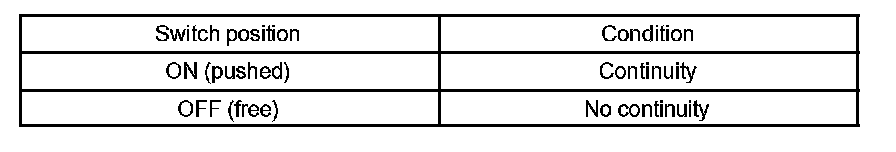

a. Check the continuity between the terminals when the switch is ON and OFF.
