Electrical Diagrams

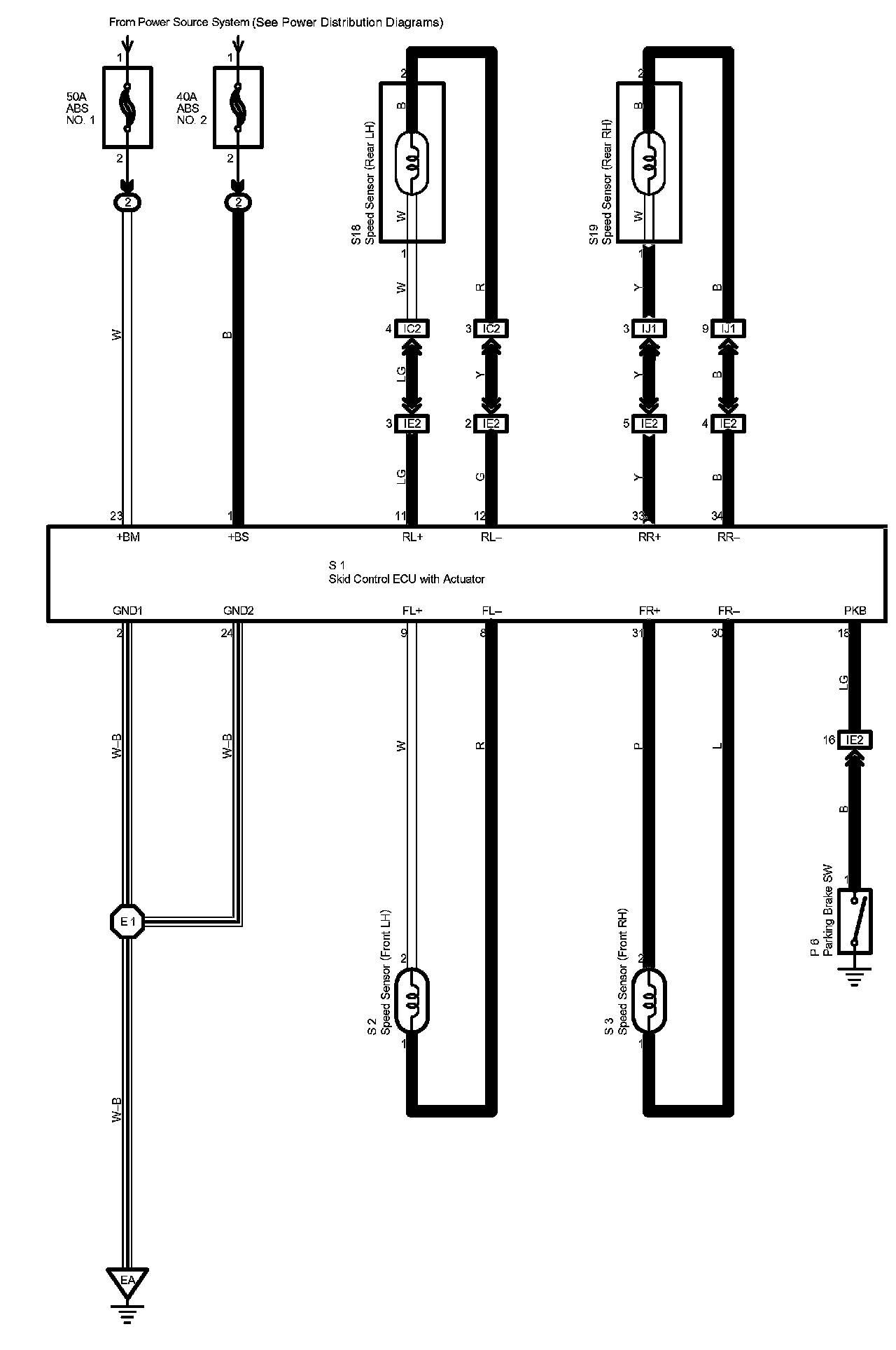

VSS to Skid Control ECU:






NOTE: For speed sensor to ECM wiring diagram, refer to Engine Control Part 6. Electrical Diagrams
