Clutch Switch: Service and Repair

CLUTCH START SWITCH ASSEMBLY

REPLACEMENT

HINT: Installation is in the reverse order of removal.

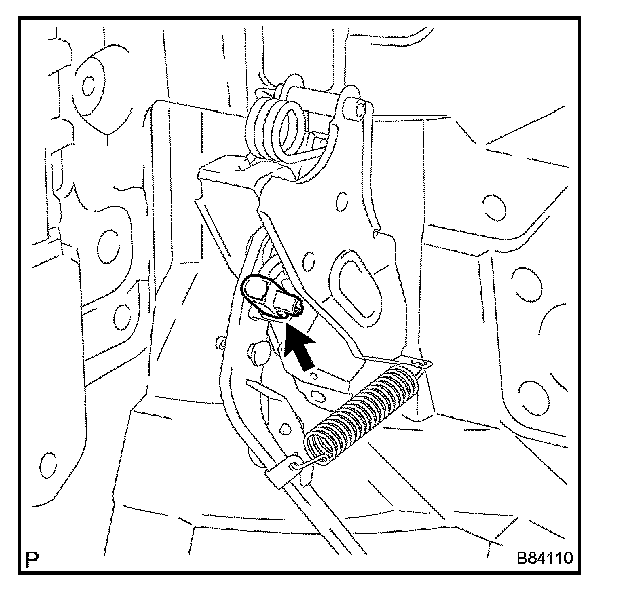

1. REMOVE CLUTCH START SWITCH ASSEMBLY
a. Disconnect the connector.
b. Remove the nut, then the clutch start switch assembly.
