DTC Check/Clear

DTC CHECK/CLEAR

SUPPLEMENTAL RESTRAINT SYSTEM DTC CHECK (USING HAND-HELD TESTER)




a. Check the DTCs.

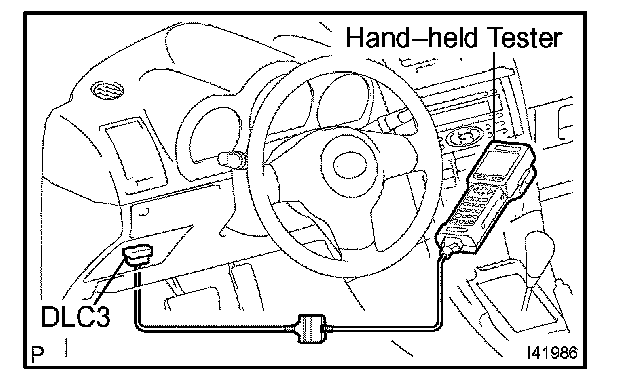

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Check the DTCs.

HINT: Refer to the hand-held tester operator's manual for further details.

b. Clear the DTCs.
1. Connect the hand held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs.

HINT: Refer to the hand held tester operator's manual for further details.
