Deployment Condition

DEPLOYMENT CONDITION

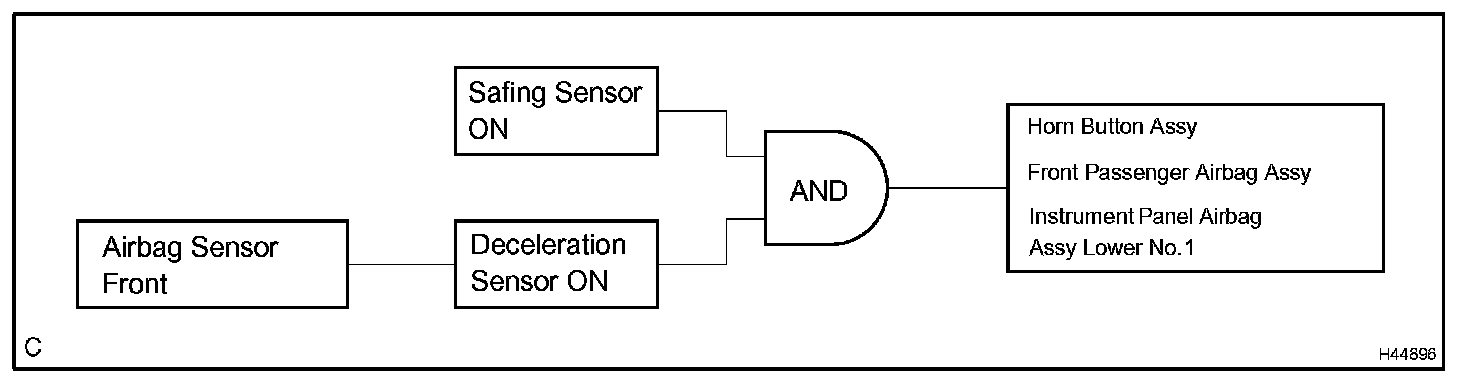

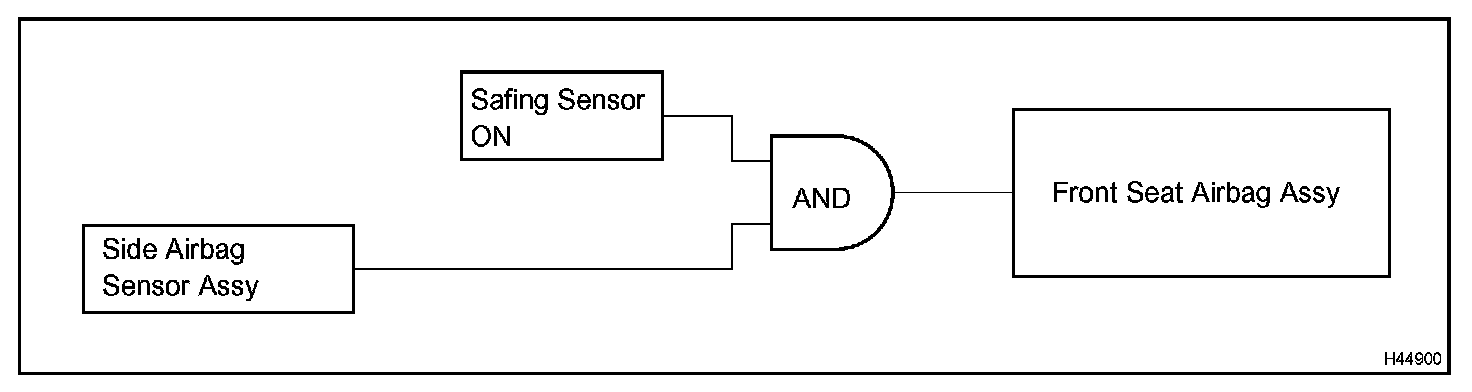

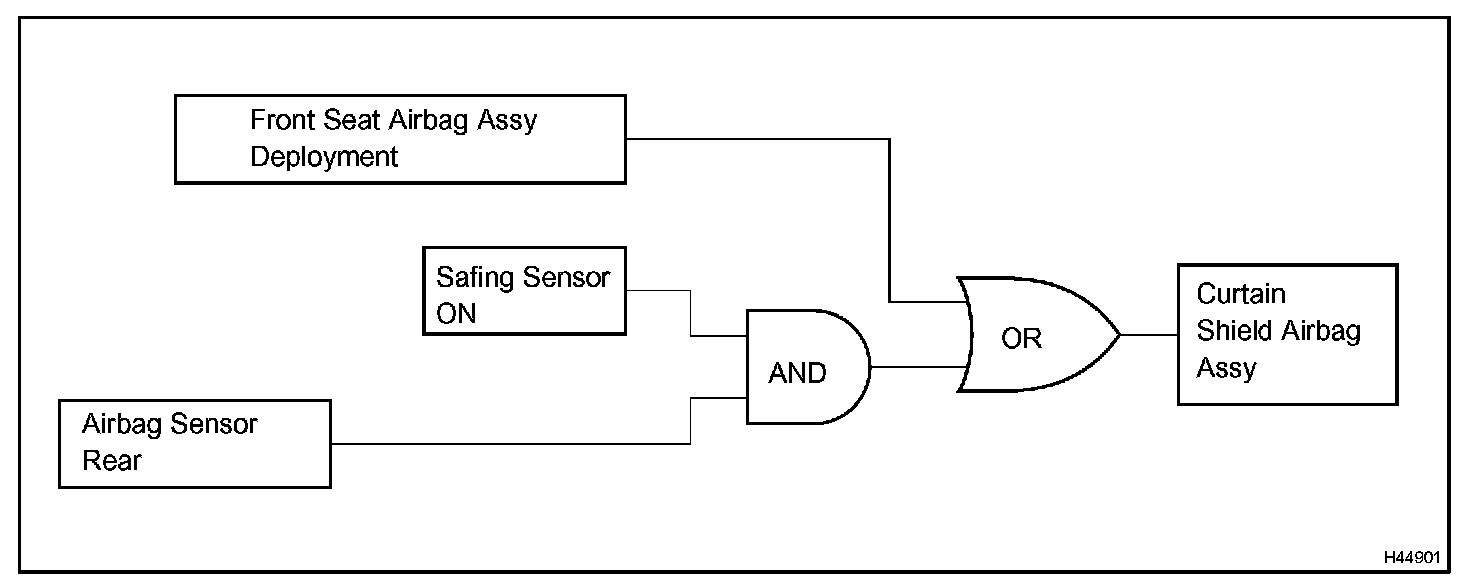

When the vehicle collides and the shock is greater than the specified value, the SRS is activated automatically. The airbag sensor assembly center includes the safing sensor and deceleration sensor. The safing sensor was designed to be turned on at a smaller deceleration rate than the deceleration sensor. The deceleration sensor determines whether or not ignition is necessary based on signals from the airbag sensor front. Current flows to the squibs to deploy the SRS when the conditions shown in the illustrations are met.
