Curtain Shield Air Bag Assy LH Replacement

Curtain Shield Air Bag Assy LH:

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. PRECAUTION
Refer to Air Bag Systems; Service Precautions.
2. DISCONNECT BATTERY NEGATIVE TERMINAL

CAUTION: After removing the terminal, wait for at least 90 seconds before starting the operation.

3. REMOVE ROOF HEADLINING ASSEMBLY
4. REMOVE CURTAIN SHIELD AIR BAG ASSEMBLY LH
a. Disconnect the connector from the curtain shield airbag assembly LH.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

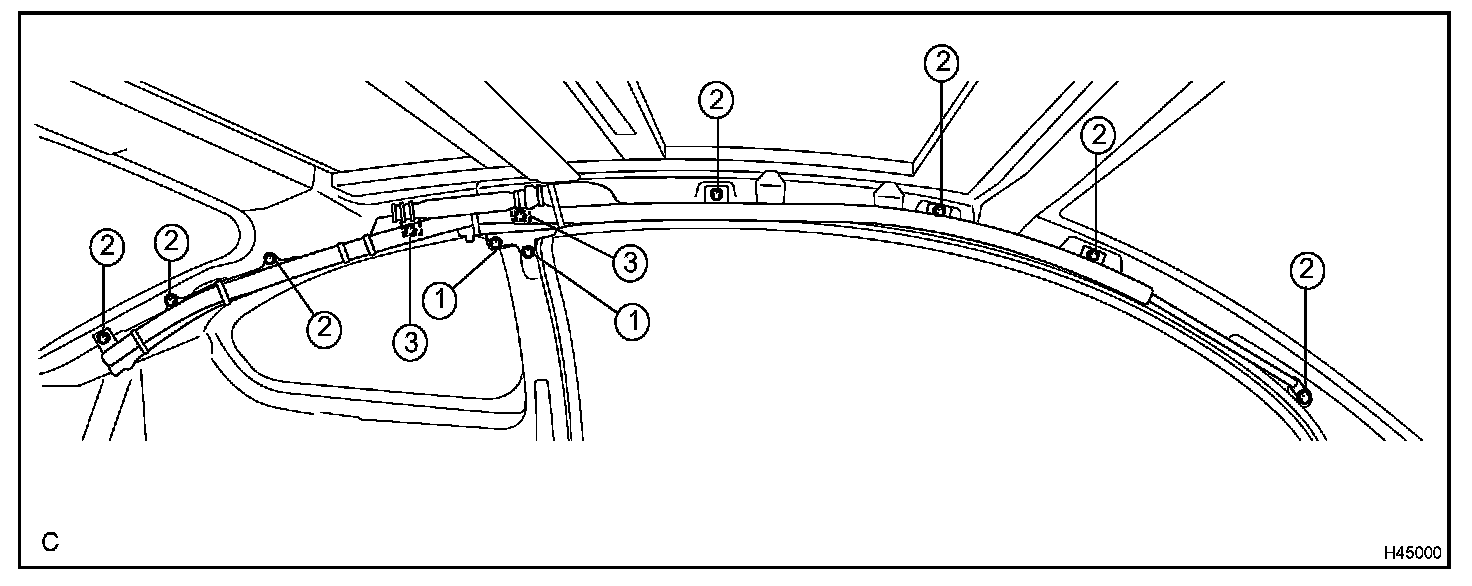

b. Remove the 11 bolts and the curtain shield airbag assembly LH.

5. INSPECT CURTAIN SHIELD AIR BAG ASSEMBLY LH
6. INSTALL CURTAIN SHIELD AIR BAG ASSEMBLY LH

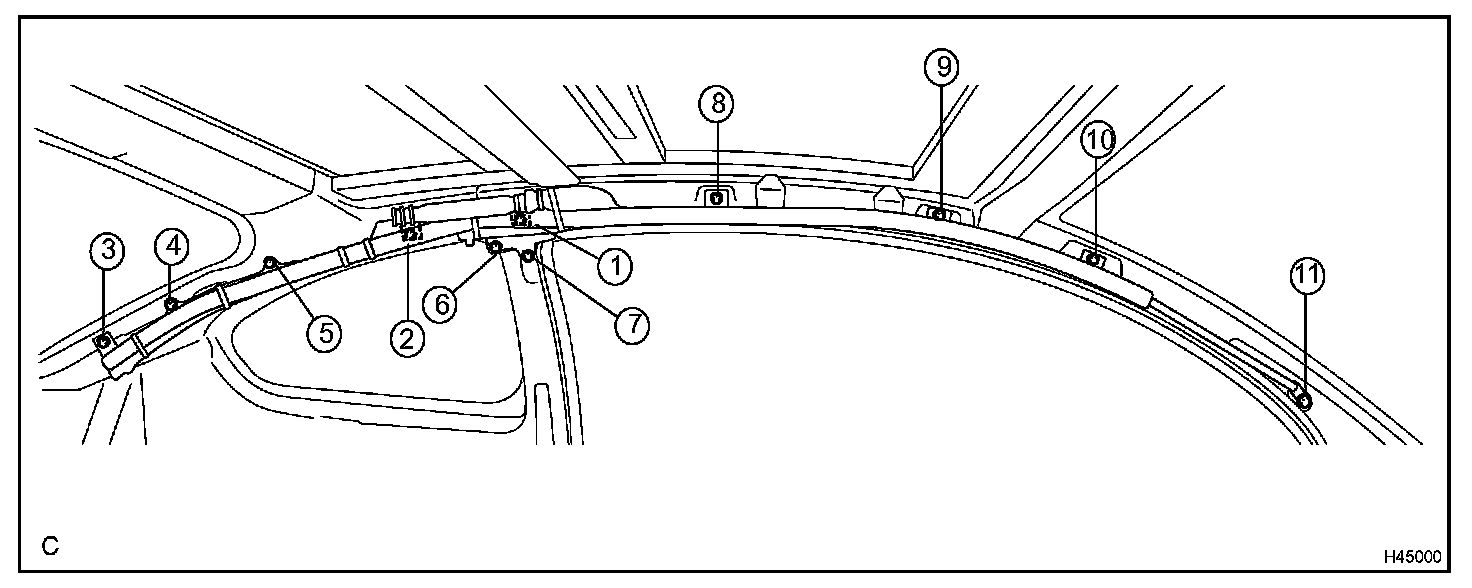

a. Install the curtain shield airbag assembly LH with the 11 bolts.

Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)




b. Connect the connector to the curtain shield airbag assembly LH.

NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.

7. INSTALL ROOF HEADLINING ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL
When disconnecting the battery terminal, initialize the following systems after the terminal is reconnected.
- Power window control system
- Sliding roof system

9. INSPECT SRS WARNING LIGHT
