Audible Warning Device Control Module: Testing and Inspection

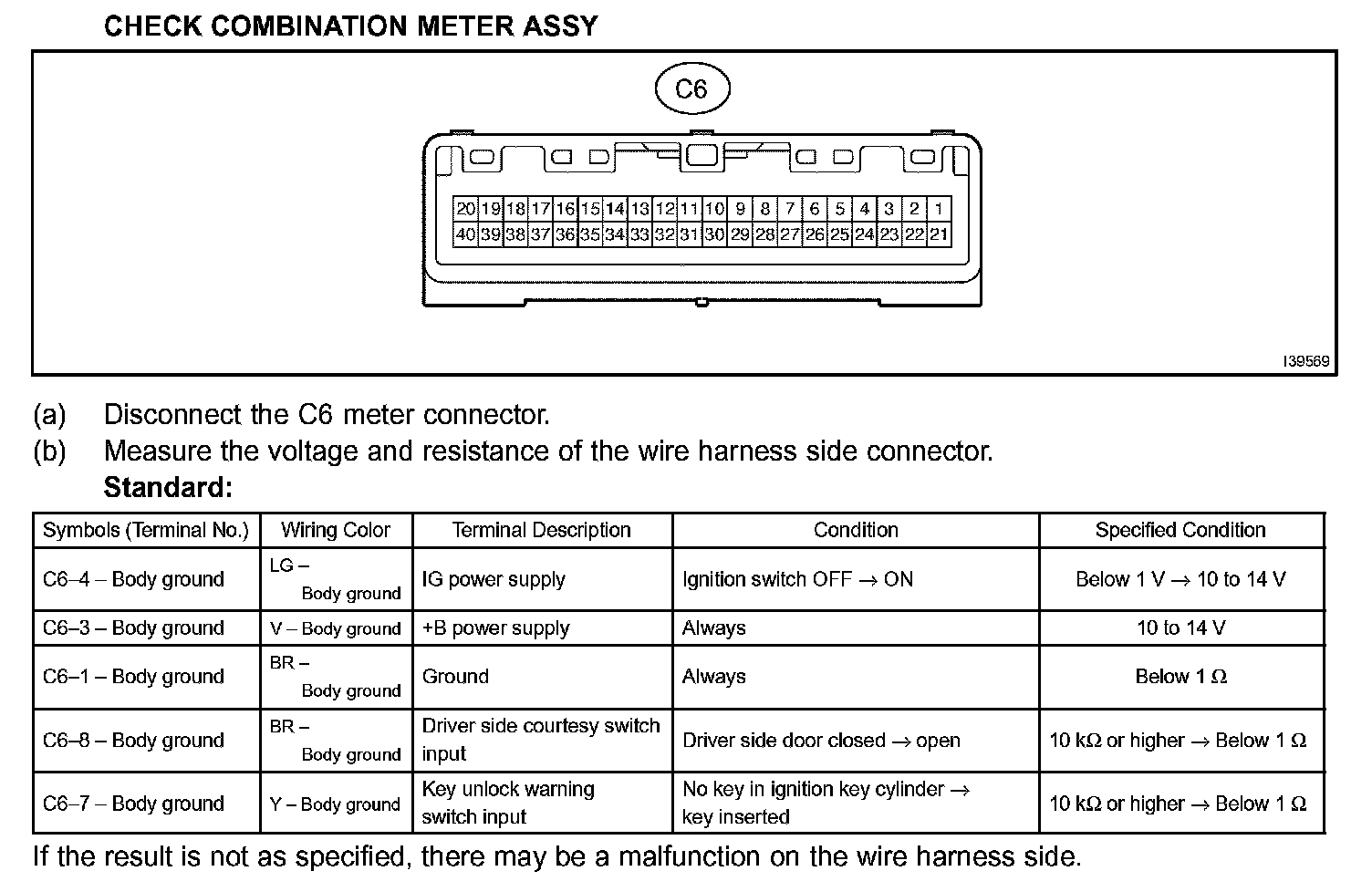

Terminals Of Control Module/Pinouts - Check Combination Meter Assy:
