Air Fuel Ratio Sensor

REPLACEMENT

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.
- Power window control system
- Sliding roof system

1. DISCONNECT BATTERY NEGATIVE TERMINAL




2. REMOVE AIR FUEL RATIO SENSOR

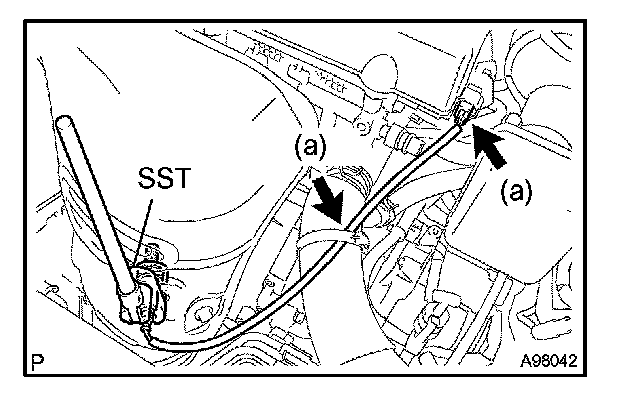

a. Disconnect the connector and clamp.
b. Using SST, remove the air fuel ratio sensor.

SST 09224-00010




3. INSTALL AIR FUEL RATIO SENSOR
a. Using SST, install the air fuel ratio sensor.

SST 09224-00010

Torque: 44 N.m (449 kgf.cm, 32 ft.lbf)

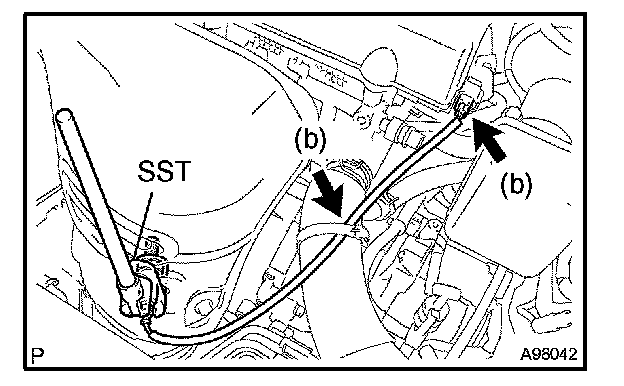

b. Connect the connector and clamp.

4. CONNECT BATTERY NEGATIVE TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

5. CHECK FOR EXHAUST GAS LEAKAGE
