Accelerator Pedal: Service and Repair

ACCELERATOR PEDAL ASSEMBLY

REPLACEMENT

NOTE: When disconnecting the battery terminal, initialize the following system after the terminal is reconnected.
- Power window control system
- Sliding roof system

1. DISCONNECT BATTERY NEGATIVE TERMINAL

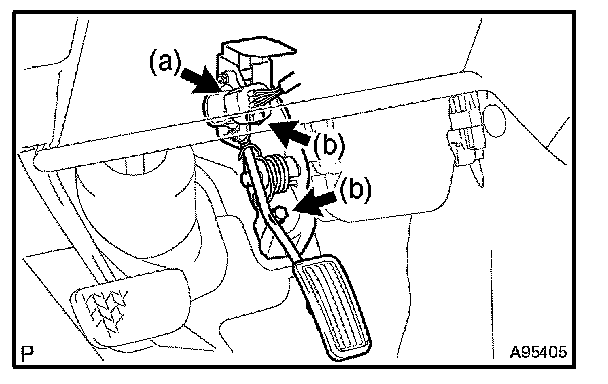

2. REMOVE ACCELERATOR PEDAL ASSEMBLY
a. Disconnect the accelerator position sensor connector.
b. Remove the 2 bolts, then remove the accelerator pedal.




3. INSTALL ACCELERATOR PEDAL ASSEMBLY
a. Install the accelerator pedal with the 2 bolts.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

b. Connect the accelerator position sensor connector.

4. CONNECT BATTERY NEGATIVE TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
