Electrical - Power Systems Initialization

PRE-DELIVERY SERVICE
PD008-05

Title:
POWER SYSTEM INITIALIZATION
DURING PDS

Models:
'05 Applicable Toyota & Scion Models

January 27, 2005

Introduction

The following is a list of the vehicle systems (Power Window Sliding Roof Tire Pressure Warning System etc.) that need initialization during Pre-Delivery Service (PDS) and the TSB numbers containing details on initializing each specific system.

NOTE
Items in RED also need to be initialized any time the battery has been disconnected.

Applicable Vehicles

^ 2005 model year Applicable Toyota and Scion vehicles listed in the following table.

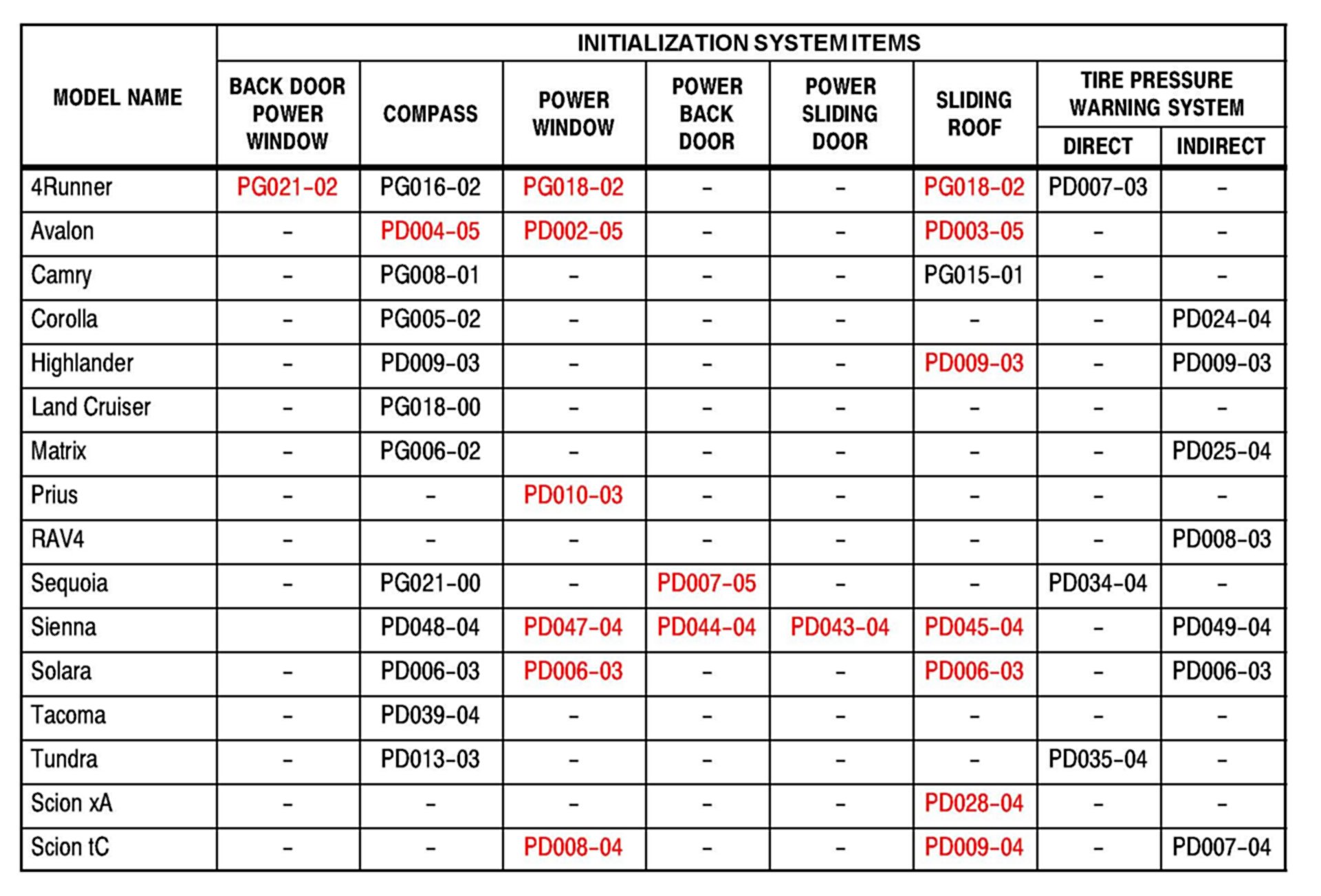

'05 MY Power System Initialization Table

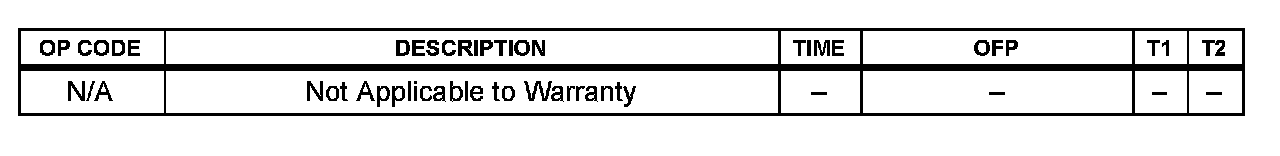

Warranty Information
