Initial Inspection and Diagnostic Overview

HOW TO PROCEED WITH TROUBLESHOOTING

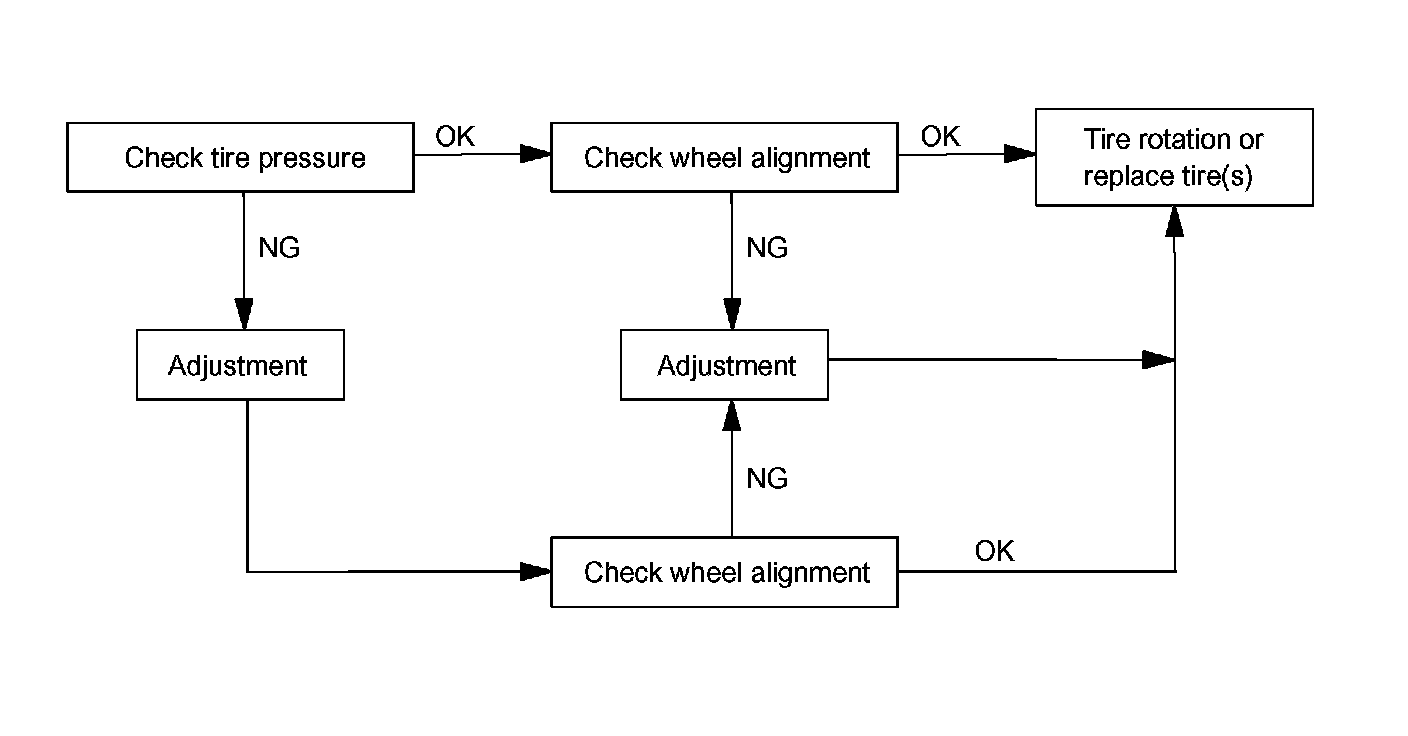

1. VEHICLE PULLING DIAGNOSIS

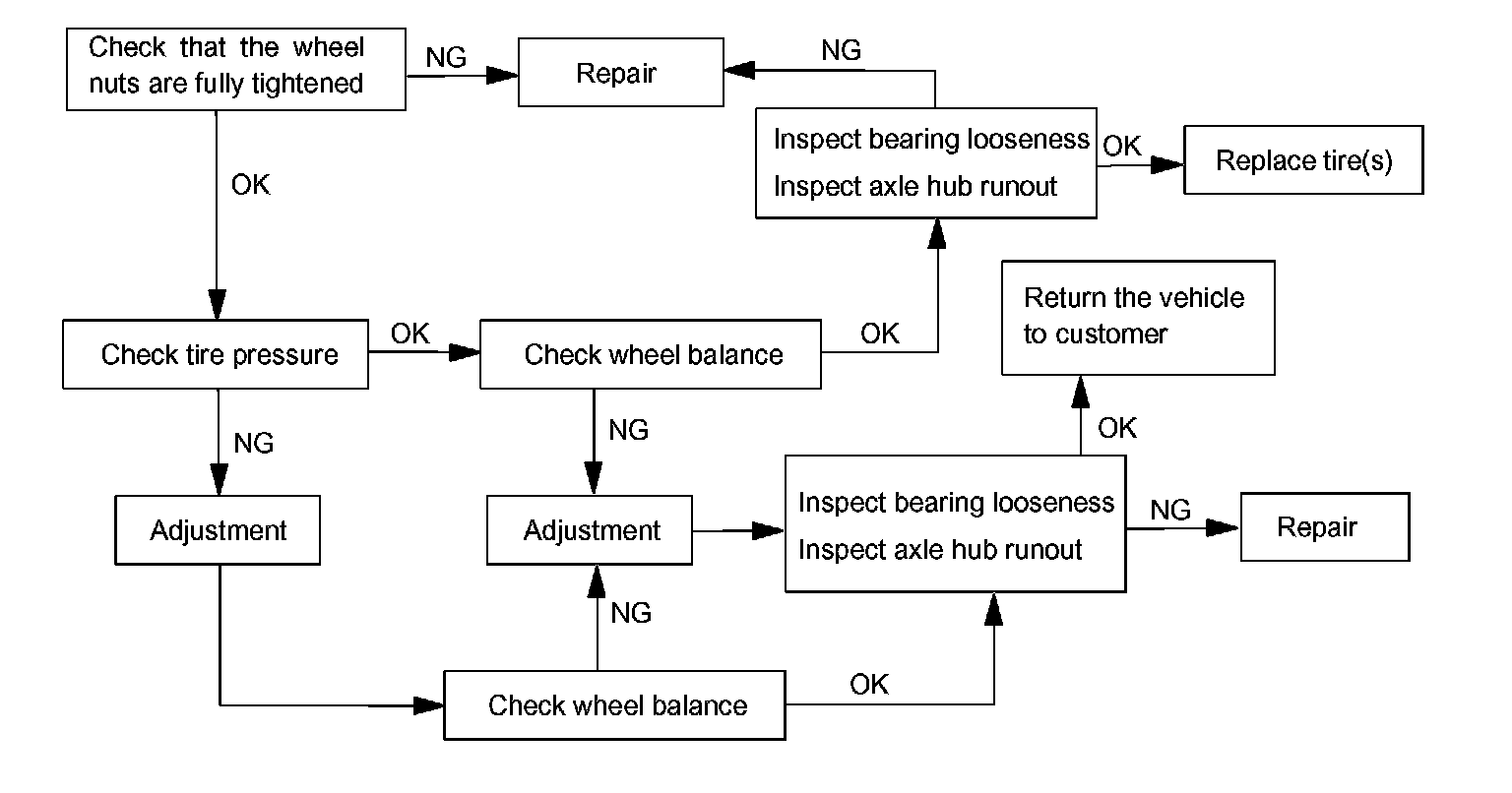

2. DIAGNOSIS OF TIRE VIBRATION





3. DIAGNOSIS OF IRREGULAR TIRE WEAR
