Brake Bleeding: Service and Repair
BRAKE FLUID BLEEDINGNOTICE: Wash brake fluid off immediately if it adheres to any painted surface.
HINT: If any work is performed on the brake system or if air in the brake lines is suspected, bleed the air out of the brake system.

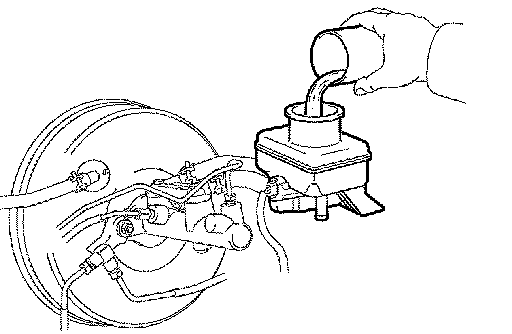

1. FILL RESERVOIR WITH BRAKE FLUID
Fluid: SAE J1703 or FMVSS No. 116 DOT3
2. BLEED MASTER CYLINDER
HINT: If the master cylinder has been disassembled or if the reserve becomes empty, bleed the air out of the master cylinder.
a. Using SST, disconnect the brake lines from the master cylinder sub-assembly.
SST 09023-00101

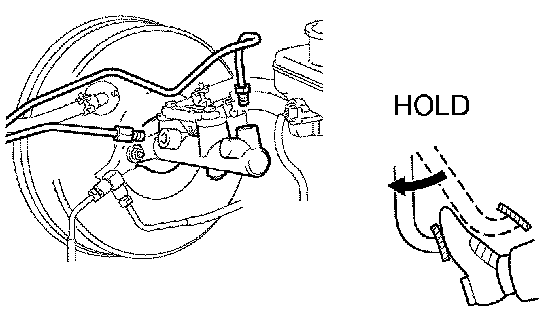

b. Slowly depress and hold the brake pedal.

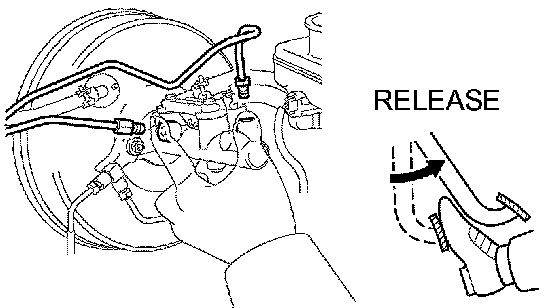

c. Cover the outer holes with your fingers, and release to brake pedal.
d. Repeat (b) and (c) 3 or 4 times.
e. Using SST, connect the brake lines to the master cylinder sub-assembly.
SST 09023-00101
Torque: 15 Nm (155 kgf-cm, 11 ft. lbs.)
3. BLEED BRAKE LINE

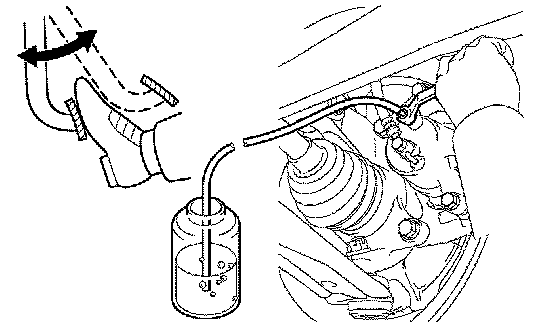

a. Connect the vinyl tube to the bleeder plug.
b. Depress the brake pedal several times, then loosen the bleeder plug with the pedal depressed.
c. When fluid stops coming out, tighten the bleeder plug, then release the brake pedal.
d. Repeat (b) and (c) until all the air in the fluid is completely bled out.
e. Tighten the bleeder plug completely.
Torque: 8.3 Nm (85 kgf-cm, 74 inch lbs.)
f. Repeat the above procedures for each wheel to bleed the air out of the brake line.

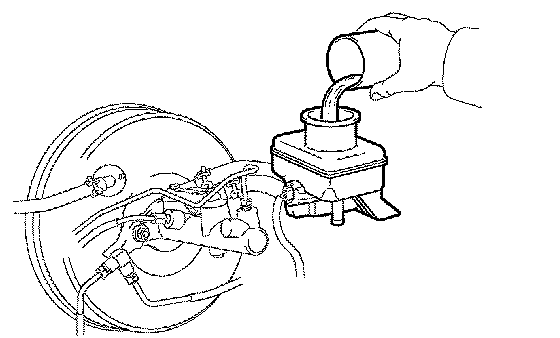

4. CHECK FLUID LEVEL IN RESERVOIR
a. Check the fluid level and add fluid if necessary.
Fluid: SAE J1703 or FMVSS No. 116 DOT3
