Steering - Vehicle Pulls/Drifts Slightly to The Right

STEERING
ST002-05

August 9, 2005

Title:
VEHICLE SLIGHT PULL/DRIFT FEELING IMPROVEMENT PROCEDURE

Models
'05 Scion tC

Introduction

Some 2005 model year Scion tC customers may experience a slight pull or drift to the right. Please use these repair methods in conjunction with the Repair Manual instructions.

Applicable Vehicles
^ 2005 model year Scion tC vehicles produced BEFORE the Production Change Effective VIN shown below.

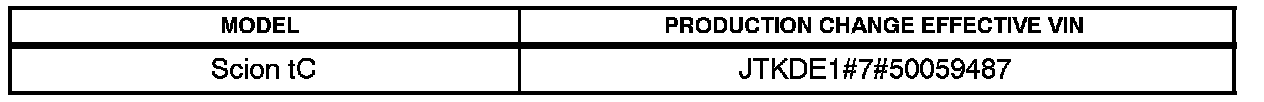

Production Change Information

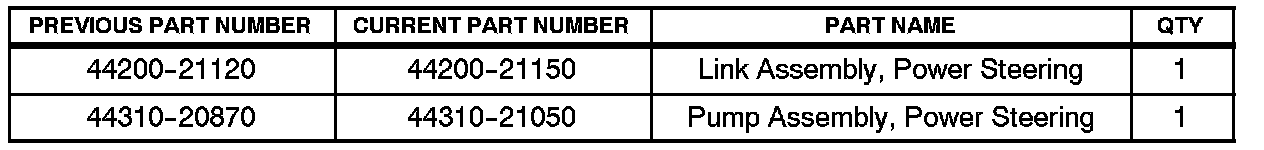

Parts Information

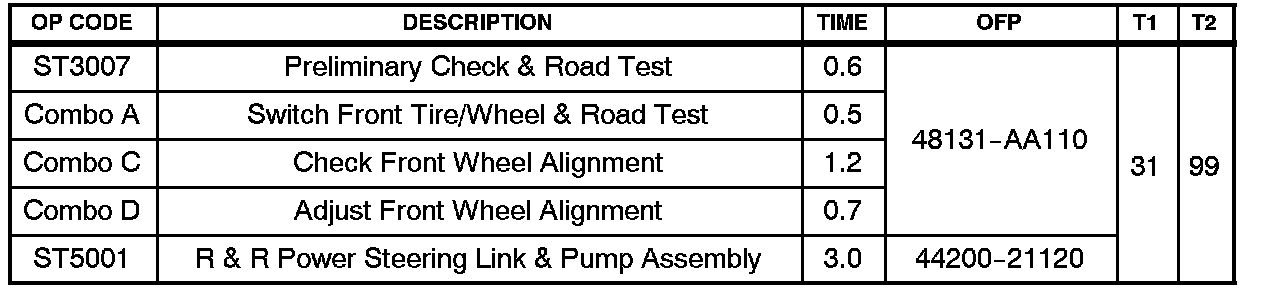

Warranty Information

Applicable Warranty:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

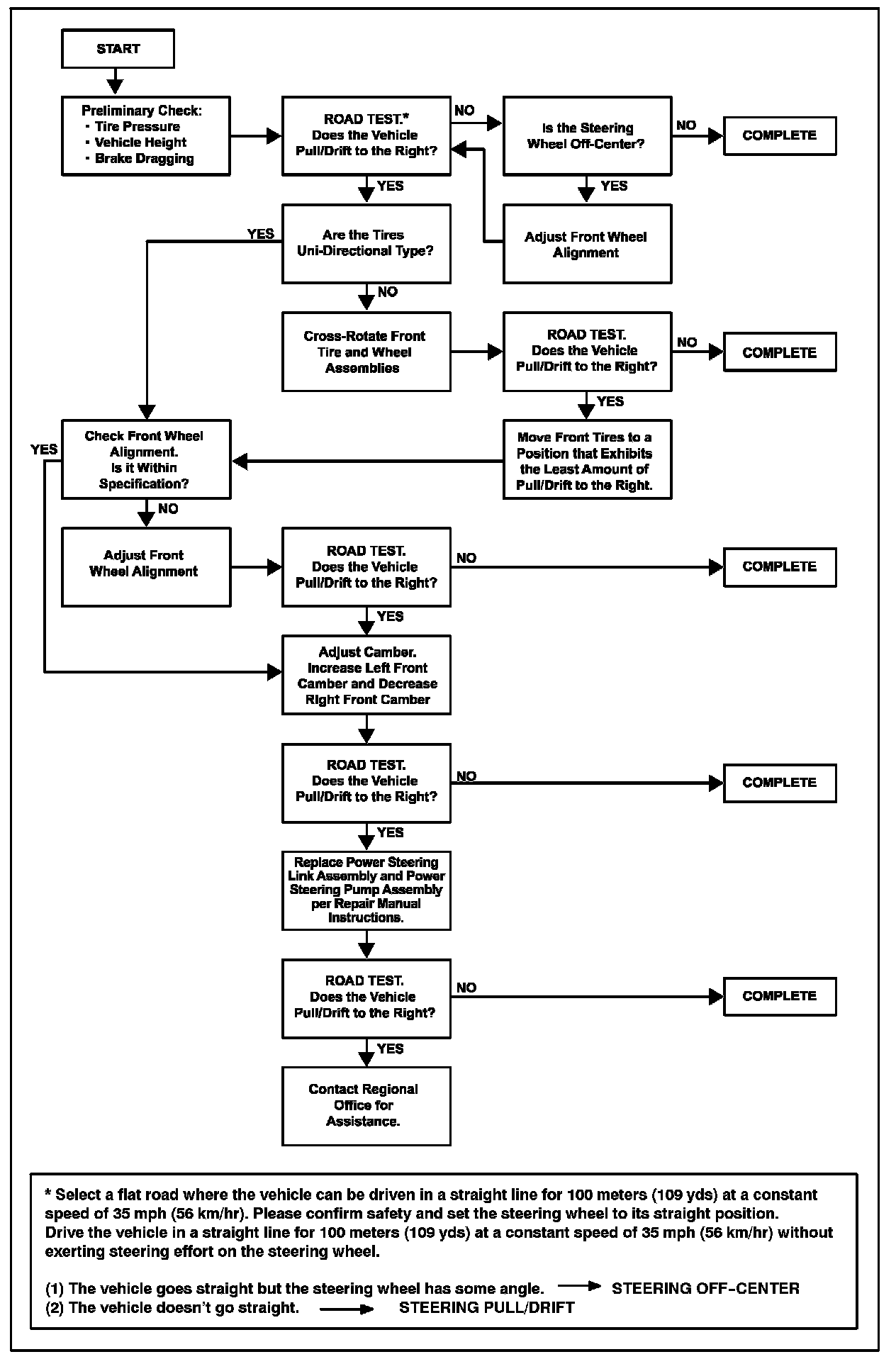

Repair Procedure Flow Chart

Repair Procedure

1. Confirm problem symptoms. Preliminary check.

A. Road test the vehicle to confirm the customer's complaint involves the vehicle pulling/drifting to the right or steering wheel off-center.

B. If steering wheel is off-center, then perform alignment and road test vehicle to confirm condition is corrected.

2. Determine if pulling/drifting is caused by tires, alignment settings, or the power steering link assembly.

Cross-rotate the left and right front tires (if tires are non-unidirectional).

3. Road test vehicle to determine if direction of pull has changed.

A. If vehicle pull/drift is eliminated, then the probable cause is tire conicity and the repair is completed.

B. If the pull/drift direction has reversed (i.e., now pulls left), then refer to TSB No. ST005-01, "Repair Manual Supplement: Vehicle Pulling to One Side."

C. If the tire rotation did not change the pulling/drifting condition, then measure and adjust the vehicle alignment to within specifications.

D. Increase left front camber and decrease right front camber.

NOTE:
Do not exceed 1 degree of cross camber. Do not exceed adjustment specification range.

E. If after performing the alignment the vehicle still exhibits a pull/drift to the right, then replace the power steering link assembly and power steering pump assembly with the part numbers given in this TSB. Information regarding 2005 model year Scion tC power steering link assembly replacement can be found below.

Replacement Instructions

^ Removal and installation of steering link assembly:

Refer to the Technical Information System (TIS), 2005 model year Scion tC Repair Manual: Power Steering: Power Steering Link Assy: Overhaul.

^ Removal and installation of vane pump assembly:

Refer to TIS, 2005 model year Scion tC Repair Manual:

Power Steering, Vane Pump Assy Overhaul.
