Turn Signals: Testing and Inspection

PROBLEM SYMPTOMS TABLE

HINT: Use the table to help determine the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

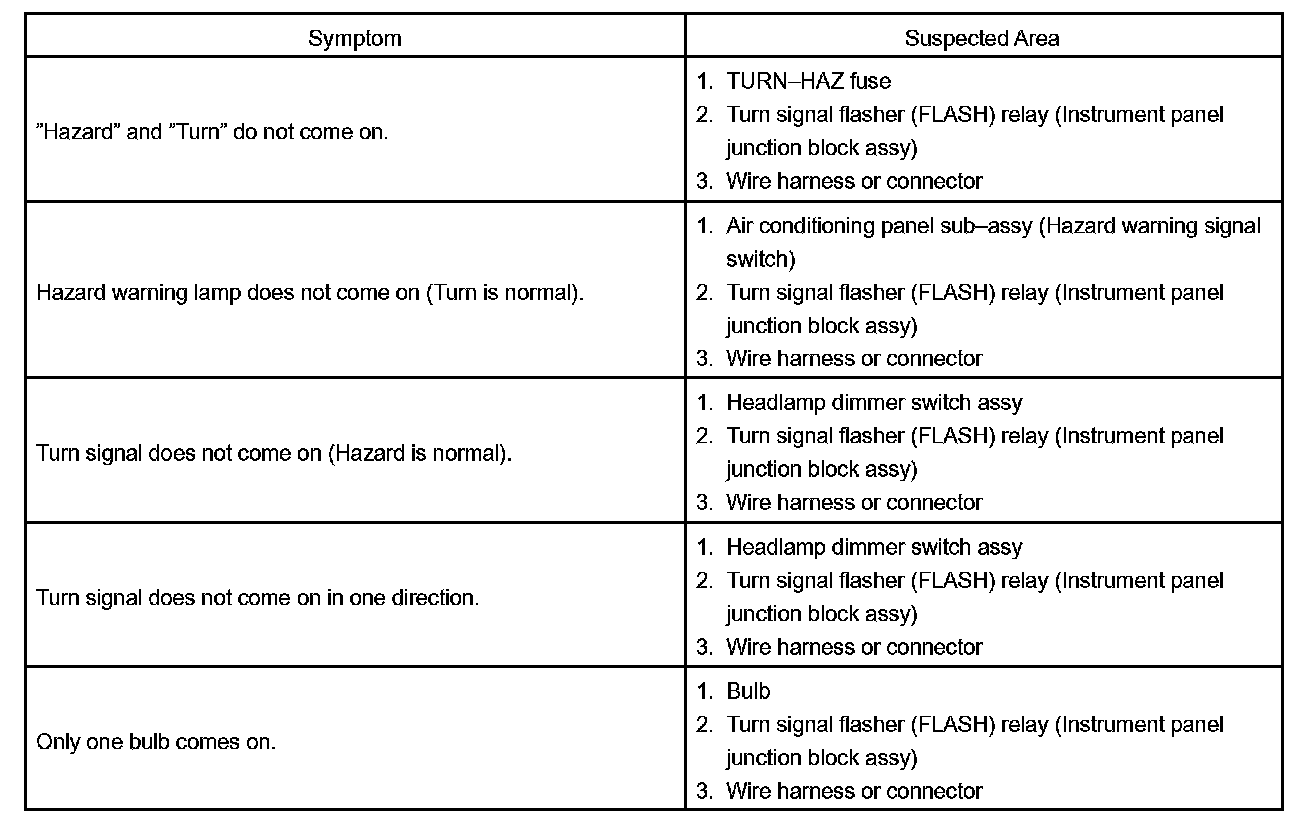

Problem Symptoms Table - Turn Signal And Hazard Warning System:

TURN SIGNAL AND HAZARD WARNING SYSTEM
