Turn Signals: Service and Repair

SIDE TURN SIGNAL LAMP LENS LH

REPLACEMENT

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH
2. REMOVE SIDE TURN SIGNAL LAMP LENS LH

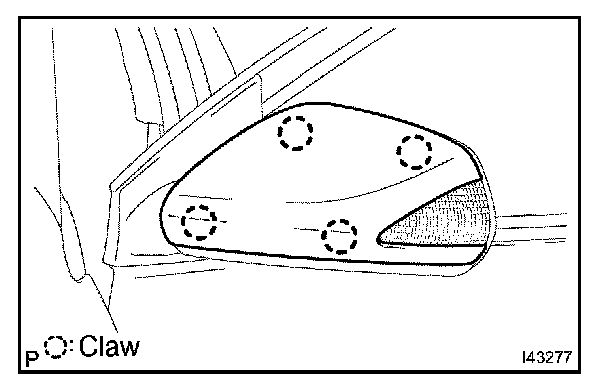

a. Remove the 4 claws and the cover.

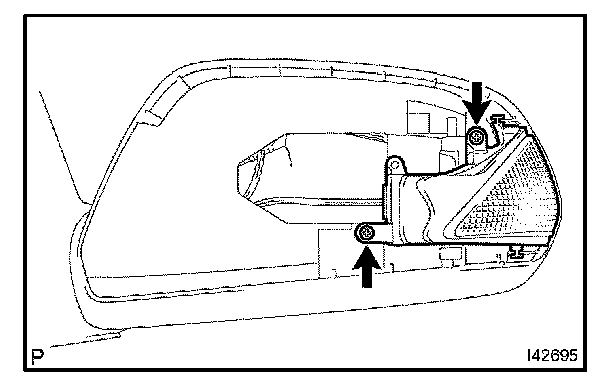

b. Remove the 2 screws.
c. Disconnect the connector and remove the side turn signal lamp lens LH.
