Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview
1.

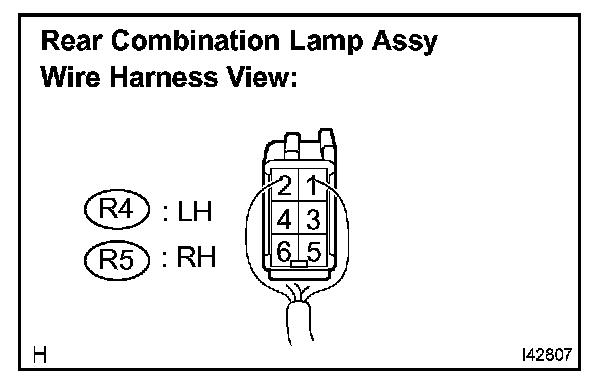

INSPECT REAR COMBINATION LAMP ASSEMBLY
a.

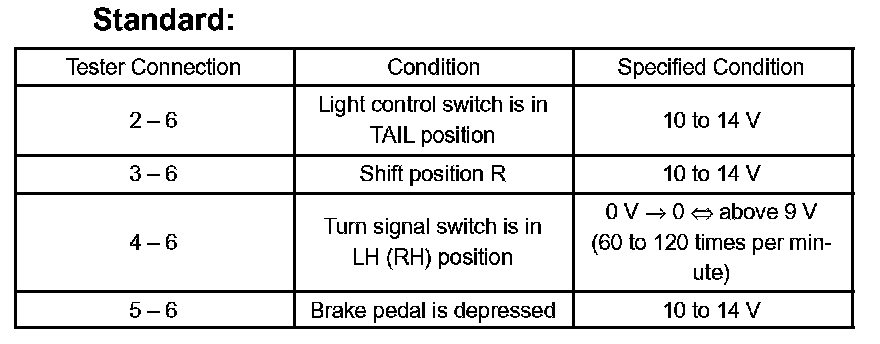

Measure the voltage according to the values in the table.
