Horn: Service and Repair
HORN ASSEMBLYREPLACEMENT

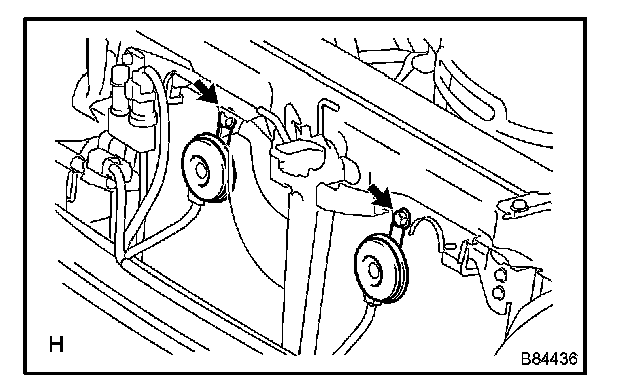

1. REMOVE HIGH PITCHED HORN ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt and horn.
2. REMOVE LOW PITCHED HORN ASSEMBLY
a. Disconnect the connector.
b. Remove the bolt and horn.
3. INSTALL HIGH PITCHED HORN ASSEMBLY
a. Attach the horn stay to the body panel and then install the horn with the bolt.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
b. Connect the connector.
4. INSTALL LOW PITCHED HORN ASSEMBLY
a. Attach the horn stay to the body panel and then install the horn with the bolt.
Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
b. Connect the connector.
