Procedures

LH Headlamp Assy:

REPAIR

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
- Installation is in the reverse order of removal.

1. REMOVE FRONT FENDER LINER LH
2. REMOVE FRONT FENDER LINER RH
3. REMOVE FRONT BUMPER COVER
4. REMOVE LH HEADLAMP ASSEMBLY
5. INSTALL HEADLAMP PROTECTOR RETAINER UPPER LH

HINT:
- If the installation area of the LH headlamp assembly is damaged, use the supply bracket for low-cost repair.
- Ensure that the LH headlamp assembly is not damaged.

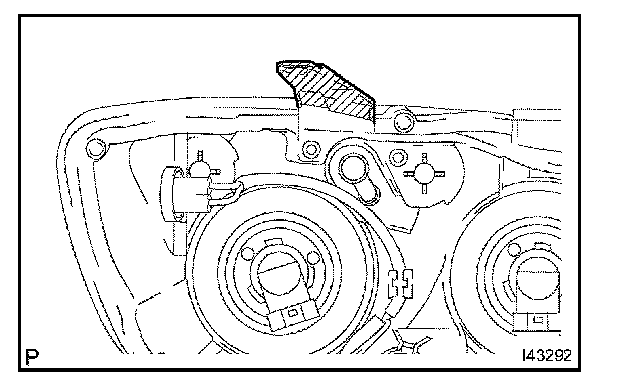

a. Cut off the part shaded in the illustration and sand smooth with sandpaper.

NOTE: After cutting off the part, place the headlamp protector retainer upper LH against the bosses and gradually file away until installation is possible.

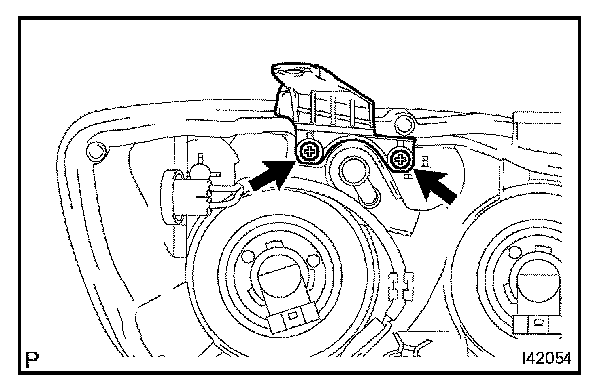

b. Install the headlamp protector retainer upper LH with the 2 screws.

6. VEHICLE PREPARATION FOR HEADLAMP AIM ADJUSTMENT
7. PREPARATION FOR HEADLAMP AIMING (Using a tester)
8. PREPARATION FOR HEADLAMP AIMING (Using a screen)
9. HEADLAMP AIMING INSPECTION
10. HEADLAMP AIMING ADJUSTMENT
