Center Mounted Brake Lamp: Service and Repair

CENTER STOP LAMP ASSEMBLY

OVERHAUL

HINT: Installation is in the reverse order of removal.

1. REMOVE BACK DOOR GARNISH CENTER
2. REMOVE BACK DOOR SIDE GARNISH LH
3. REMOVE BACK DOOR SIDE GARNISH RH
4. REMOVE BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE




5. REMOVE CENTER STOP LAMP ASSEMBLY
a. Disconnect the connector.

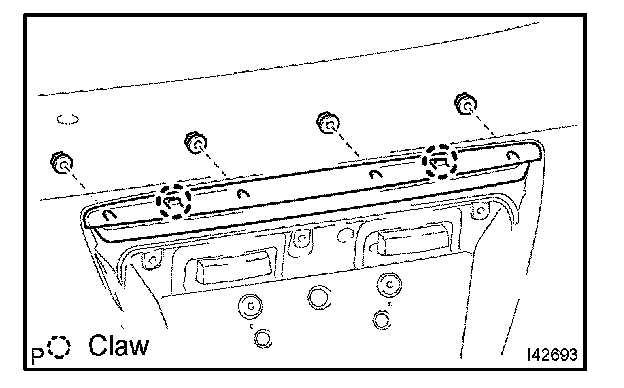

b. Remove the 4 nuts and disengage the 2 claws, and then remove the center stop lamp assembly.

6. REMOVE CENTER STOP LAMP BULB
