Combination Meter

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table - Combination Meter:

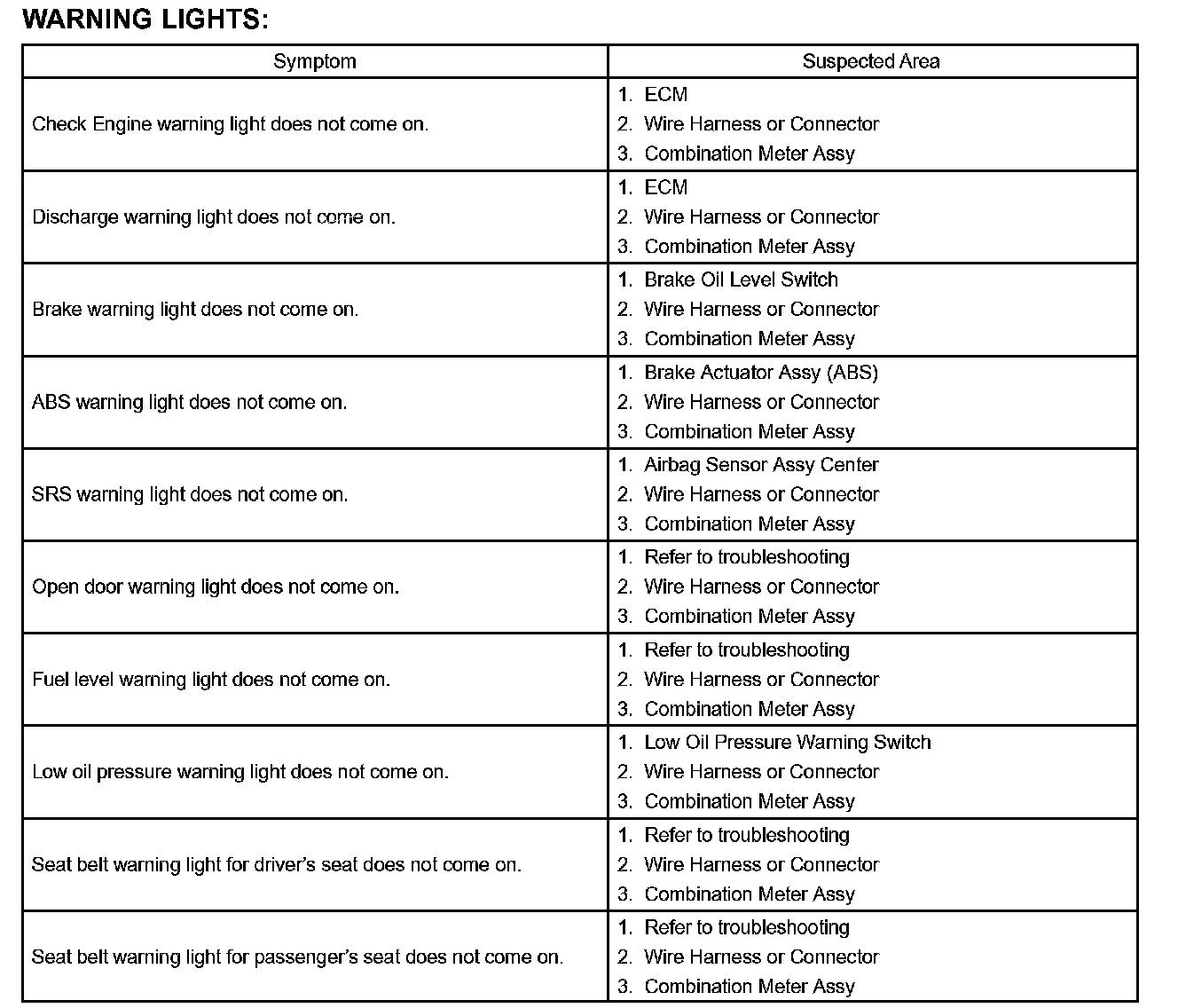

Problem Symptom Table - Warning Lights:

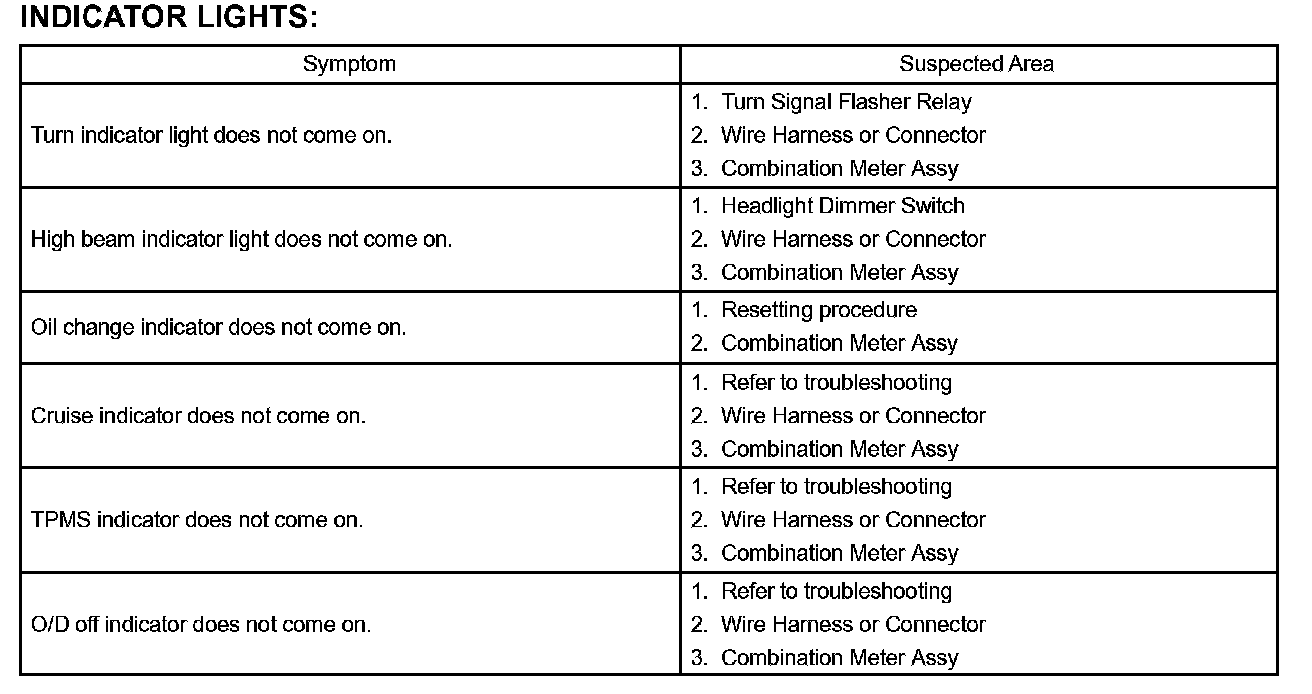

Problem Symptom Table - Indicator Lights:

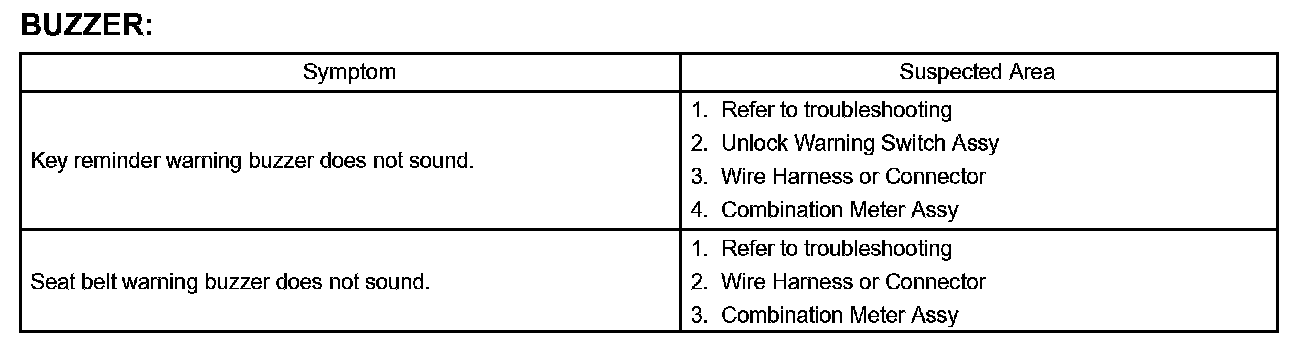

Problem Symptom Table - Buzzer:

HINT: Inspect the related "Fuse" and "Relay" before confirming the suspected area as shown in the charts.
