Scan Tool Testing and Procedures

DATA LIST

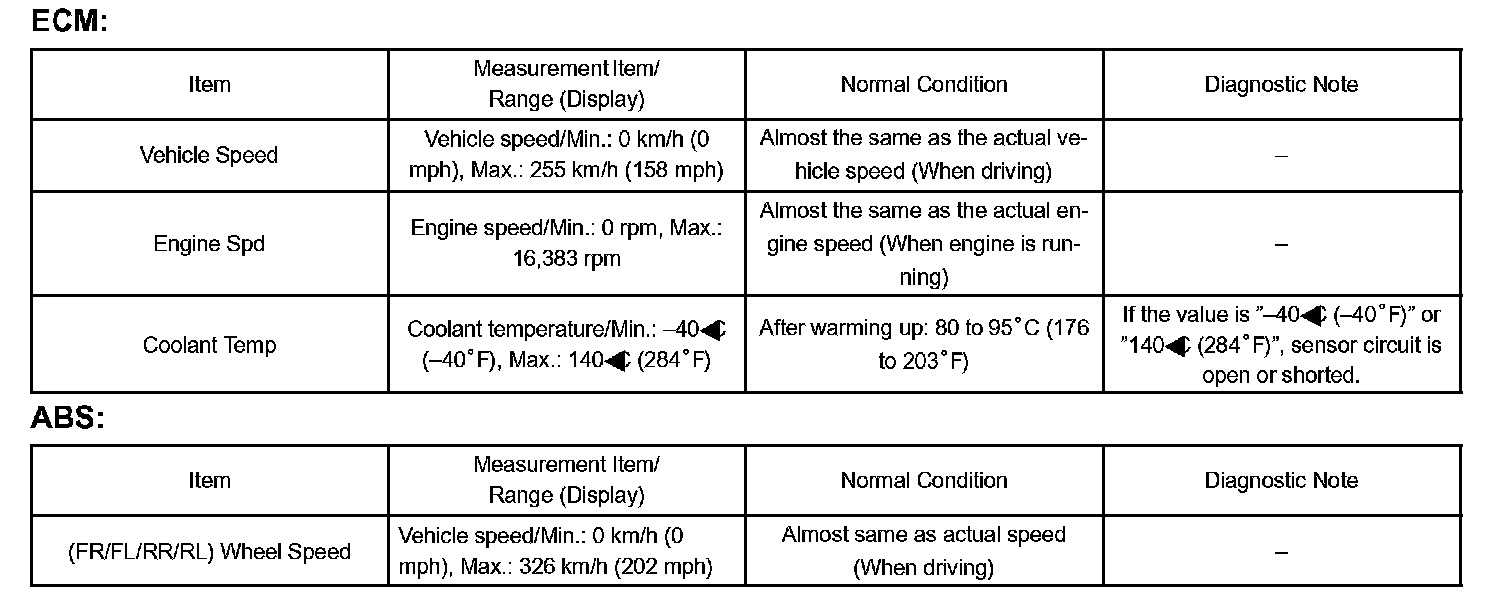

According to the DATA LIST displayed by the hand-held tester, you can read the values of the switches, sensors, actuators and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten work time.




a. Warm up the engine.
b. Turn the ignition switch off.
c. Connect the hand-held tester to the DLC3.
d. Turn the ignition switch to the ON position.
e. Operate the hand-held tester according to the steps on the display and select "DATA LIST".
