Malfunction In Water Temperature Receiver Gauge

MALFUNCTION IN WATER TEMPERATURE RECEIVER GAUGE

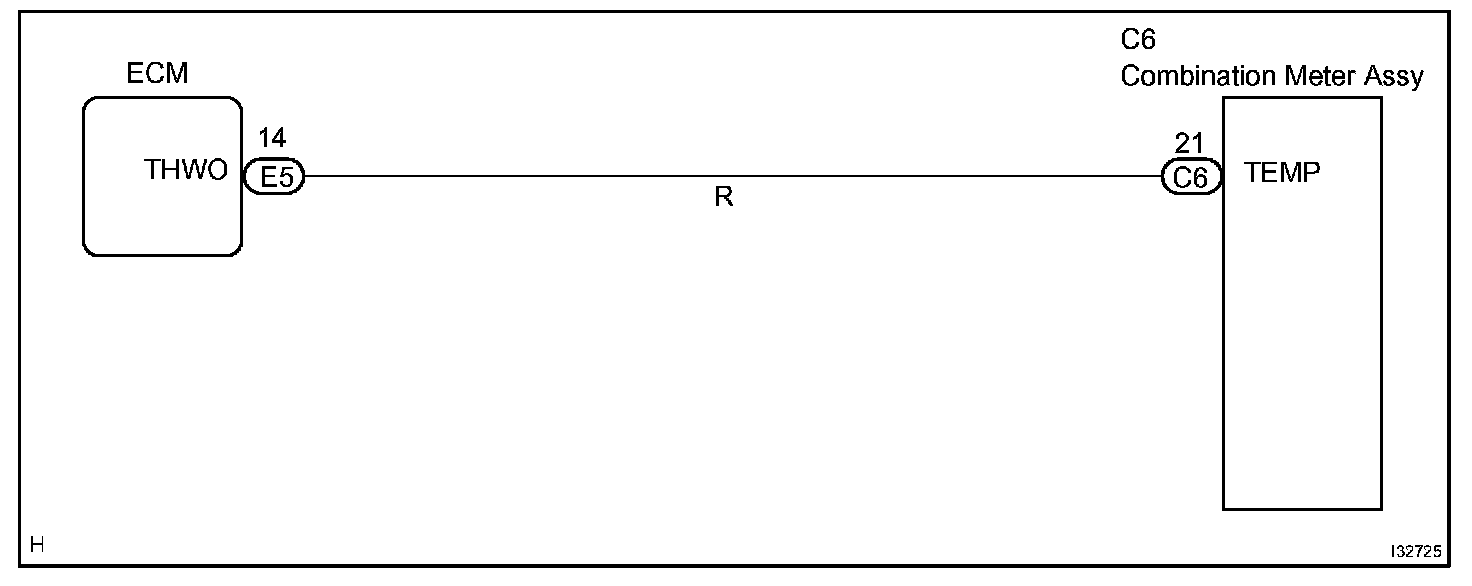

Wiring Diagram:

Step 1:

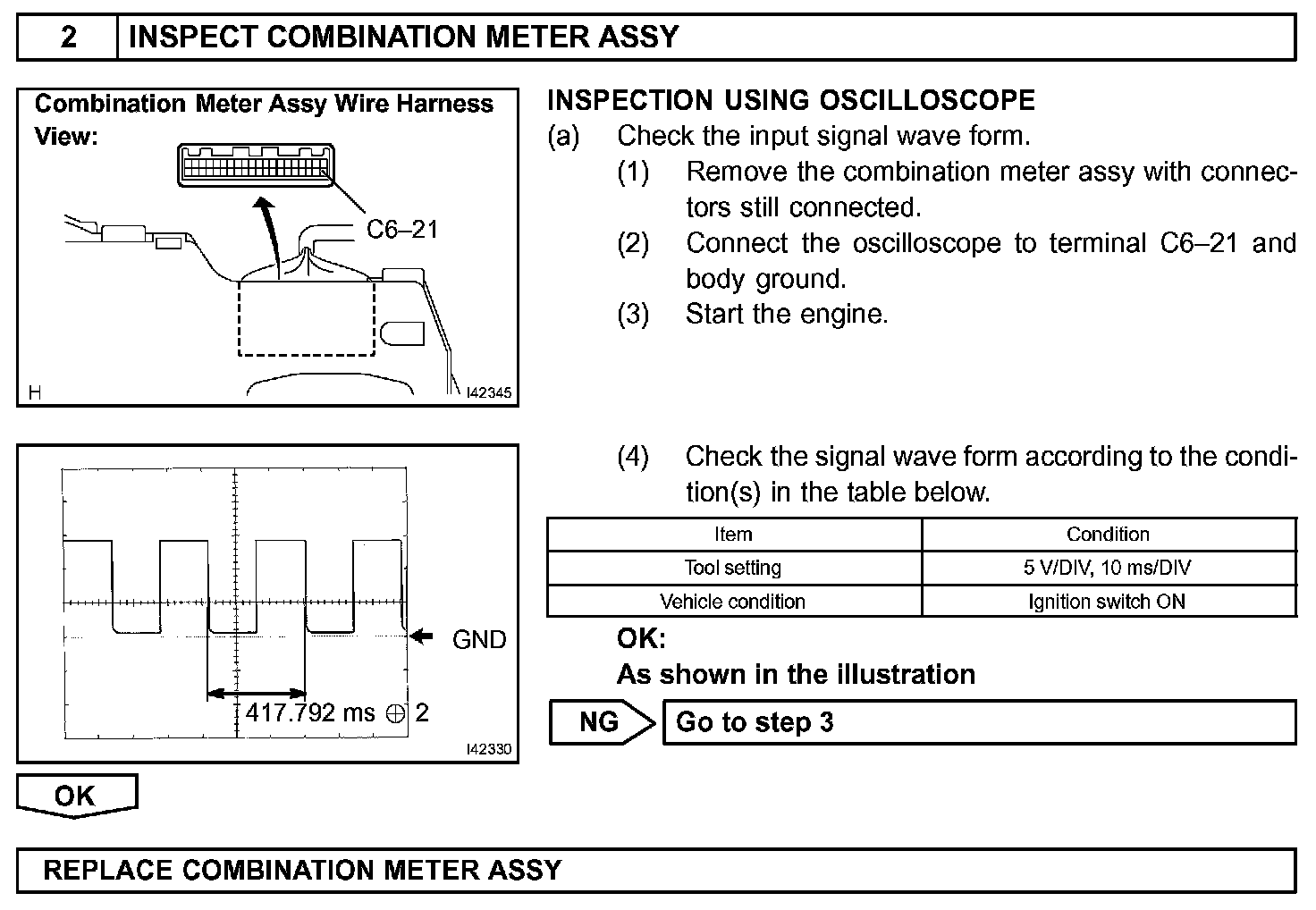

Step 2:

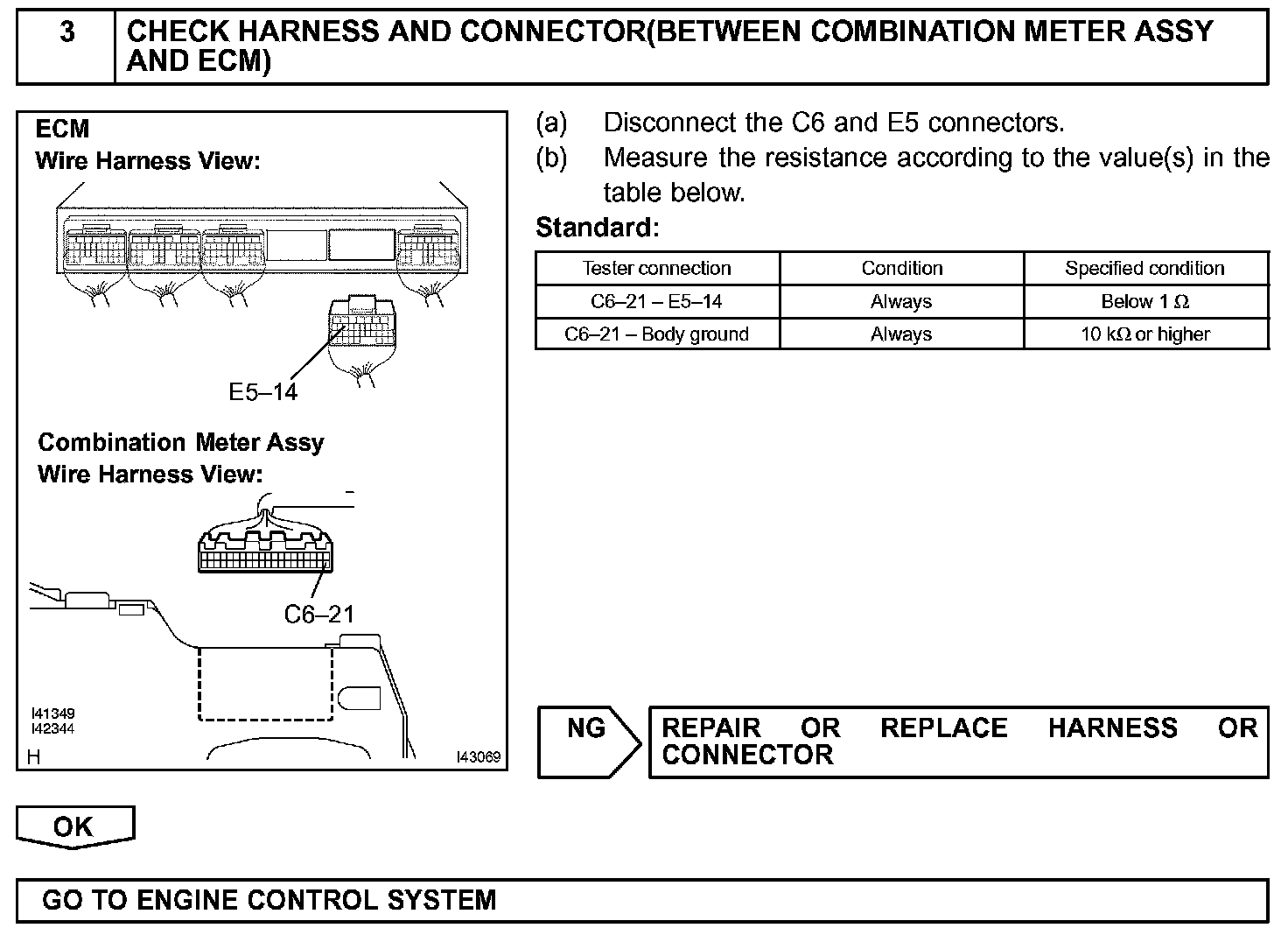

Step 3:

INSPECTION PROCEDURE

HINT: If there is an open or short in the engine coolant temperature sensor circuit, the ECM outputs DTCs. Perform troubleshooting with the "SFI System".
