Oil Pump Replacement

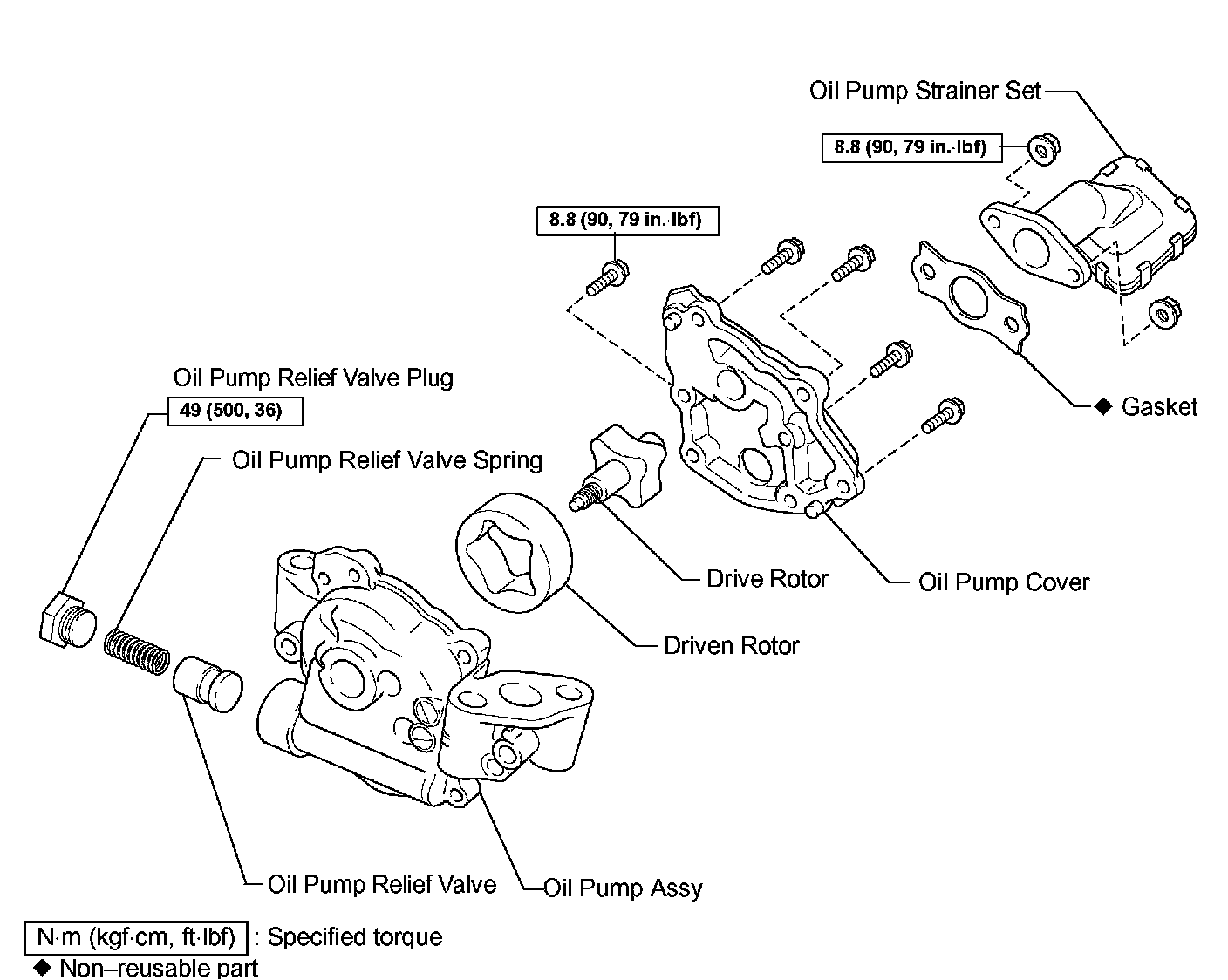

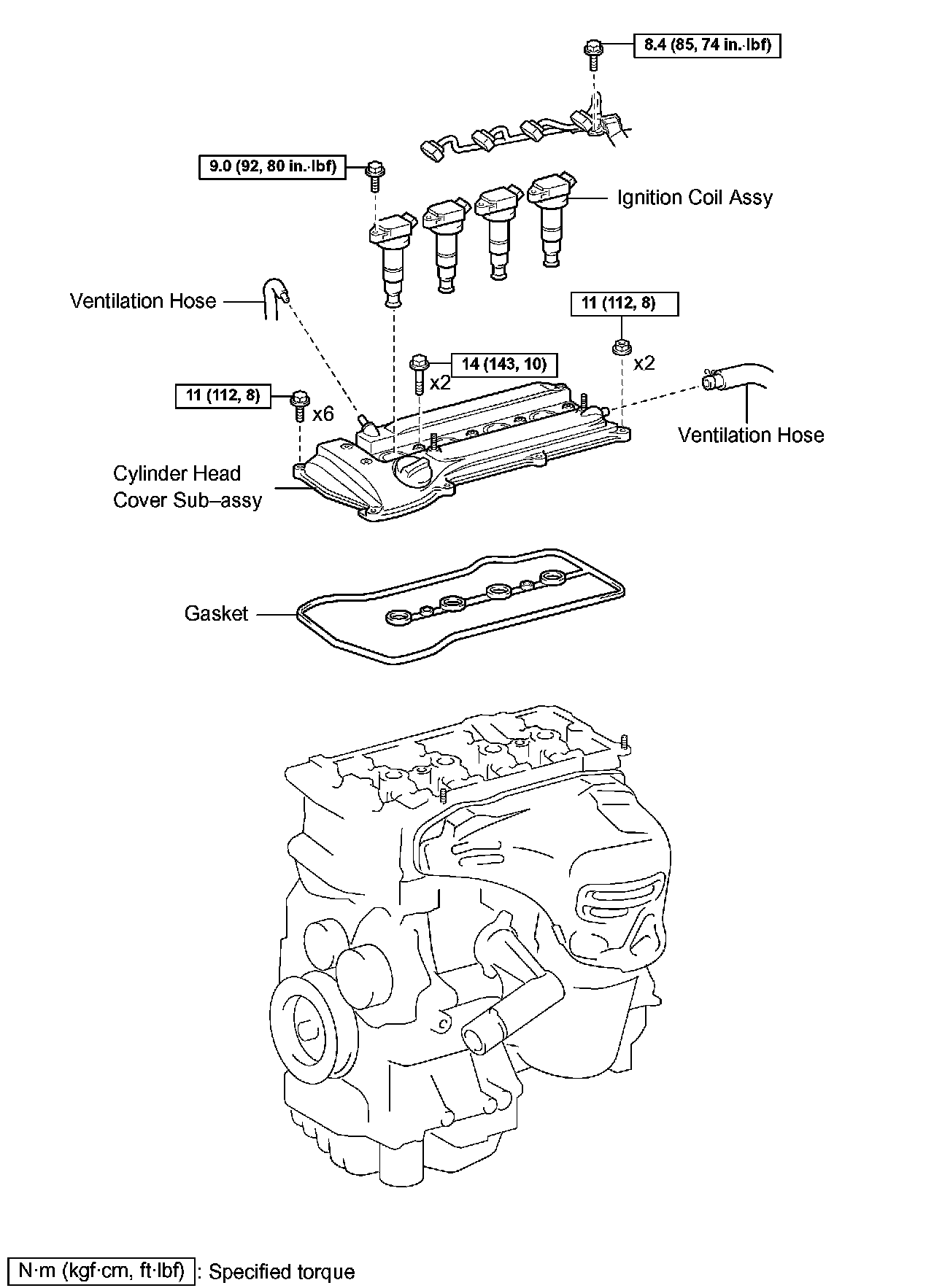

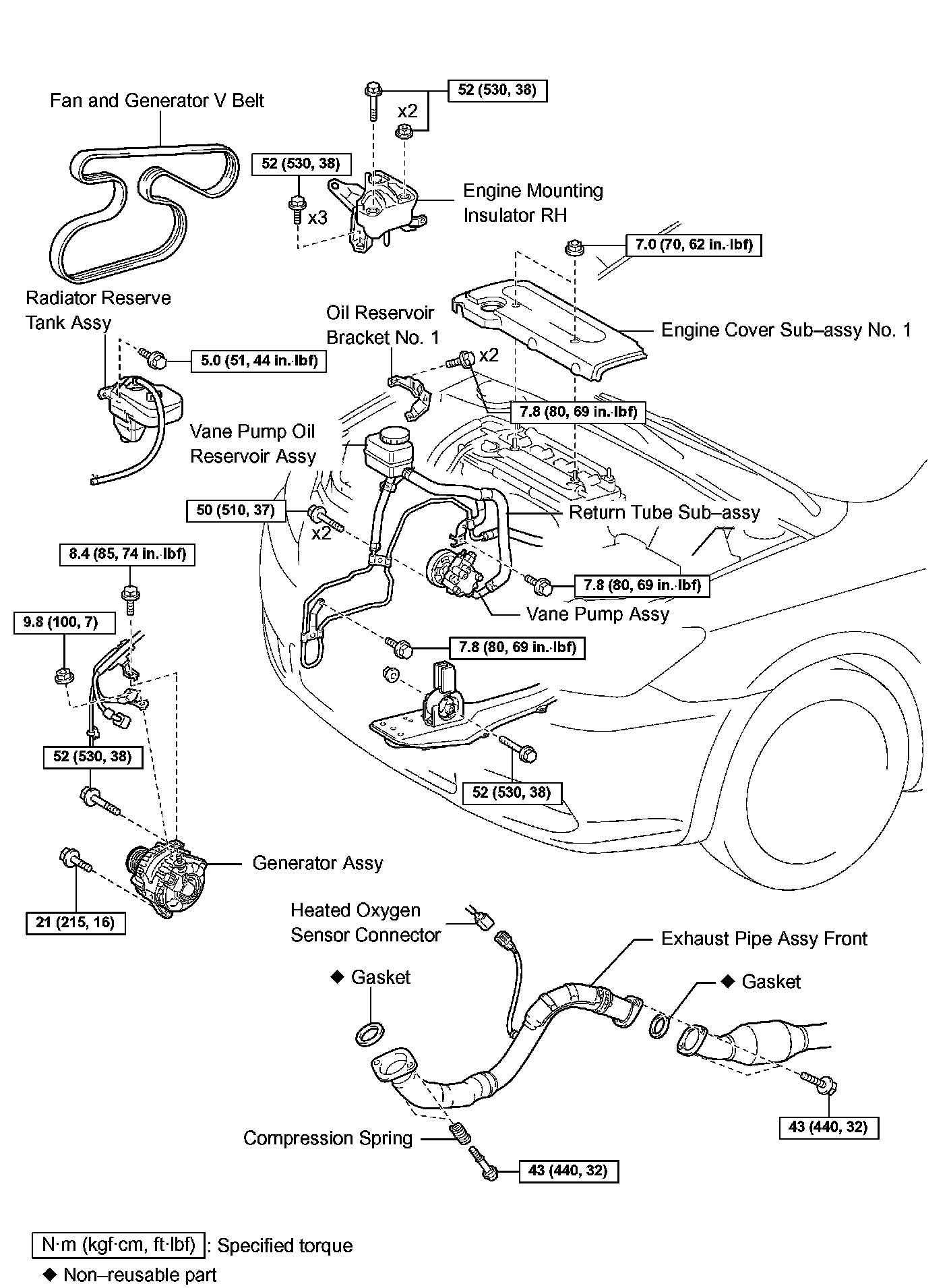

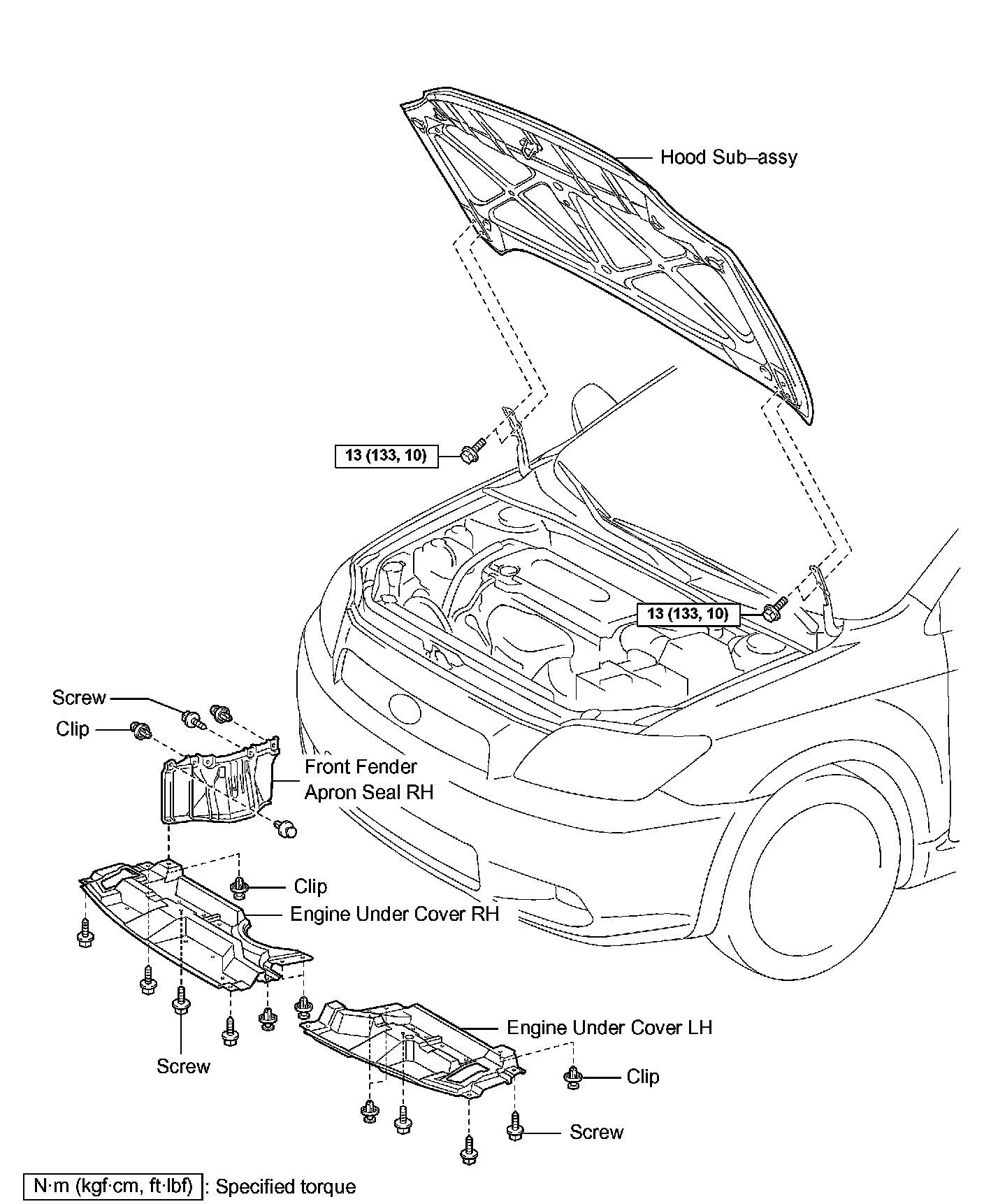

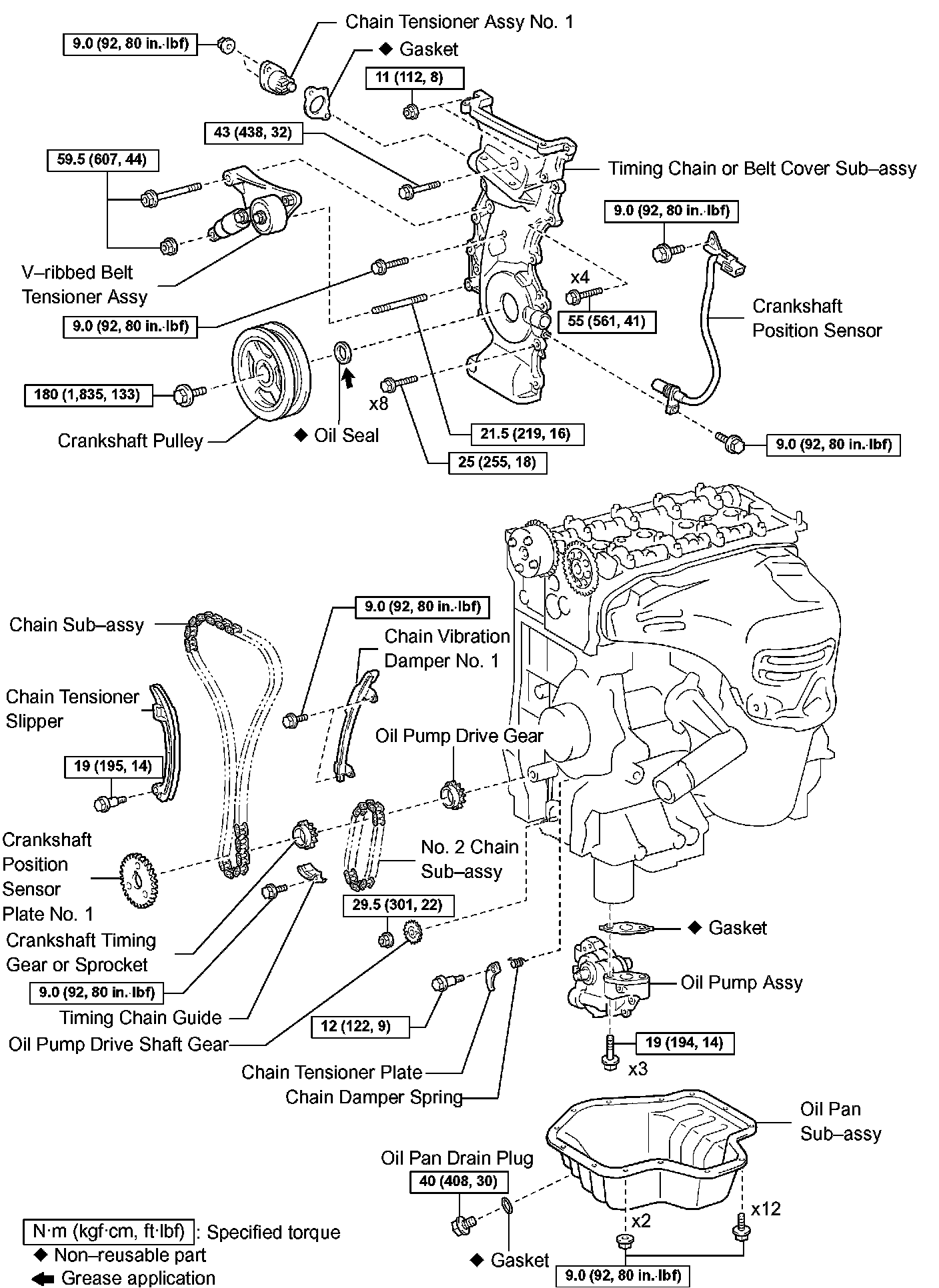

OIL PUMP ASSEMBLY (2AZ-FE)
REPLACEMENT
1. REMOVE NO.2 CHAIN SUB-ASSEMBLY





2. REMOVE OIL PUMP ASSEMBLY

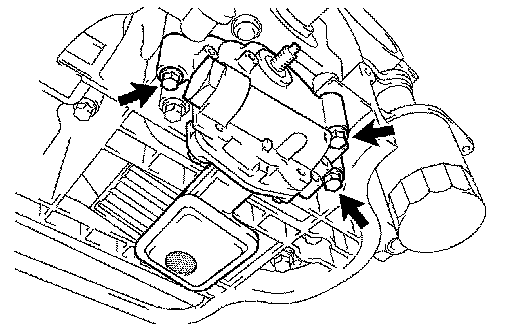

a. Remove the 3 bolts, then remove the oil pump and gasket.
3. INSTALL OIL PUMP ASSEMBLY
a. Install a new gasket and oil pump with the 3 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft. lbs.)
4. INSTALL NO.2 CHAIN SUB-ASSEMBLY
