Home >> Scion >> 2005 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Impact Sensor

Impact Sensor

Airbag Sensor Front LH:

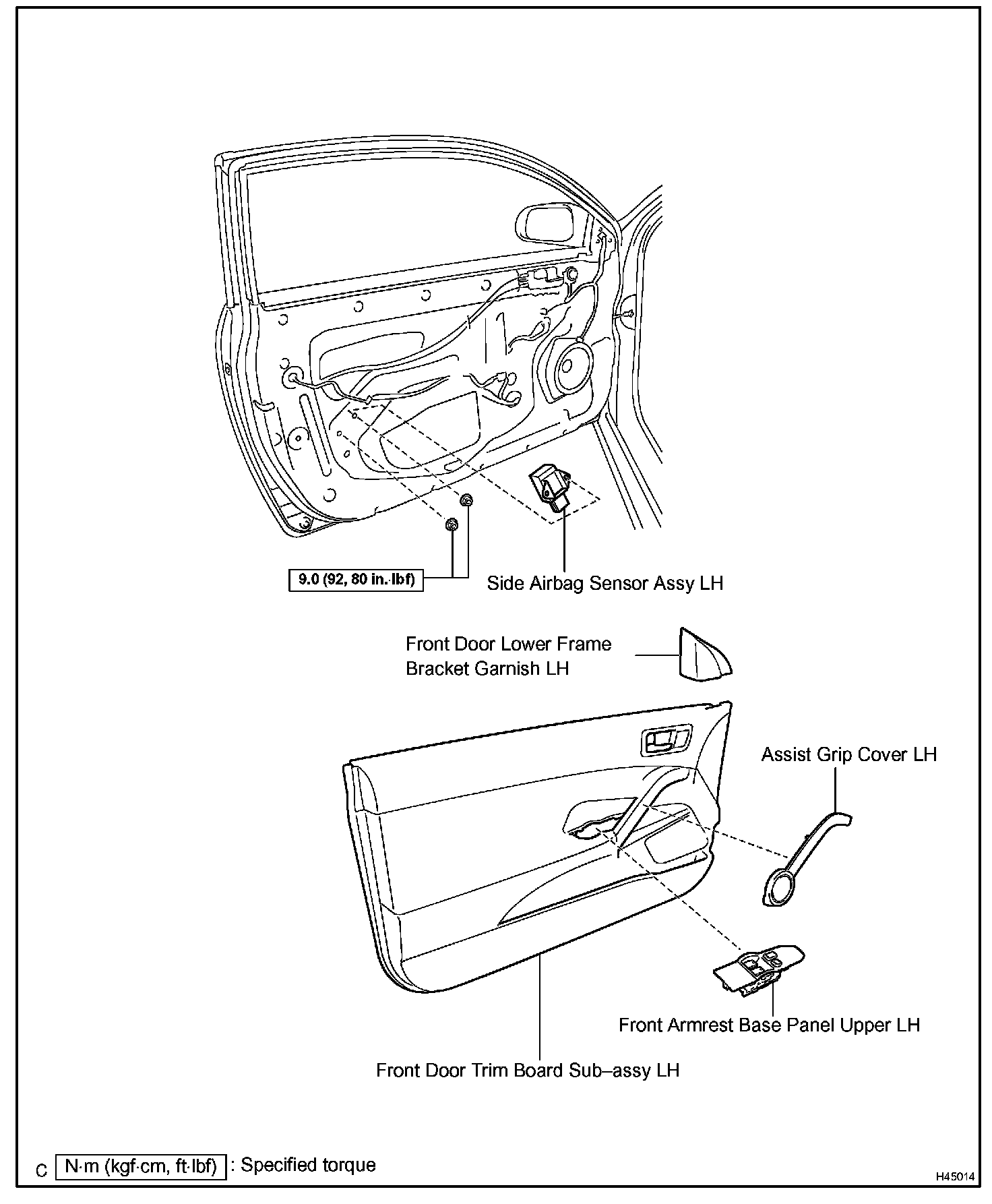

Side Air Bag Sensor Assy LH:

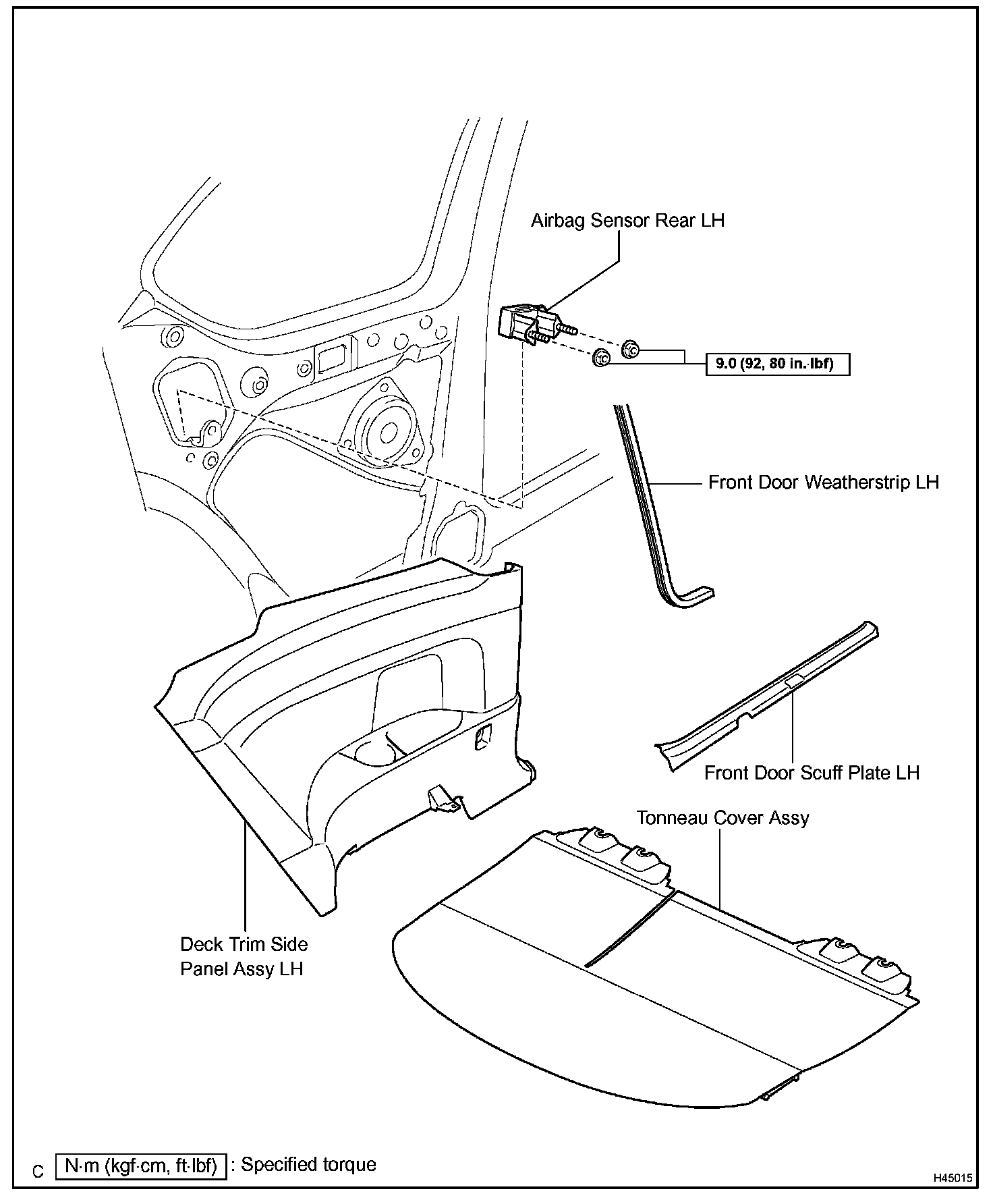

Air Bag Sensor Rear LH:
