Home >> Scion >> 2005 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

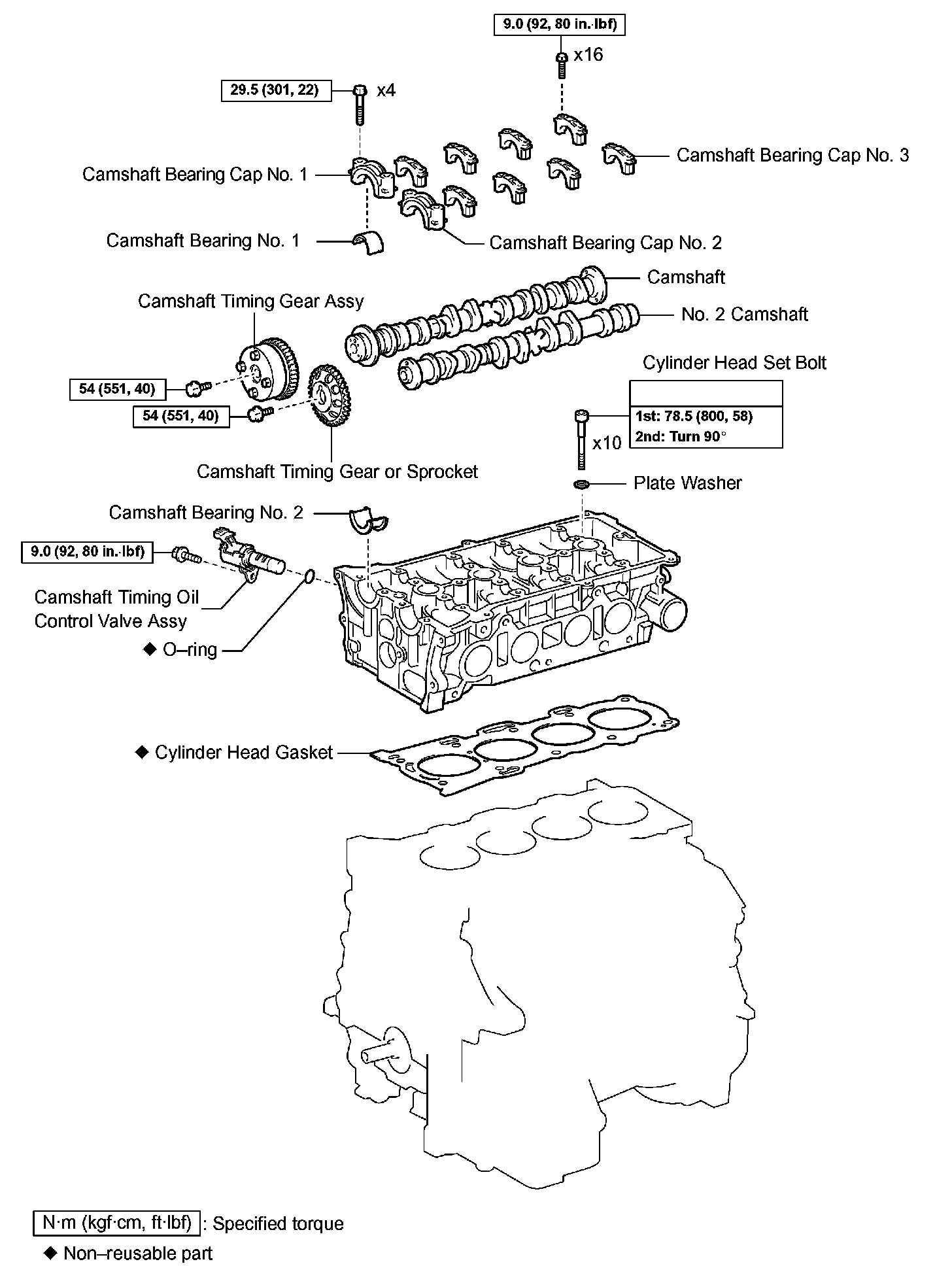

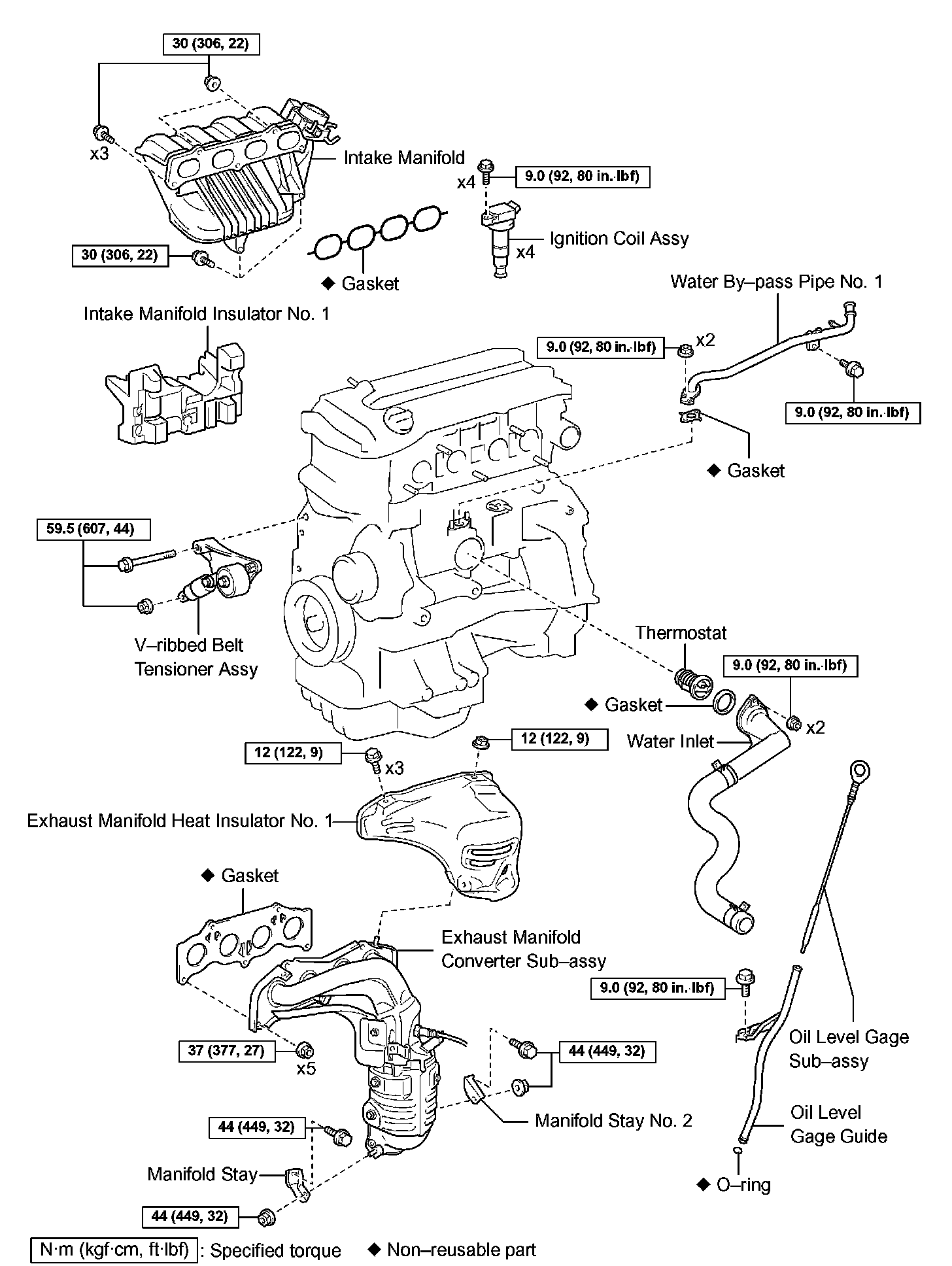

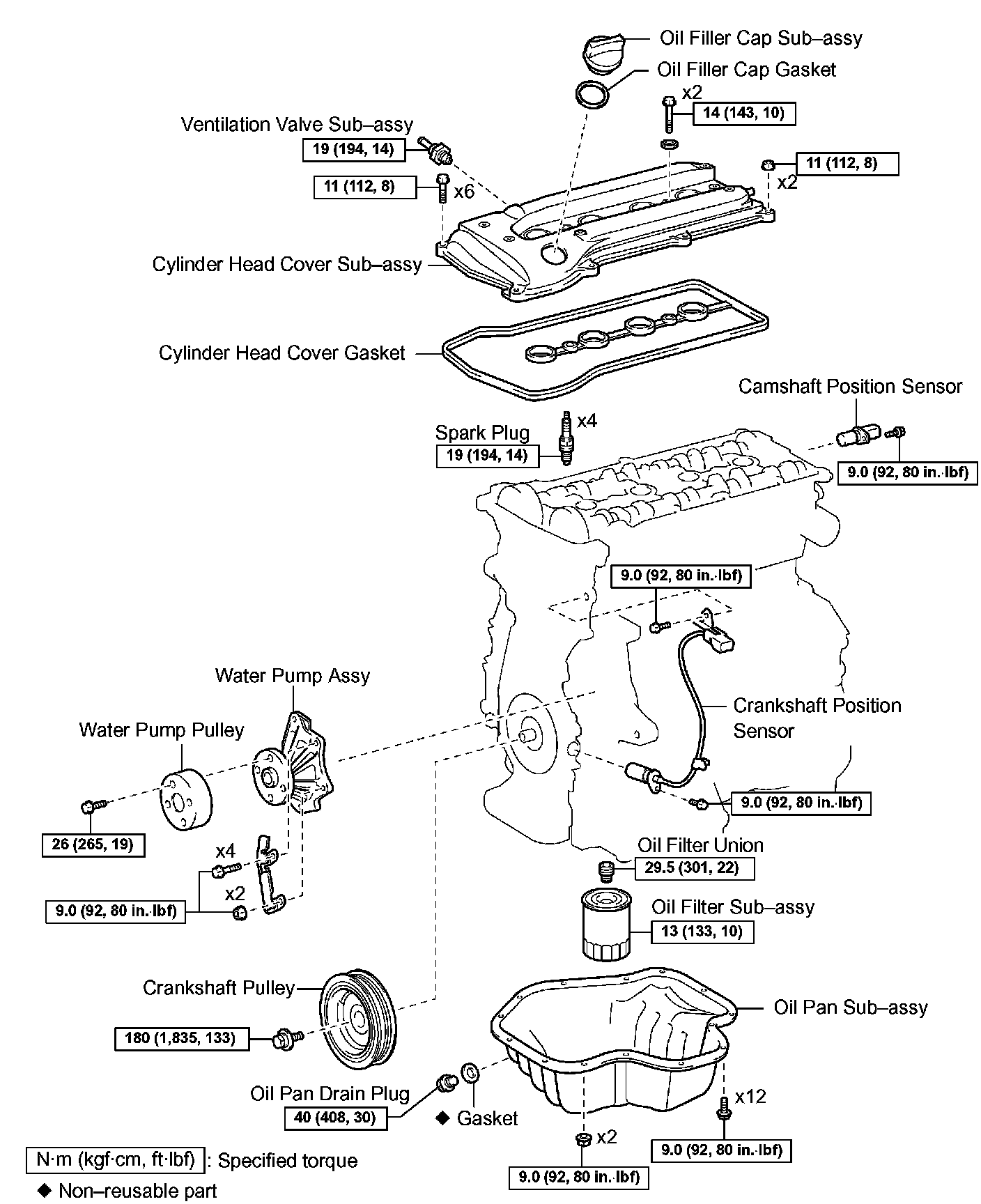

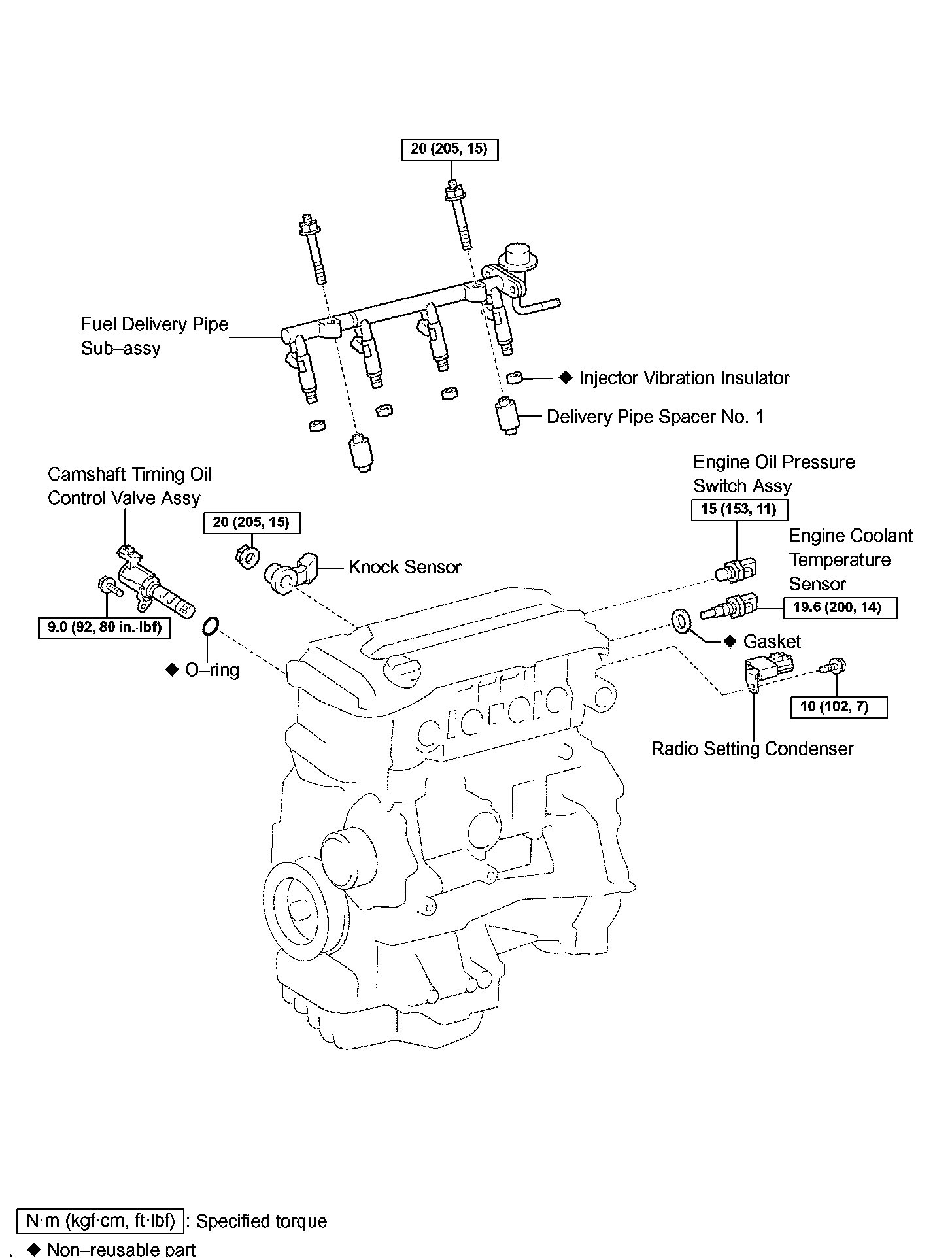

PARTIAL ENGINE ASSEMBLY (2AZ-FE)
