Air Bag
Air Bag
Horn Button Assy:

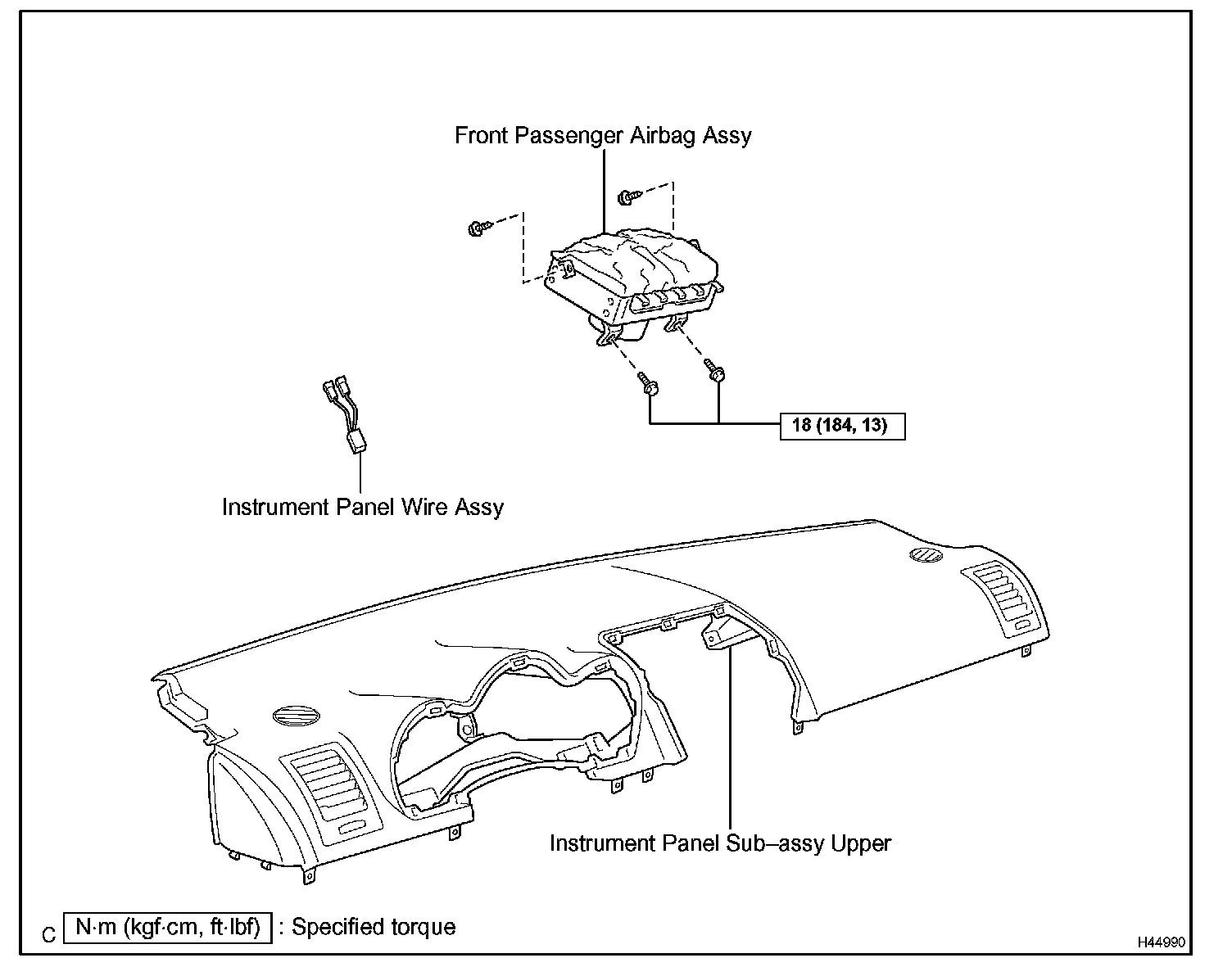

Front Passenger Airbag Assy:

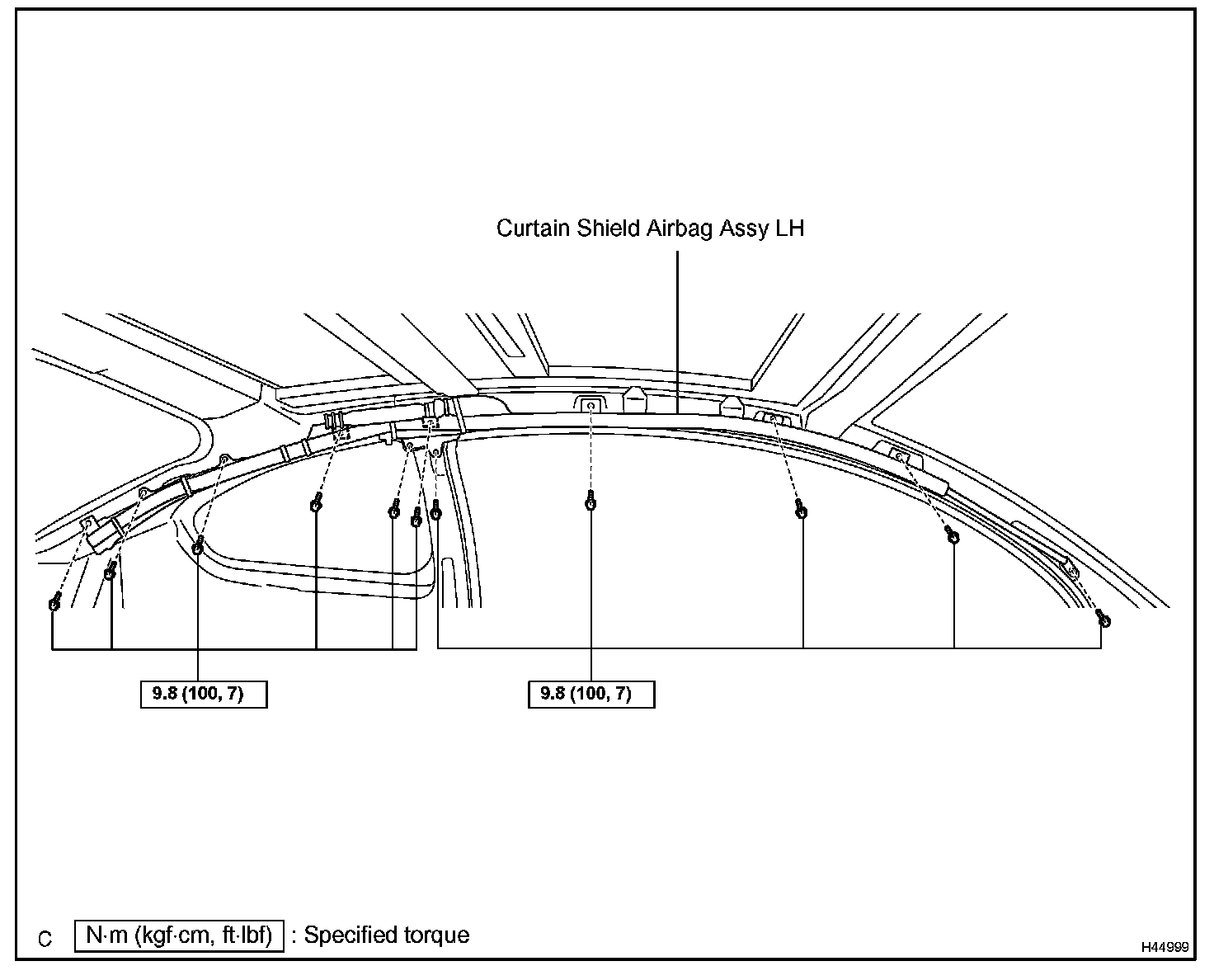

Curtain Shield Air Bag Assy LH:

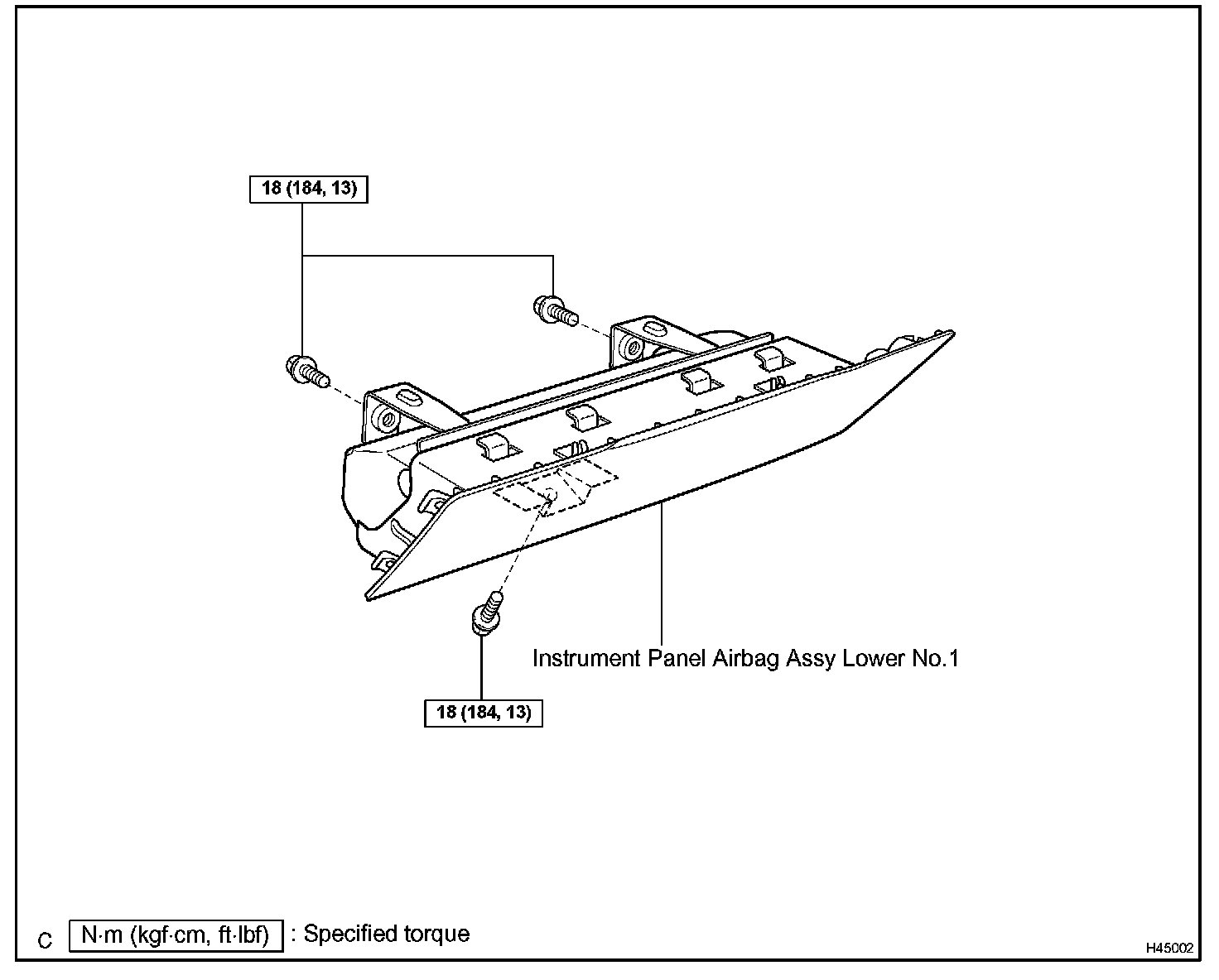

Instrument Panel Air Bag Assy Lower No.1:
