Data List

DATA LIST

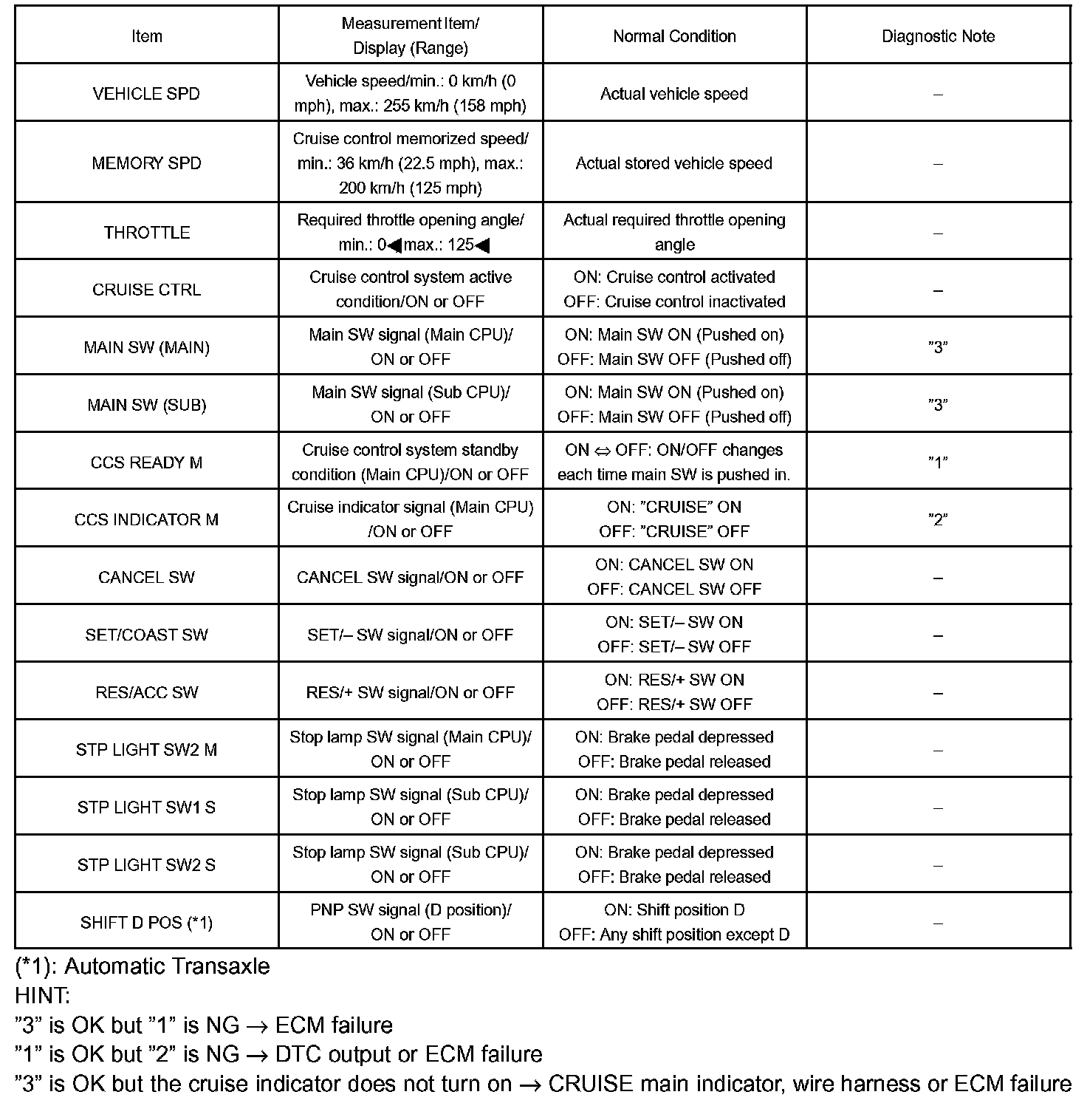

While the hand-held tester is connected to the DLC3 with the ignition switch in the ON position, the CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the data list.




CCS (ECM)
