Brakes and Traction Control: Testing and Inspection

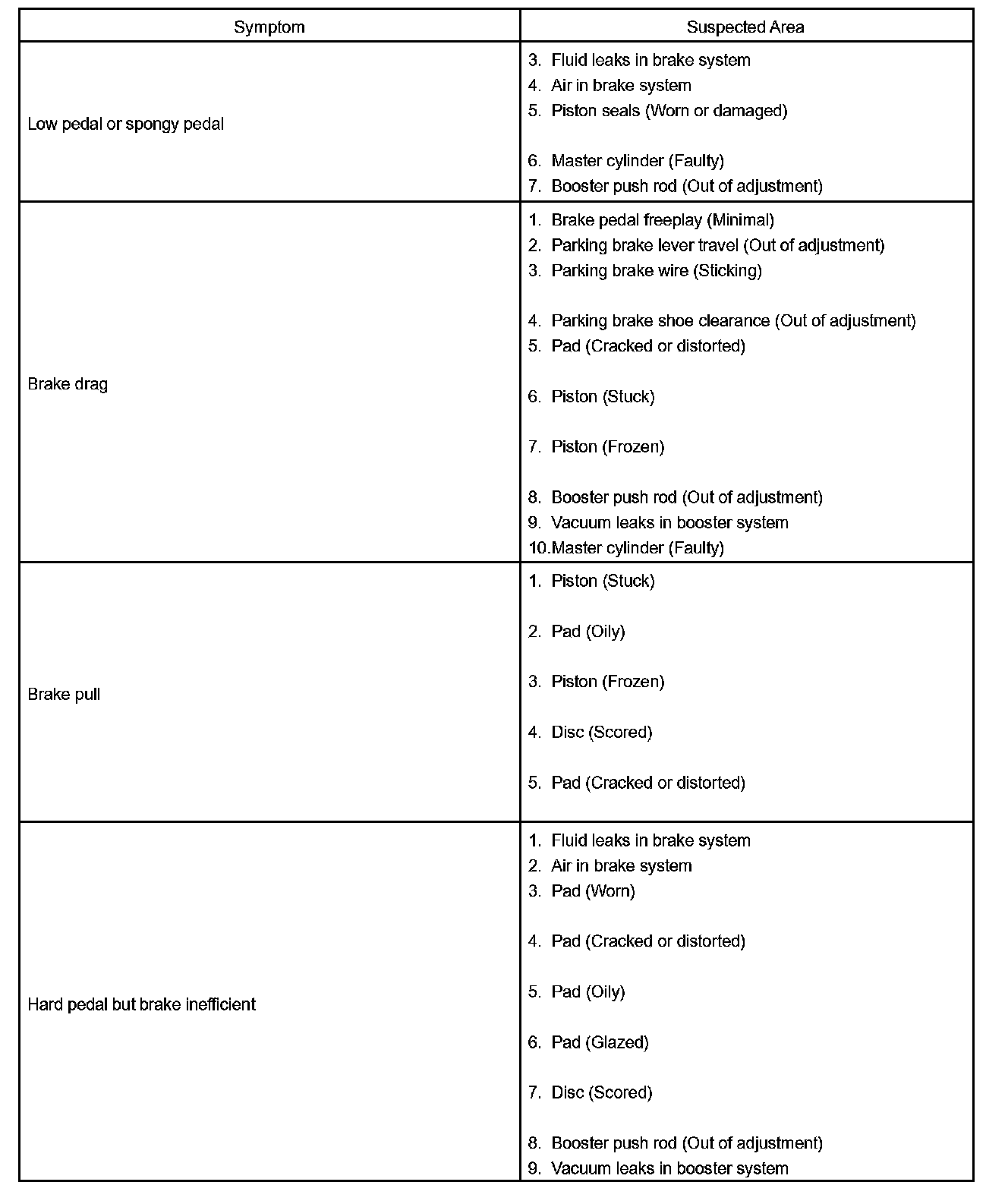

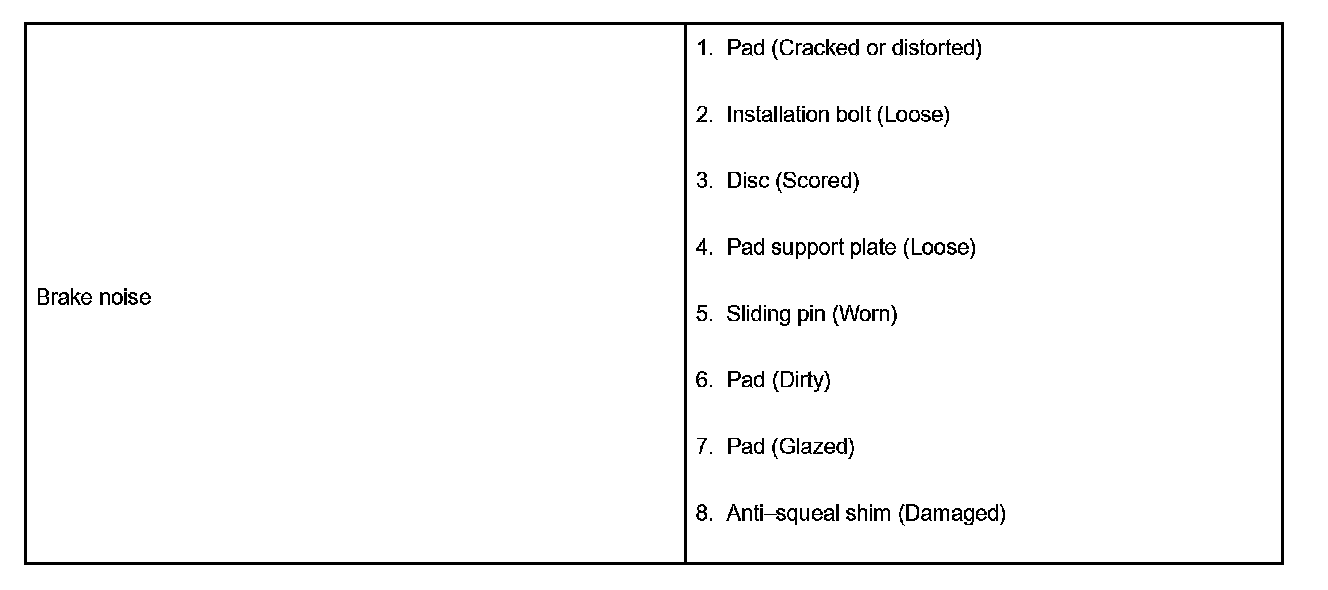

PROBLEM SYMPTOMS TABLE








HINT: Refer to the table to help find the cause of the problem. The numbers indicate the priority of the possible cause of the problem. Check each part in order. If necessary, replace these parts.
