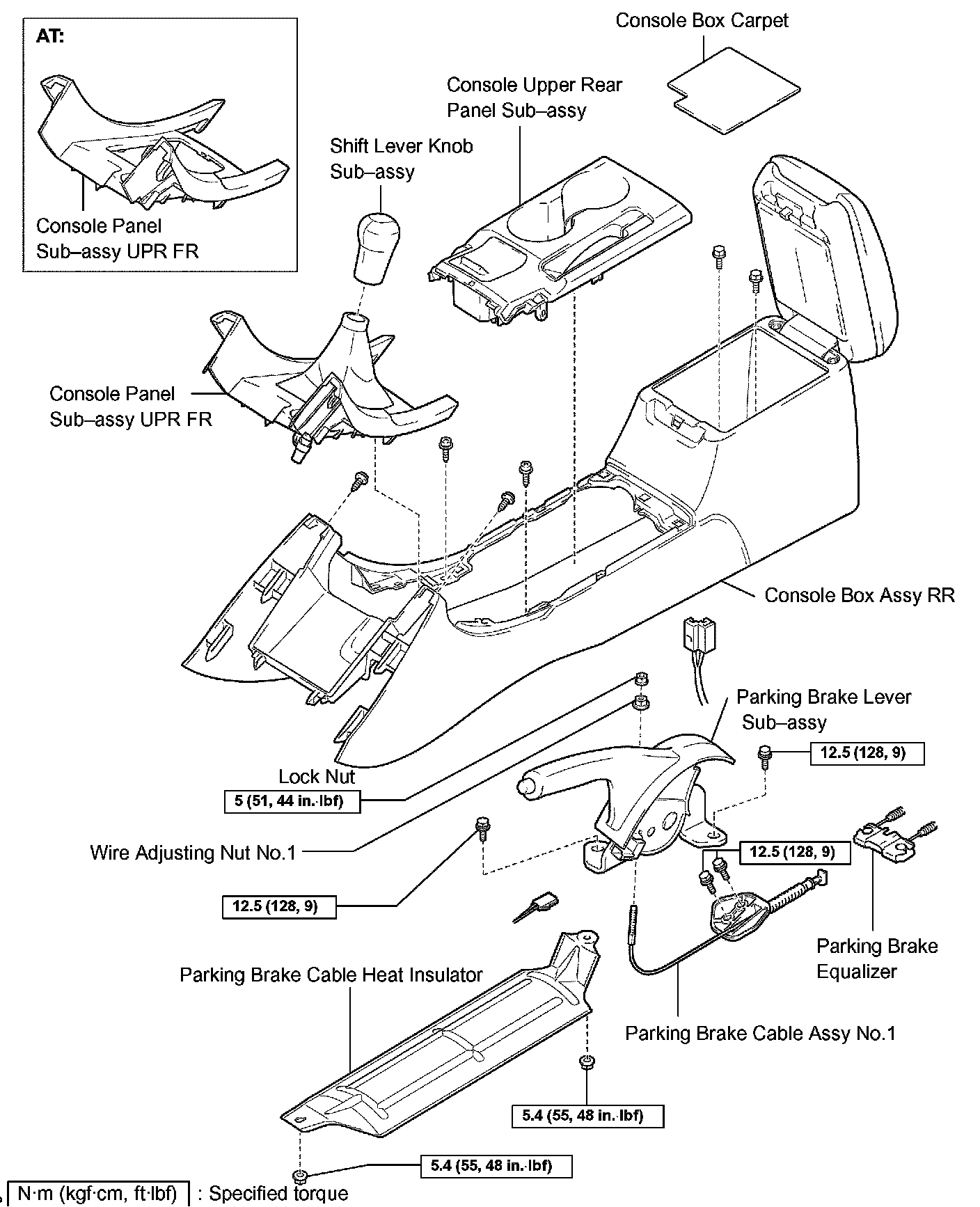

Parking Brake Cable Assembly No.1

PARKING BRAKE CABLE ASSEMBLY NO.1
REPLACEMENT

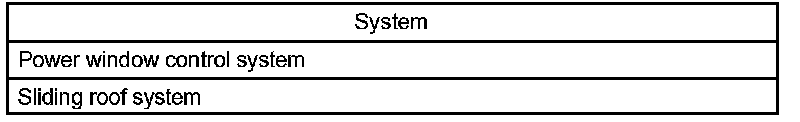

NOTICE: When disconnecting the battery terminal, initialize the system(s) shown after the terminal is reconnected.

1. OBSERVE RESTRAINT SYSTEMS SERVICE PRECAUTIONS
2. DISCONNECT BATTERY NEGATIVE TERMINAL
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (MANUAL TRANSAXLE)
4. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPR FR
5. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
6. REMOVE CONSOLE BOX ASSEMBLY RR
7. REMOVE PARKING BRAKE LEVER SUB-ASSEMBLY
8. REMOVE FRONT DOOR SCUFF PLATE RH
9. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH
10. REMOVE FRONT SEAT ASSEMBLY RH
11. REMOVE EXHAUST PIPE ASSEMBLY CENTER





12. REMOVE PARKING BRAKE CABLE HEAT INSULATOR

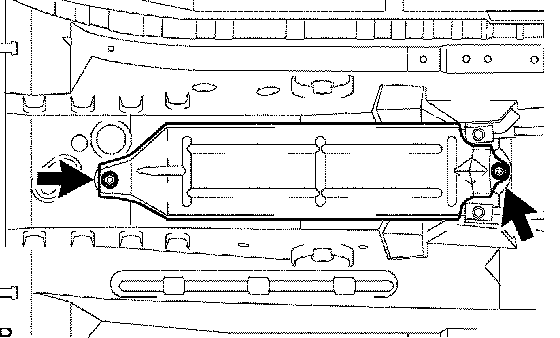

a. Remove the 2 nuts and parking brake cable heat insulator.
13. REMOVE PARKING BRAKE CABLE ASSEMBLY NO.1
a. Disconnect the parking brake cable assembly No.1 from the parking brake equalizer.

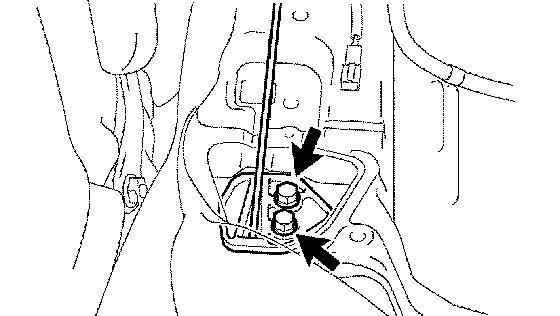

b. Turn back the floor carpet, and remove the 2 bolts and parking brake cable assembly No.1.





14. INSTALL PARKING BRAKE CABLE ASSEMBLY NO.1

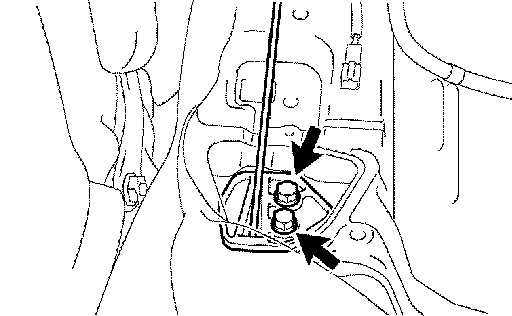

a. Install the 2 bolts and parking brake cable assembly No.1.
Torque: 12.5 Nm (128 kgf-cm, 9 ft. lbs.)
b. Install the floor carpet.
c. Connect the parking brake cable assembly No.1 to the parking brake equalizer and install the parking brake cable assembly No.1.





15. INSTALL PARKING BRAKE CABLE HEAT INSULATOR

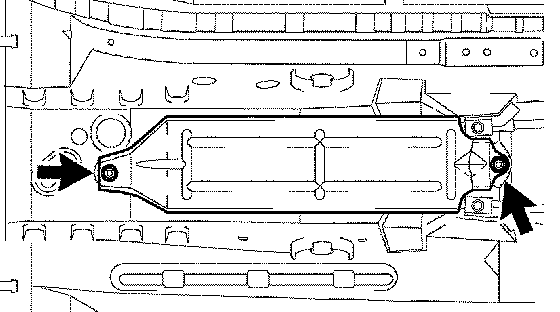

a. Install the 2 nuts and parking brake cable heat insulator.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
16. INSTALL EXHAUST PIPE ASSEMBLY CENTER
17. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY
18. INSTALL FRONT SEAT ASSEMBLY RH
19. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH
20. INSTALL FRONT DOOR SCUFF PLATE RH
21. INSPECT PARKING BRAKE LEVER TRAVEL
22. ADJUST PARKING BRAKE LEVER TRAVEL
23. INSTALL CONSOLE BOX ASSEMBLY RR
24. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
25. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPR FR
26. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (MANUAL TRANSAXLE)
27. CONNECT BATTERY NEGATIVE TERMINAL
28. INSPECT SRS WARNING LIGHT
