BRAKE PEDAL SUB-ASSEMBLYADJUSTMENT
1. CHECK AND ADJUST BRAKE PEDAL HEIGHT

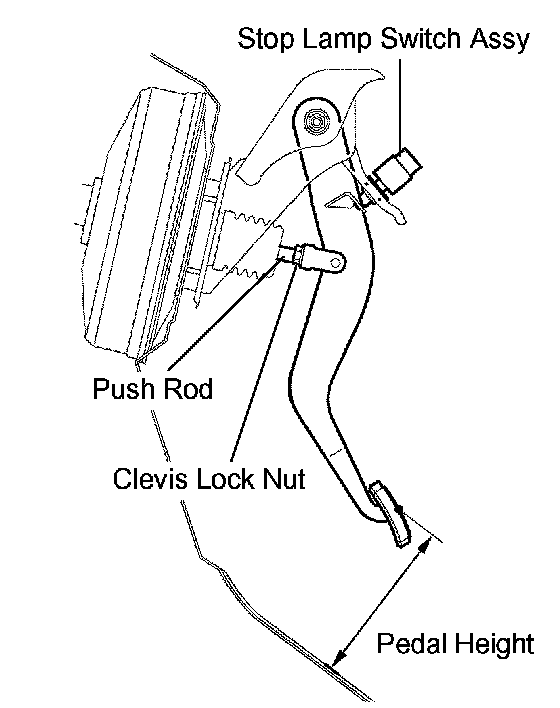

a. Check brake pedal height.
Pedal height from asphalt sheet:
M/T: 146.1 to 156.1 mm (5.752 to 6.146 inch)
A/T: 146.9 to 156.9 mm (5.784 to 6.177 inch)
b. Adjust brake pedal height.
1. Disconnect the connector from the stop lamp switch assembly.
2. Remove the stop lamp switch assembly.
3. Loosen the clevis lock nut.
4. Adjust the pedal height by turning the push rod.
5. Tighten the clevis lock nut.
Torque: 26 Nm (265 kgf-cm, 19 ft. lbs.)

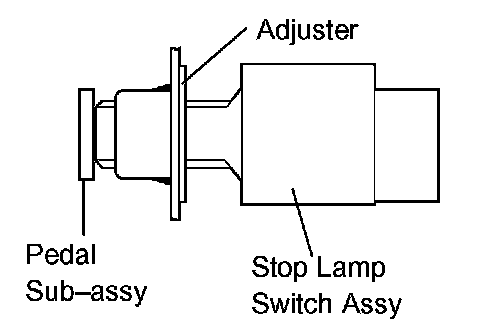

6. Insert the stop lamp switch assembly into the adjuster until it slightly touches the pedal sub-assembly.
NOTICE: Do not depress the brake pedal.
7. Make a quarter turn clockwise to install the stop lamp switch assembly.
NOTICE: Do not depress the brake pedal.
HINT: The turning torque for installing the stop lamp switch assembly:
Torque: 1.5 Nm (15 kgf-cm, 13 inch lbs.) or less
8. Connect the connector to the stop lamp switch assembly.

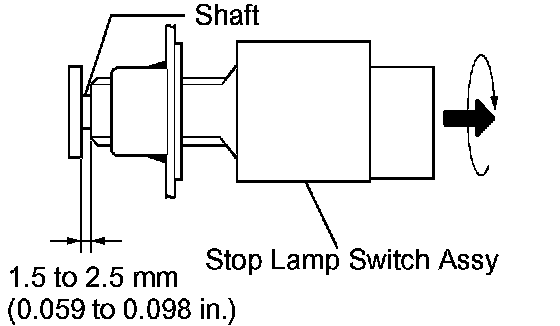

9. Check the stop lamp switch clearance.
Stop lamp switch clearance: 1.5 to 2.5 mm (0.059 to 0.098 inch)
2. CHECK PEDAL FREE PLAY
a. Stop the engine and depress the brake pedal several times until there is no more vacuum left in the booster.

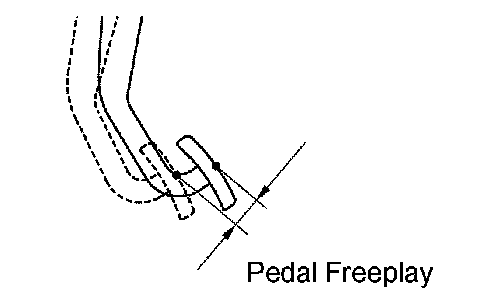

b. Press the pedal until resistance is felt. Measure the distance as shown in the illustration.
Pedal freeplay: 1.0 to 6.0 mm (0.039 to 0.236 inch)
If incorrect, proceed to the following step:
1. Check the stop lamp switch clearance.
Stop lamp switch clearance: 1.5 to 2.5 mm (0.059 to 0.098 inch)
If the clearance is OK, troubleshoot the brake system.
If incorrect, adjust the stop lamp switch clearance.
3. CHECK PEDAL RESERVE DISTANCE
a. Release the parking brake pedal.
b. With engine running, depress the pedal and measure the pedal reserve distance, as shown in the illustration.
Pedal reserve distance from asphalt sheet at 490 N (50 kgf, 110.2 lbs.): More than 90 mm (3.54 inch)
If incorrect, troubleshoot the brake system.
