ABS Warning Light Circuit (Remains ON)

ABS WARNING LIGHT CIRCUIT (REMAINS ON)

When reading DTCs by SST (CHECK WIRE), if the ABS warning light remains on, troubleshoot by following the inspection flow.

CIRCUIT DESCRIPTION

If any of the following is detected, the ABS warning light remains on:
1. The skid control ECU connectors are disconnected from the skid control ECU.
2. There is a malfunction in the skid control ECU internal circuit.
3. There is an open or short in the wire harness between the combination meter and skid control ECU.

HINT: The hand-held tester may not be usable when there is a malfunction in the skid control ECU.

Wiring Diagram:

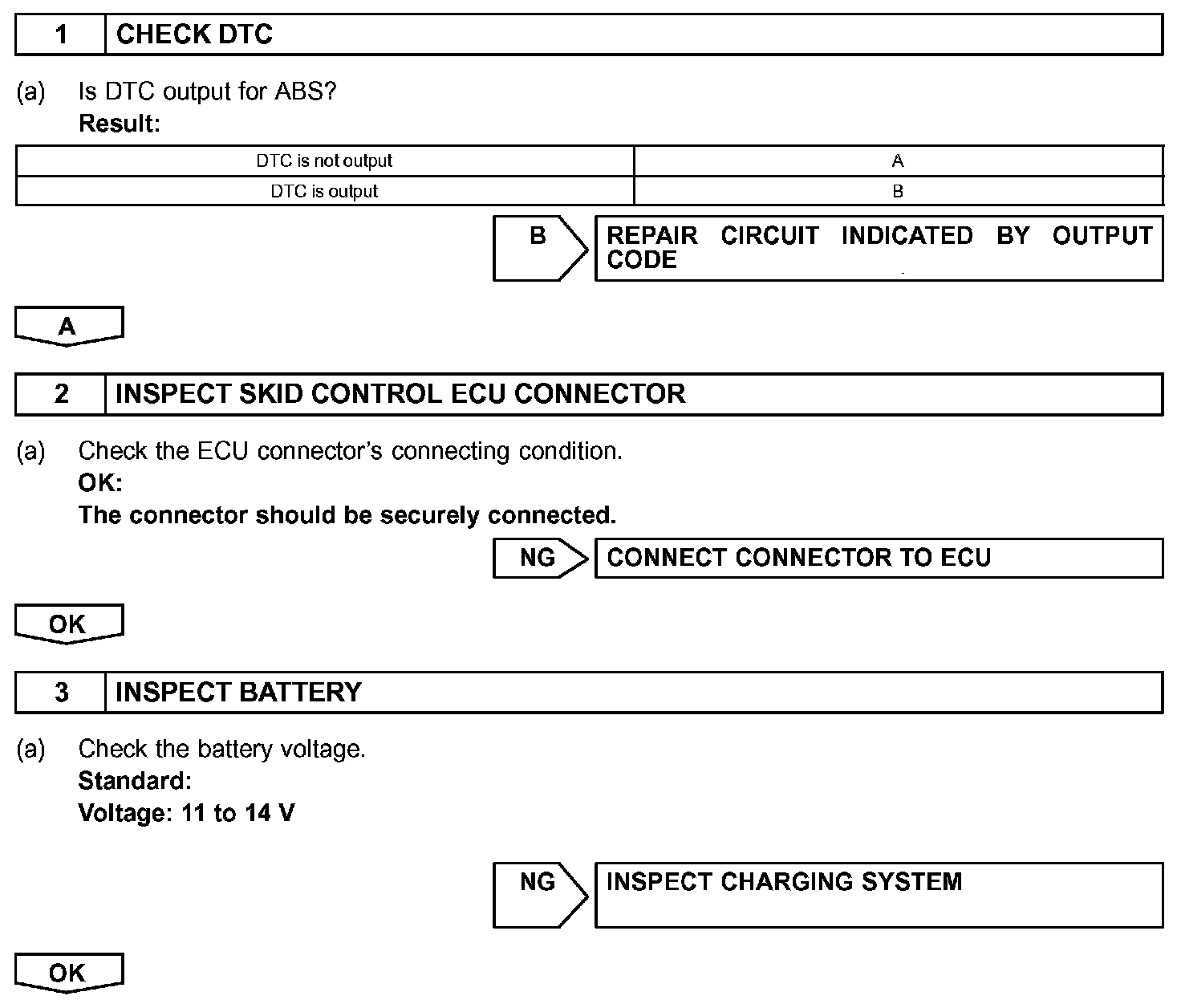

Step 1 - 3:

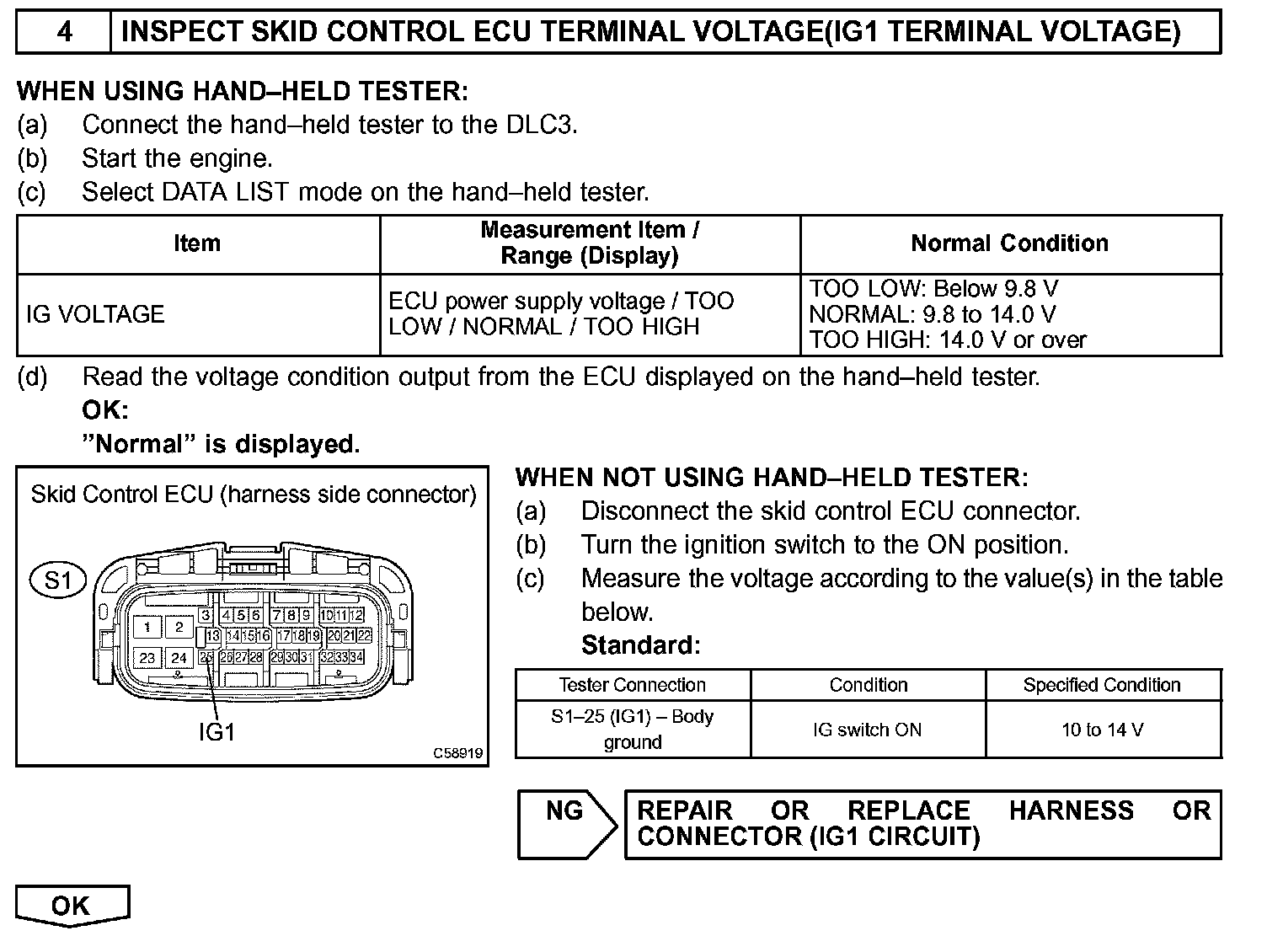

Step 4:

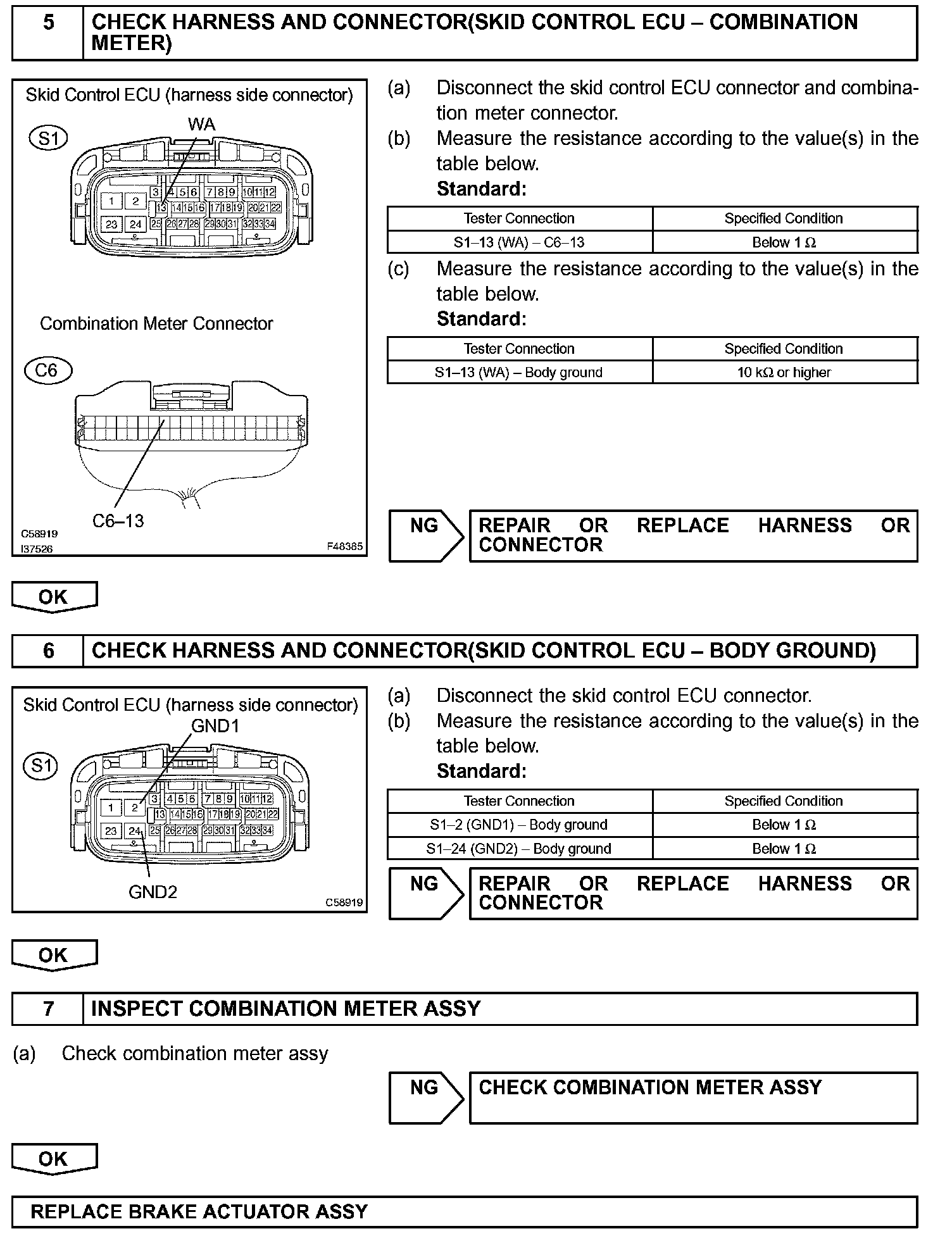

Step 5 - 7:

INSPECTION PROCEDURE
