ABS Warning Light Circuit (Does Not Light Up)
ABS Warning Light Circuit (Does Not Light Up)
ABS WARNING LIGHT CIRCUIT (DOES NOT LIGHT UP)

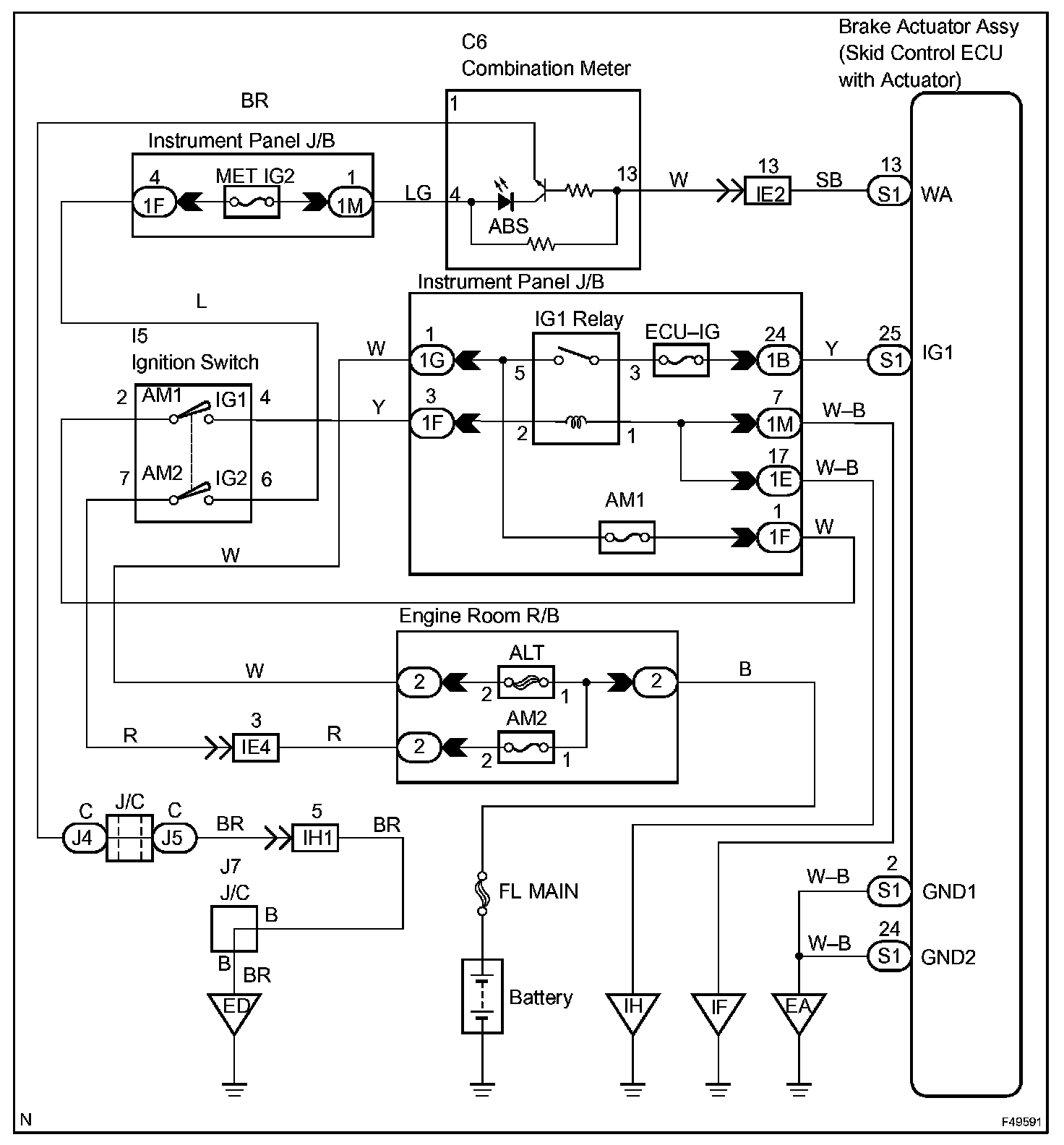

Wiring Diagram:

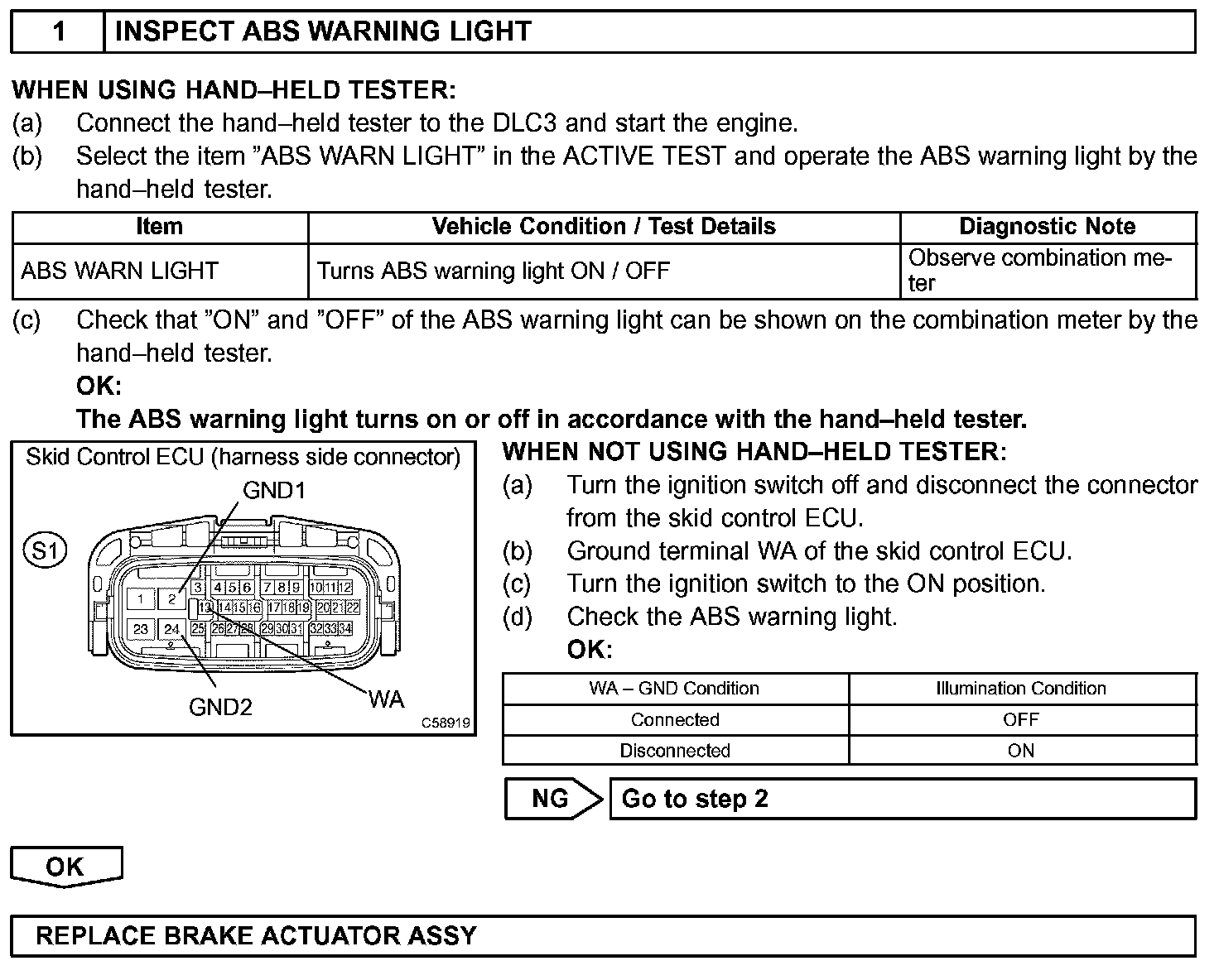

Step 1:

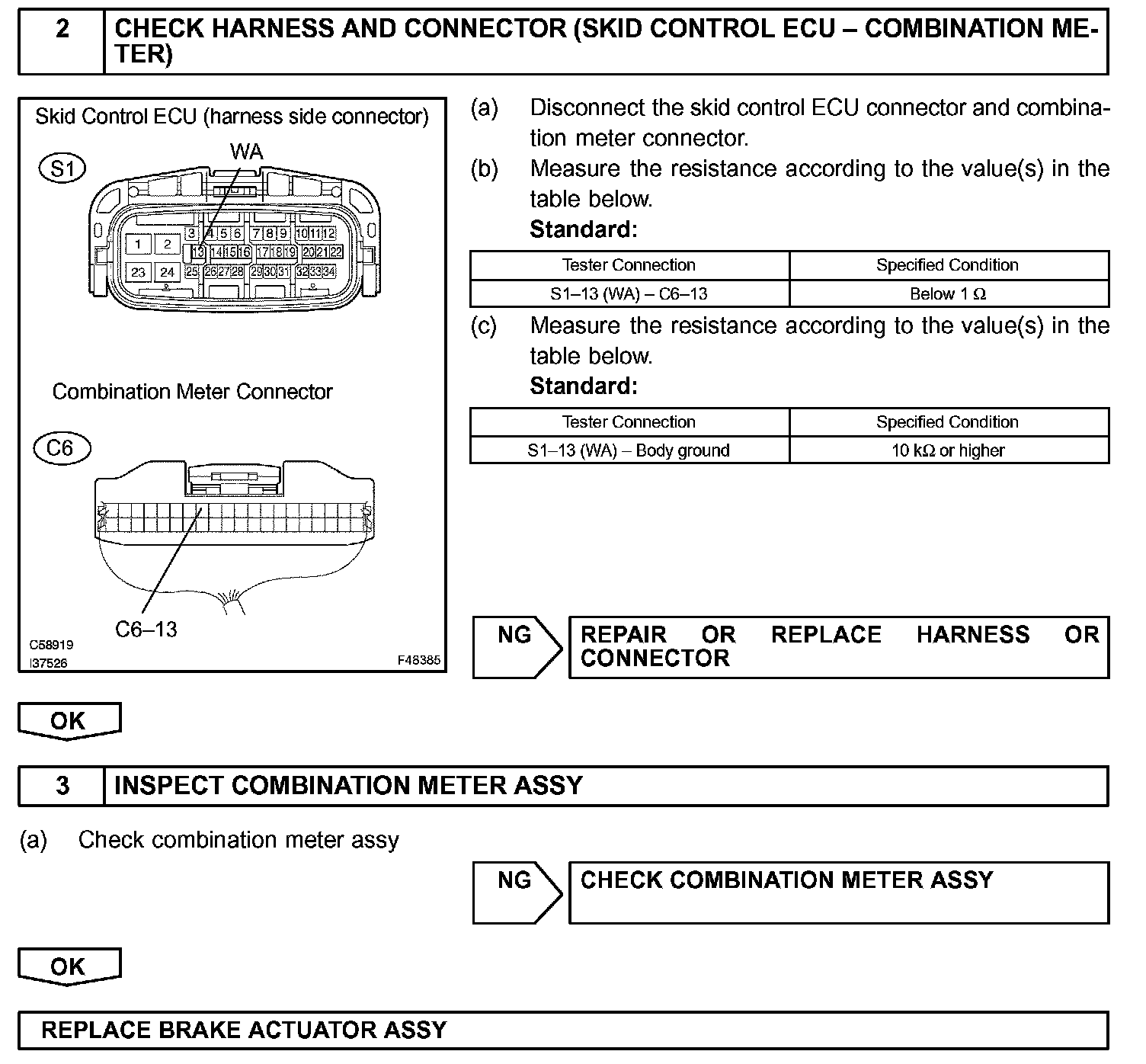

Step 2 - 3:
INSPECTION PROCEDURE
