With Manufacturer's Scan Tool

DTC CHECK (USING HAND HELD TESTER)

a. Check DTCs.

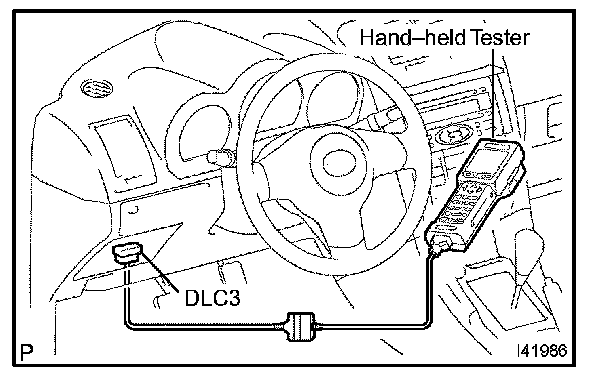

1. Connect the hand held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Read the DTCs by following the prompts on the tester screen.

HINT: Refer to the hand held tester operator's manual for further details.

END OF DTC CHECK/CLEAR
a. Turn the ignition switch to the ON position.
b. Check that the ABS warning light goes off in about 3 seconds.
