TS Terminal Circuit

TS TERMINAL CIRCUIT

CIRCUIT DESCRIPTION
If the sensor check mode, a malfunction in the speed sensor that cannot be detected when the vehicle is stopped is detected while driving.

Transition to the sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the ignition switch from off to the ON position.

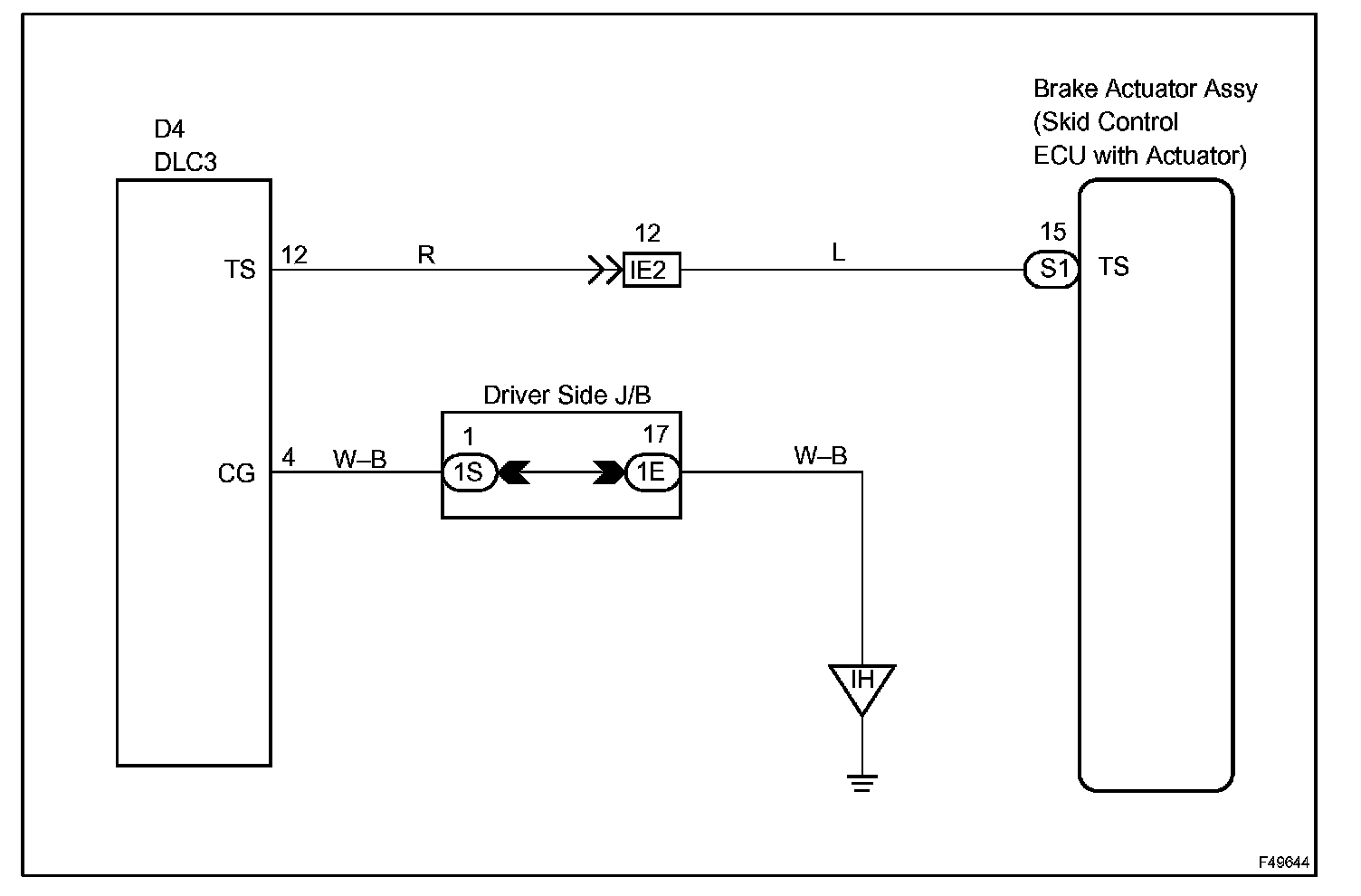

Wiring Diagram:

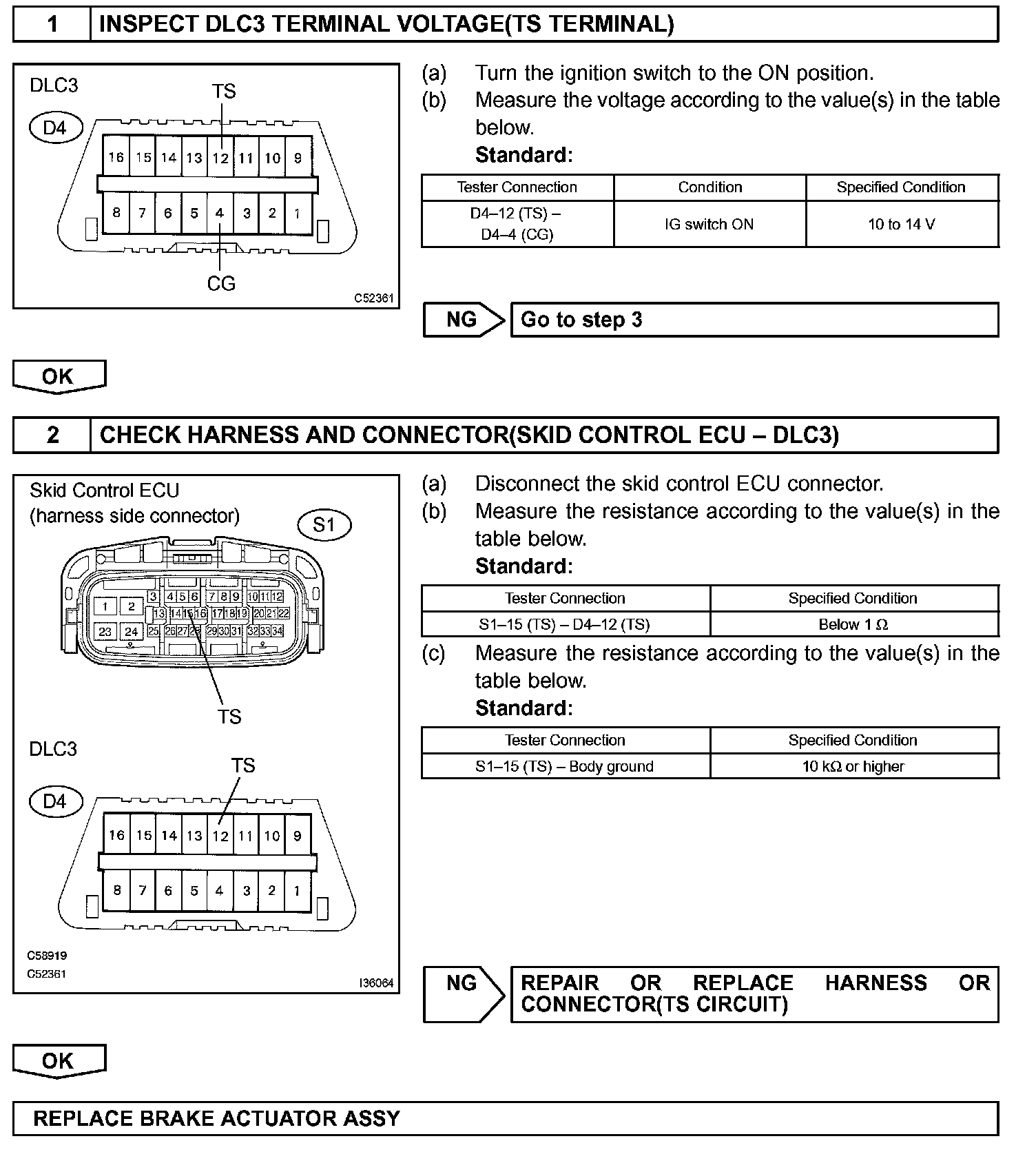

Step 1 - 2:

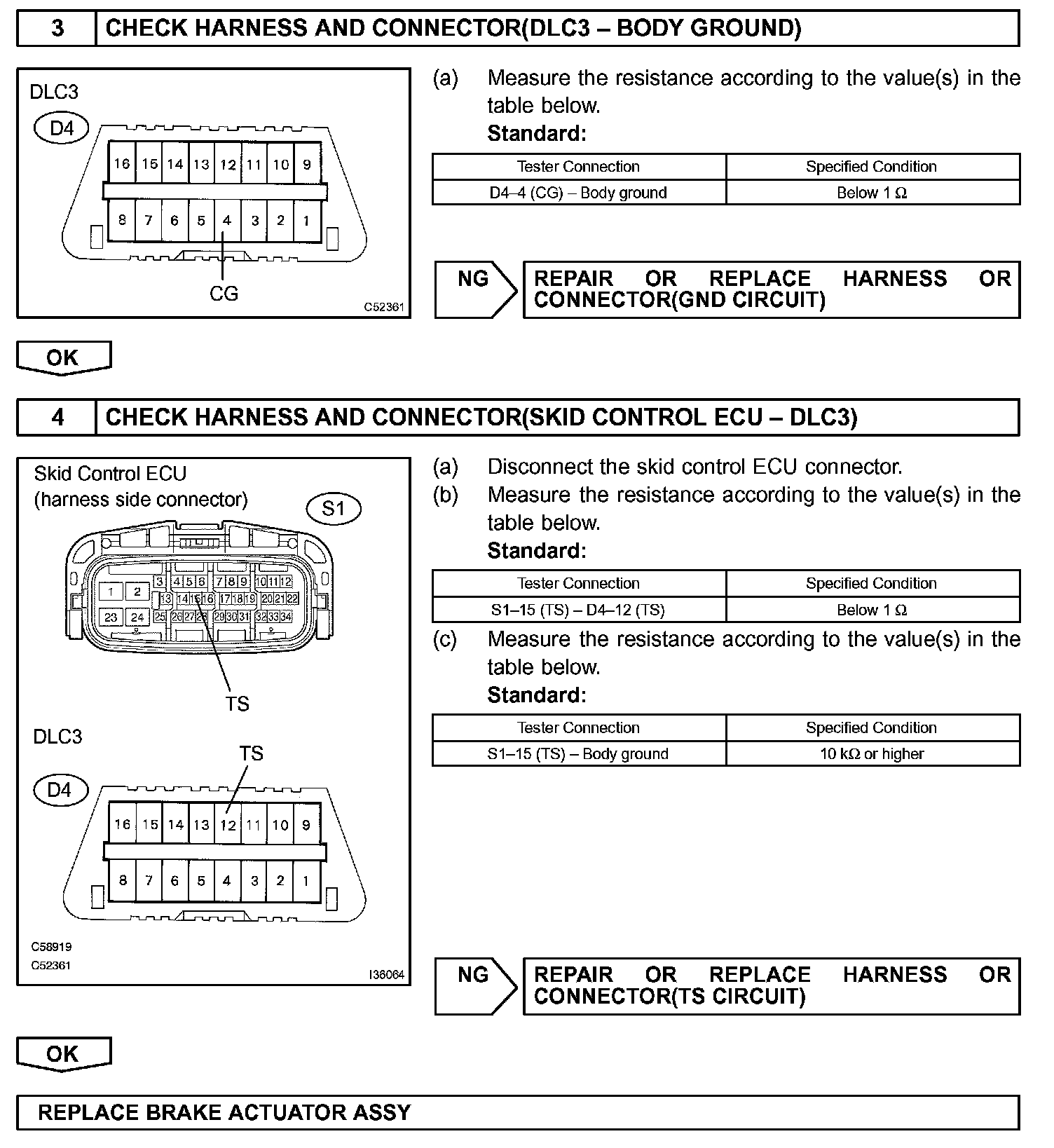

Step 3 - 4:

INSPECTION PROCEDURE
