Brake Warning Light Circuit

BRAKE WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The BRAKE warning light turns on when the brake fluid is insufficient, the parking brake is applied or the EBD is defective.

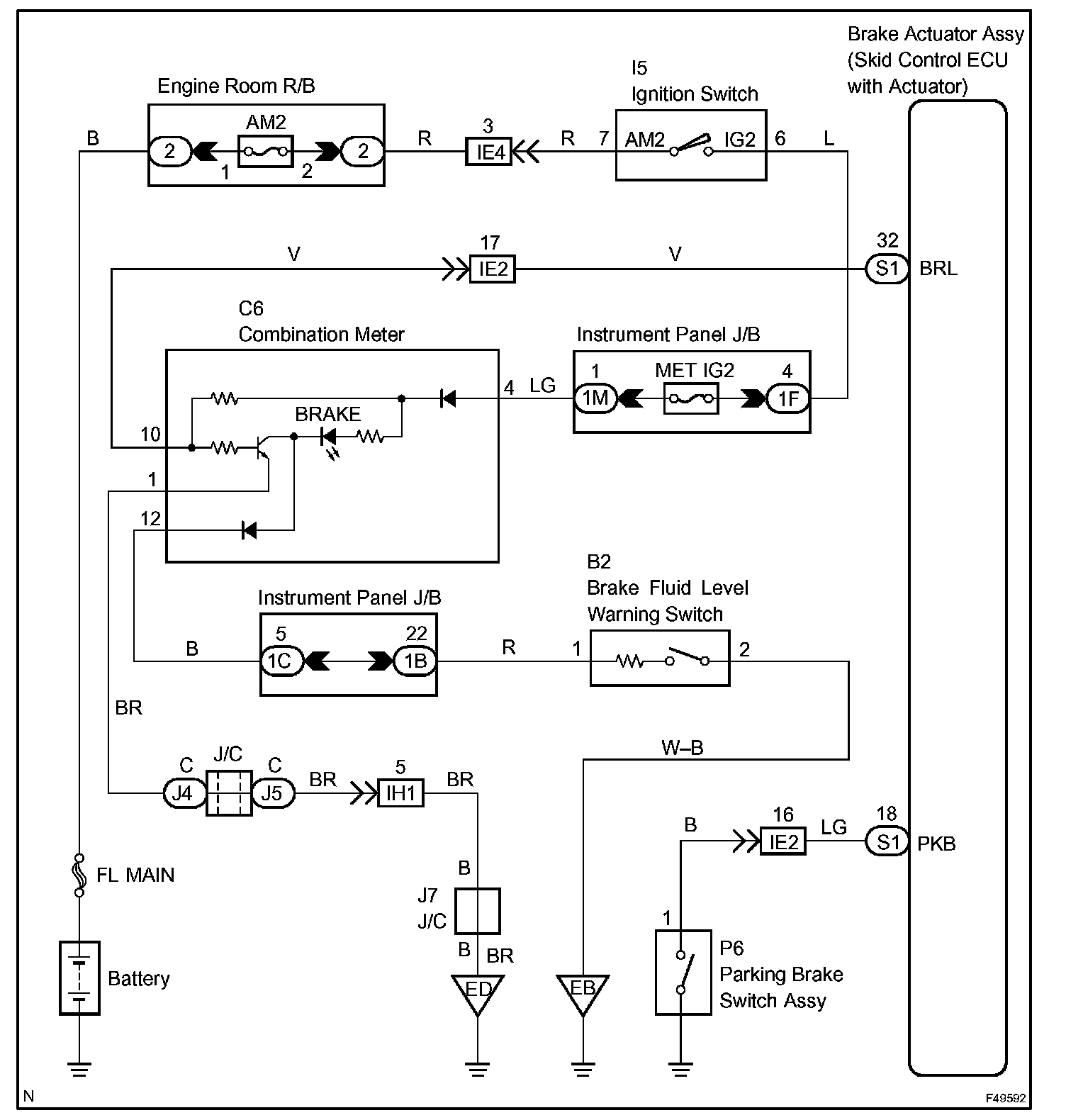

Wiring Diagram:

Step 1 - 3:

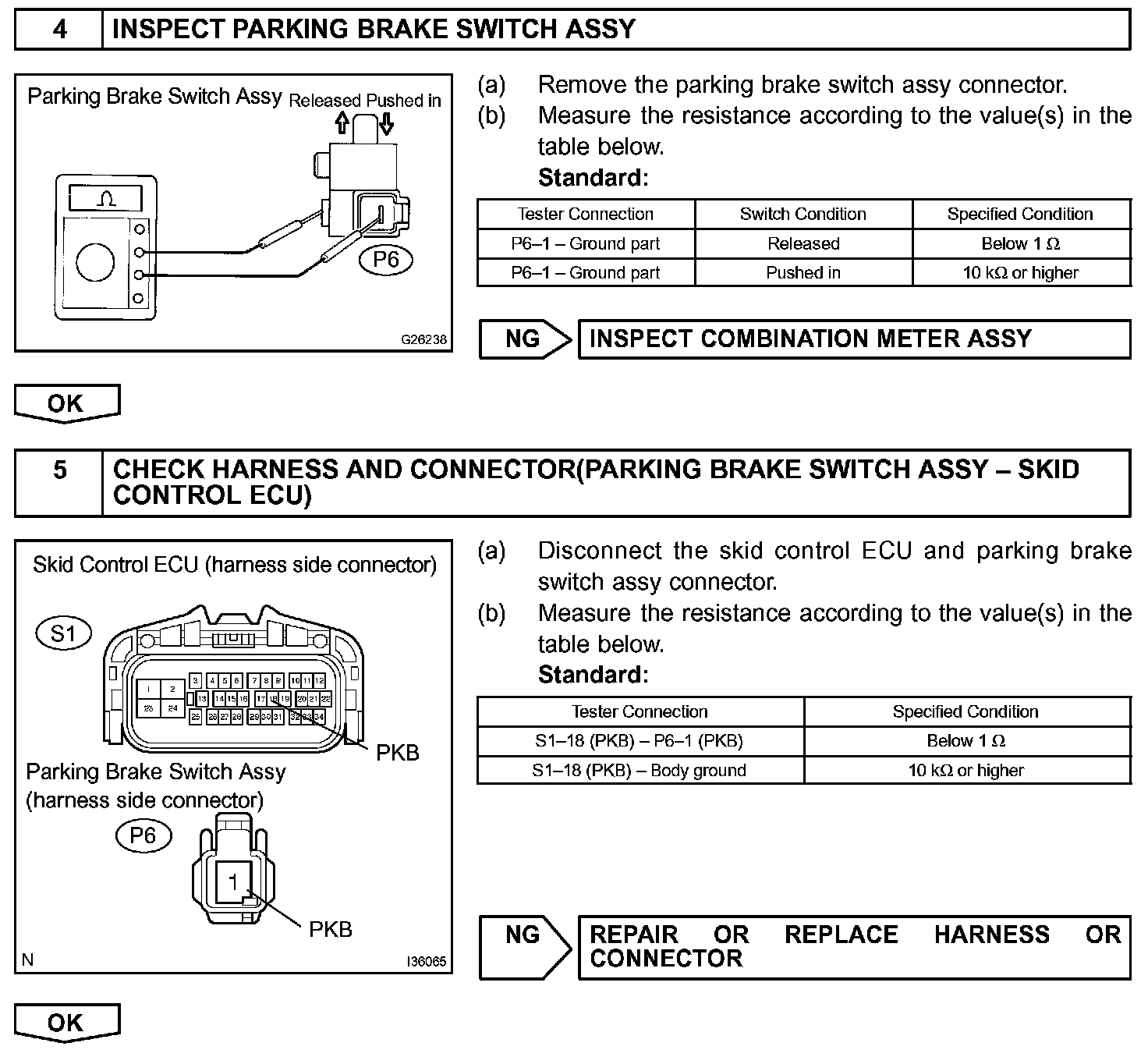

Step 4 - 5:

Step 6 - 7:

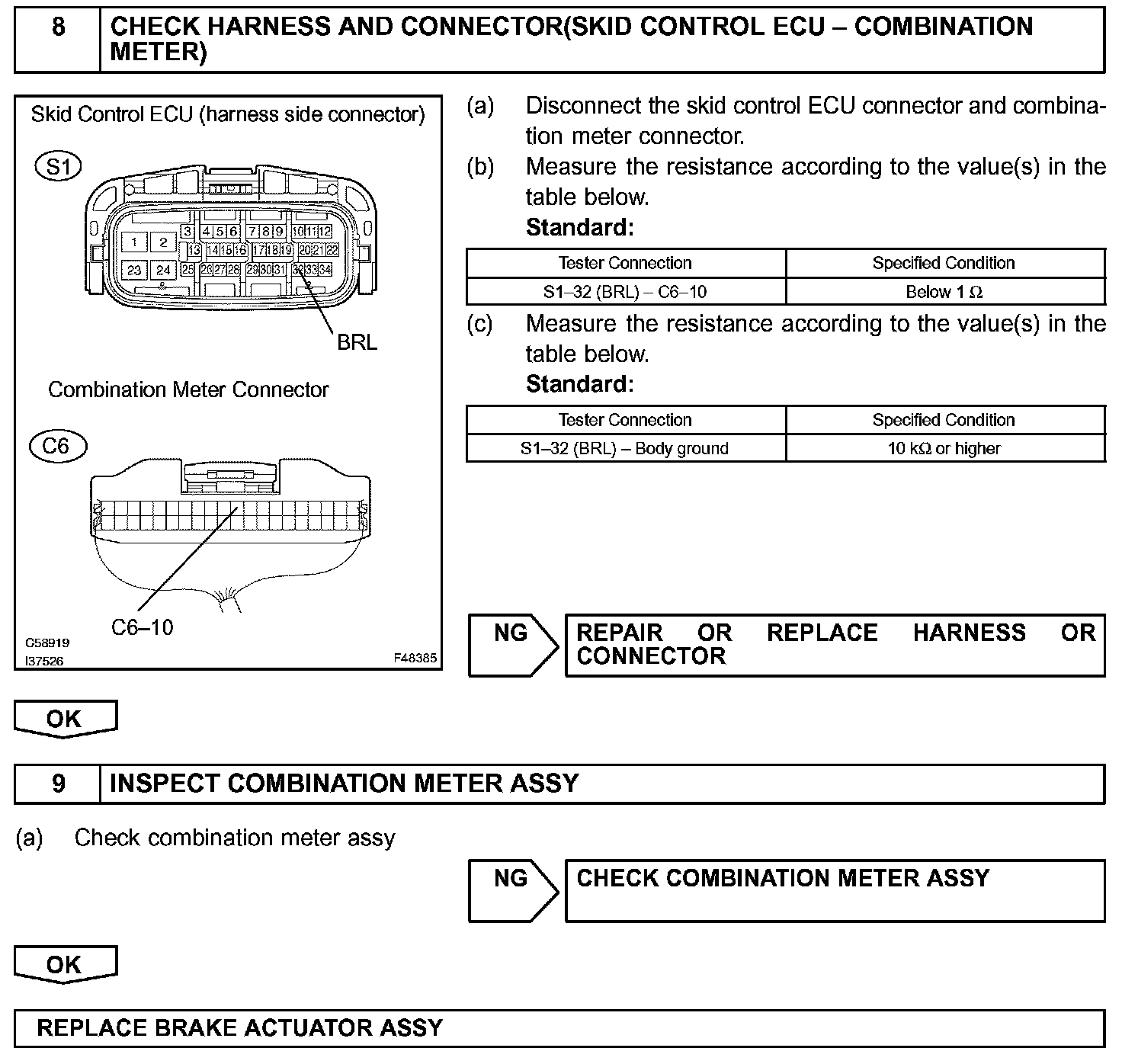

Step 8 - 9:

INSPECTION PROCEDURE

HINT: When releasing the parking brake, set the chocks to hold the vehicle for safety.
