Power Door Lock Switch: Testing and Inspection

1. INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

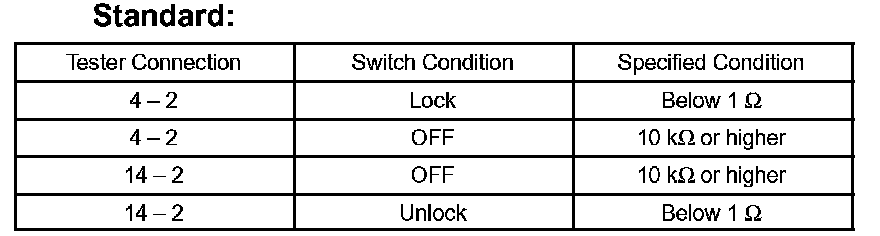

a. Measure the resistance of the door control switch.

If the result is not as specified, replace the switch assembly.

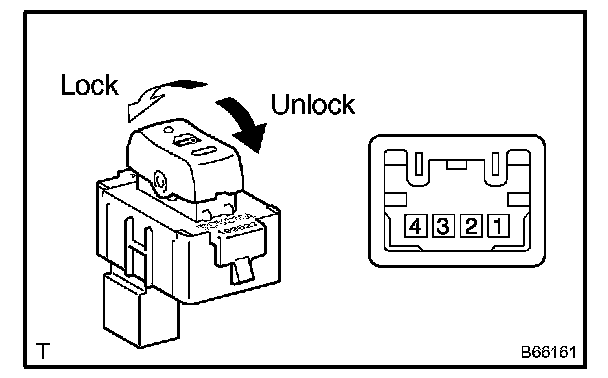

2. DOOR CONTROL SWITCH ASSEMBLY

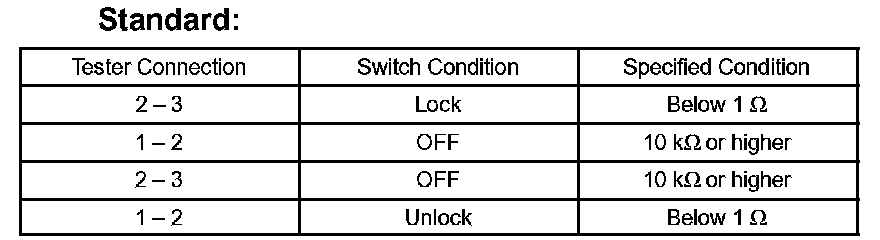

a. Measure the resistance of the switch.

If the result is not as specified, replace the switch assembly.
