Rear Seat
OVERHAUL
HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- A bolt without a torque specification is shown in the standard bolt chart.
CAUTION: Wear protective gloves. Sharp areas on the seatback frame can cause injuries to your hands.
1. REMOVE TONNEAU COVER ASSEMBLY
2. REMOVE DECK BOARD SUB-ASSEMBLY
3. REMOVE REAR SEAT CUSHION ASSEMBLY

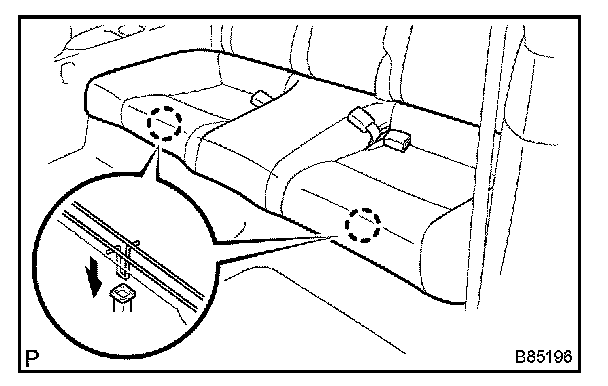

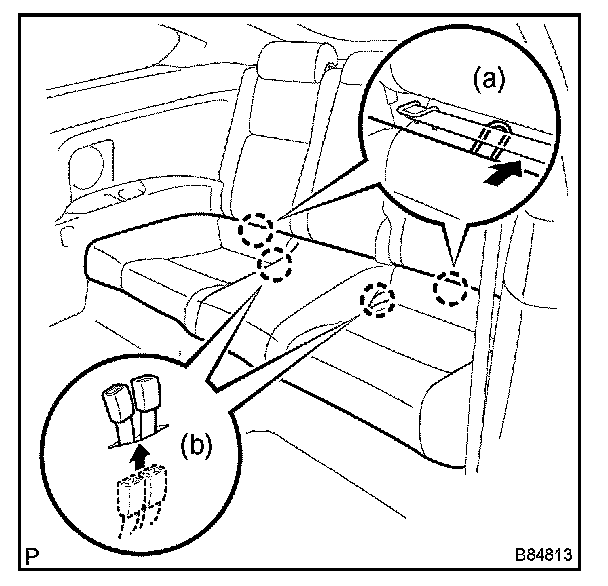

a. Pull up the 2 front portions of the seat cushion.

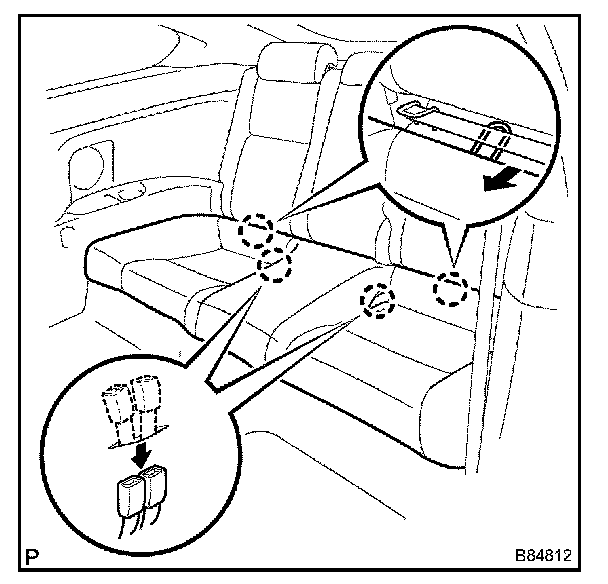

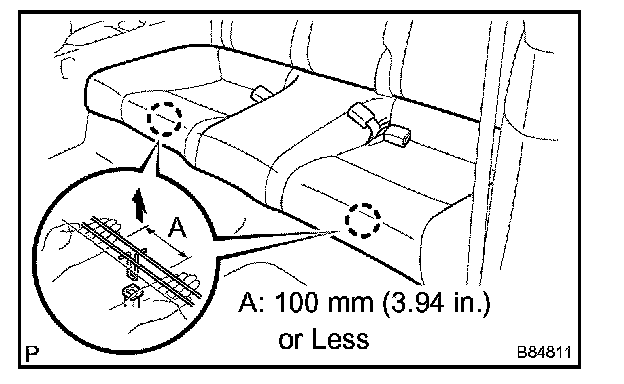

NOTE: The cushion frame deforms easily. To avoid deforming the seat cushion, place your hands near the hook as shown in the illustration, and then pull up on the seat cushion. Do the same for the other hook.
b. Remove the inner belts through the slits on the seat cushion.
c. Remove the 2 seat cushion hooks from the seatback frame. Then remove the seat cushion.
4. REMOVE REAR SEATBACK ASSEMBLY LH

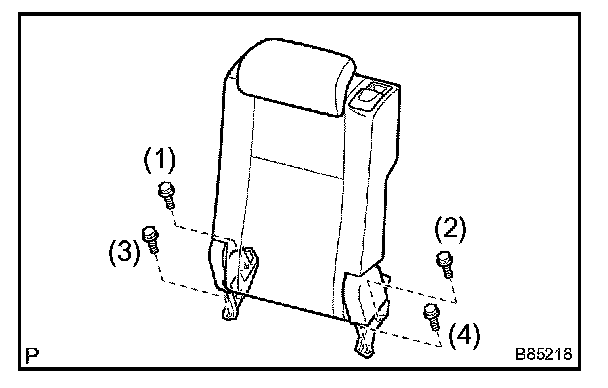

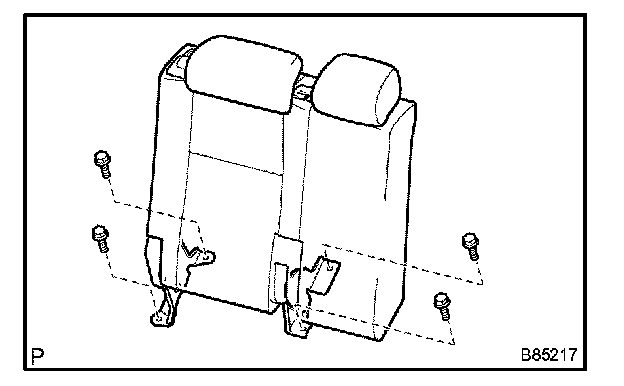

a. Remove the 4 bolts and seatback.
NOTE: Be careful not to damage the vehicle body.
5. REMOVE REAR SEATBACK ASSEMBLY RH
a. Remove the bolt and rear seat 3-point type belt floor anchor.
b. Remove the 4 bolts and seatback.
NOTE: Be careful not to damage the vehicle body.
6. REMOVE REAR SEAT HEADREST ASSEMBLY LH
7. REMOVE REAR SEAT HEADREST ASSEMBLY RH
8. REMOVE REAR SEAT HEADREST ASSEMBLY CENTER
9. REMOVE DECK BOARD NO.1
10. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR COVER
a. Disengage the 12 claws and remove the 3 anchor covers as shown in the illustration.
11. REMOVE CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
a. Remove the 3 bolts and 3 anchor brackets.
12. REMOVE REAR FLOOR BOARD NO.1
13. REMOVE REAR SEAT CUSHION LOCK HOOK
a. Using a screwdriver, disengage the claws and remove the 2 lock hooks.
HINT: Tape the screwdriver tip before use.
14. REMOVE NO.3 SEAT LEG SUB-ASSEMBLY
a. Using a clip remover, remove the 2 clips. Then partially remove the floor carpet.
b. Remove the 4 bolts and seat leg.
15. REMOVE REAR SEAT CUSHION COVER
a. Remove the hog rings and seat cushion cover from the seat cushion pad.
16. REMOVE REAR SEAT RECLINING COVER NO. 2 LH

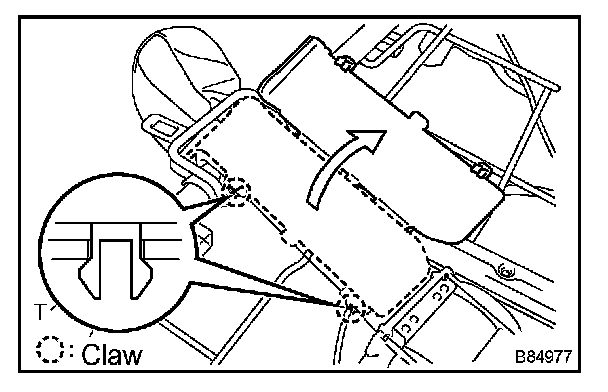

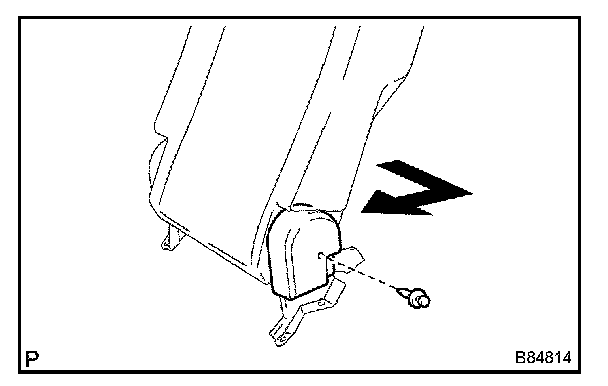

a. Remove the clip and reclining cover in the direction indicated by the arrow in the illustration.
17. REMOVE REAR SEAT RECLINING COVER LH
HINT: Use the same procedures described for the reclining cover No. 2 LH.
18. REMOVE REAR SEAT RECLINING COVER NO. 2 RH
HINT: Use the same procedures described for the LH side.
19. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH

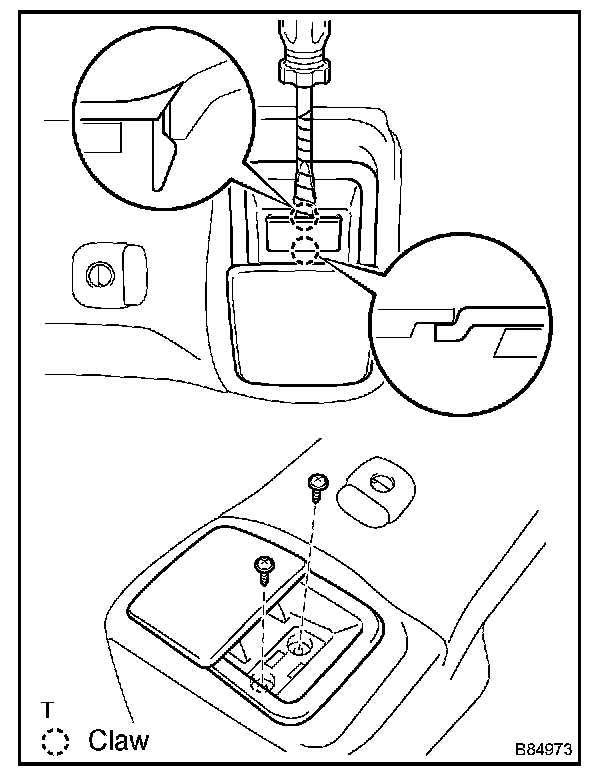

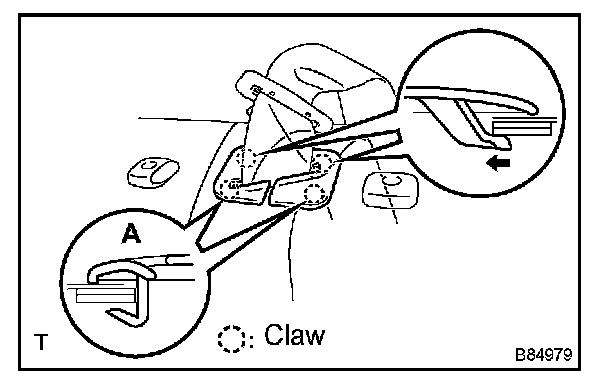

a. Using a screwdriver, disengage the 2 claws and remove the rear seatback lock striker cover.
HINT: Tape the screwdriver tip before use.
b. Remove the 2 screws.

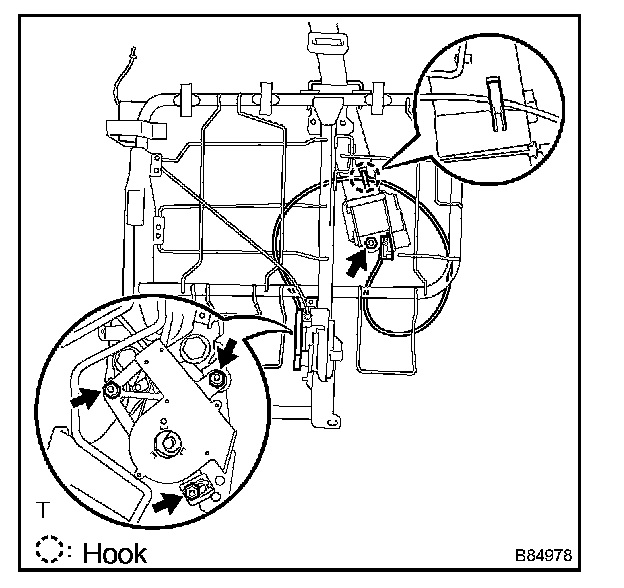

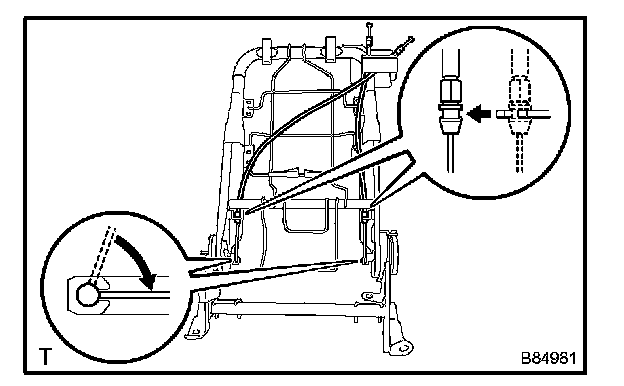

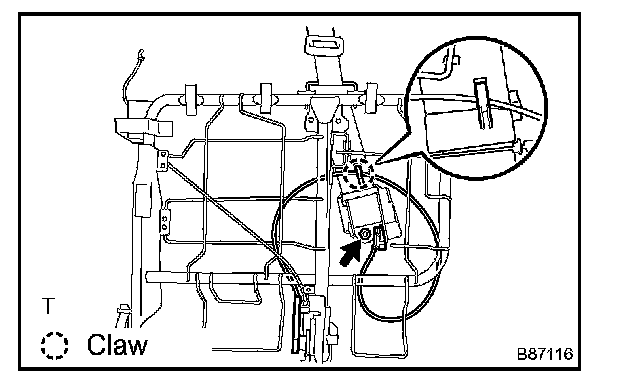

c. Remove the 2 reclining control cables as shown in the illustration. Then remove the control lever.
20. REMOVE REAR SEATBACK COVER LH
a. Remove the hog rings. Open the lower part of the seat-back cover.

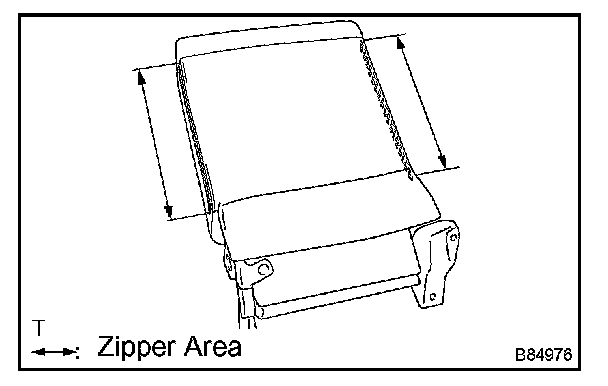

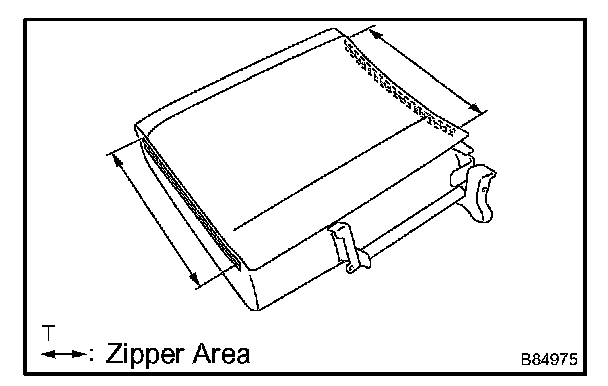

b. Open the zipper.

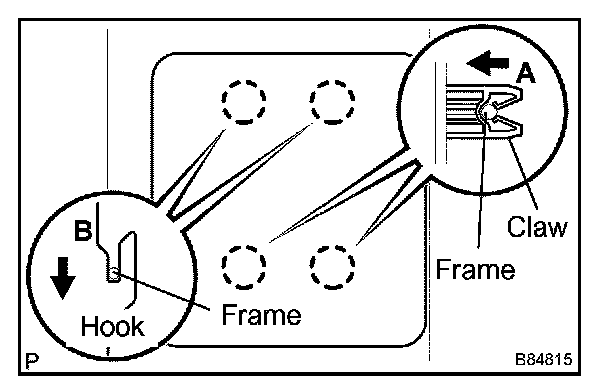

c. Pull the seatback board in the direction indicated by the arrow in the illustration to disengage the 2 claws labeled A.
d. Pull the seatback board in the direction indicated by the arrow in the illustration to disengage the 2 hooks labeled B. Then, remove the seatback board.

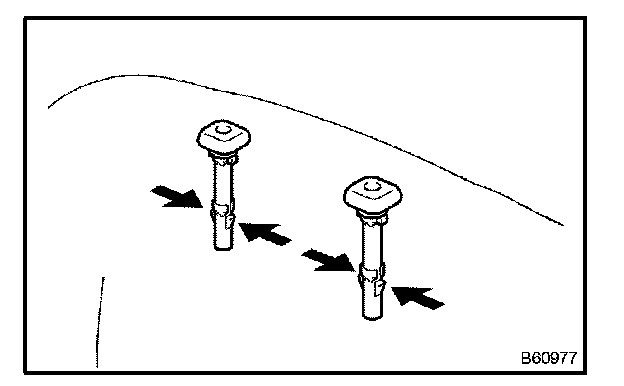

e. Disengage the 4 claws and remove the 2 headrest supports.
f. Remove the seatback cover (together with the pad) from the seatback frame.
g. Remove the hog rings and seatback cover from the seat-back pad.
21. REMOVE REAR SEAT RECLINING CONTROL CABLE LH

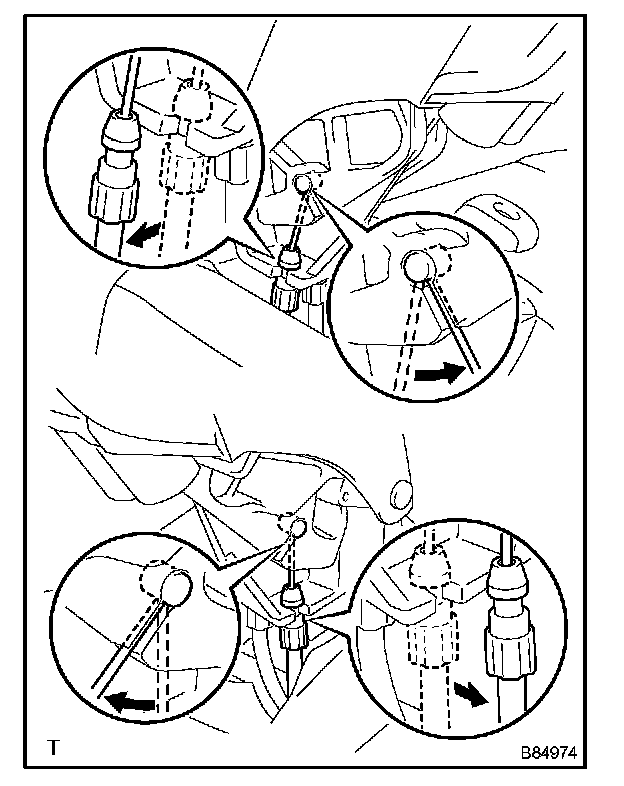

a. Remove the 2 control cables as shown in the illustration.
22. REMOVE REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH
HINT: Use the same procedures described for the LH side.
23. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER

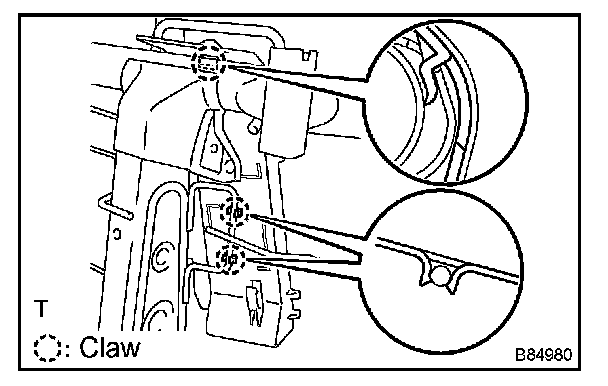

a. Using a screwdriver, disengage the 2 claws labeled A.
HINT: Tape the screwdriver tip before use.
b. Pull the inside cover in the direction indicated by the arrow in the illustration to disengage the claw. Then, remove the bracket cover.
24. REMOVE REAR SEATBACK COVER RH
a. Remove the hog rings. Open the lower part of the seat-back cover.
b. Open the zipper.
c. Pull the seatback board in the direction indicated by the arrow in the illustration to disengage the 2 claws labeled A.
d. Pull the seatback board in the direction indicated by the arrow in the illustration to disengage the 3 hooks labeled B. Then, remove the seatback board.
e. Disengage the 8 claws and remove the 4 headrest supports.
f. Remove the seatback cover (together with the pad) from the seatback frame.
g. Remove the hog rings and seatback cover from the seat-back pad.

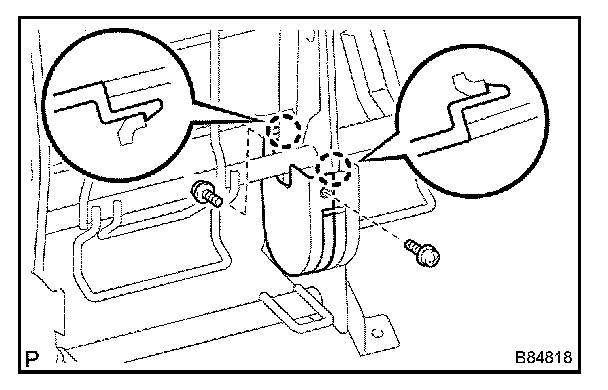

25. REMOVE REAR SEAT SIDE HINGE MALE COVER RH
a. Remove the 2 screws.
b. Using a screwdriver, disengage the 2 claws and remove the male cover.
HINT: Tape the screwdriver tip before use.

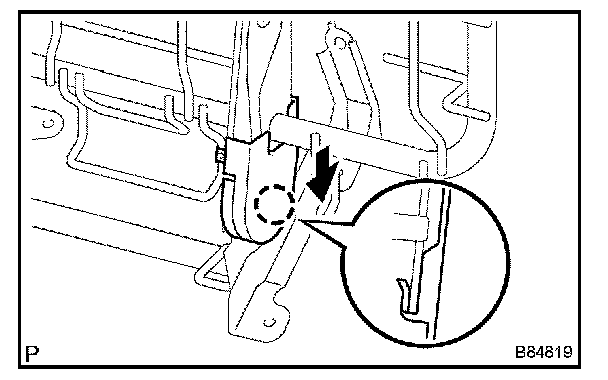

26. REMOVE REAR SEAT SIDE HINGE MALE COVER LH
a. Remove the male cover in the direction indicated by the arrow in the illustration.
27. REMOVE REAR SEAT SIDE HINGE MALE COVER
a. Using a screwdriver, disengage the claws and remove the male cover.
HINT: Tape the screwdriver tip before use.
28. REMOVE REAR SEAT 3-POINT TYPE BELT ASSEMBLY RH
a. Disengage the 2 claws and open the shoulder belt cover.
b. Disengage the hook.
c. Remove the 4 nuts and belt.
29. REMOVE REAR SEAT SHOULDER BELT COVER RH
a. Disengage the 3 claws and remove the belt cover.
30. REMOVE REAR SEAT RECLINING CONTROL CABLE RH
HINT: Use the same procedures described for the LH side.
31. INSTALL REAR SEAT 3-POINT TYPE BELT ASSEMBLY RH
a. Install the belt with the nut as shown in the illustration.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
b. Engage the hook.

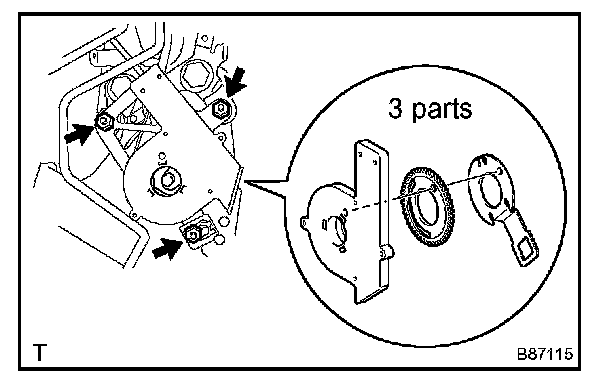

c. Align the holes of the 3 parts in the illustration, and then install the 3 nuts.

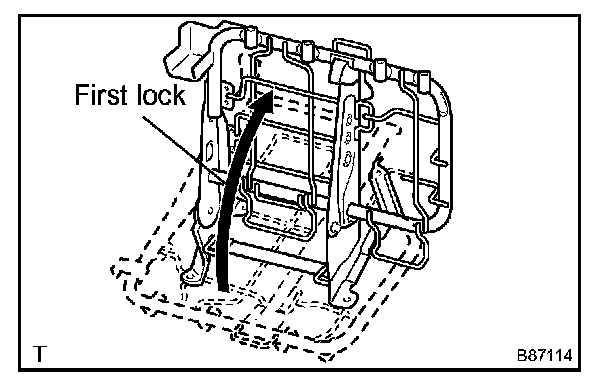

HINT: Before tightening the nuts, raise the seatback to the upright position and make sure the seatback stops in the first lock position of the frame.
32. INSTALL REAR SEATBACK COVER LH
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.

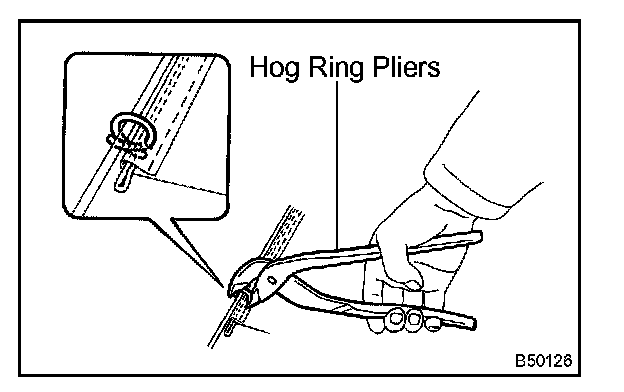

a. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
b. Install the seatback cover (with pad) to the seatback frame.

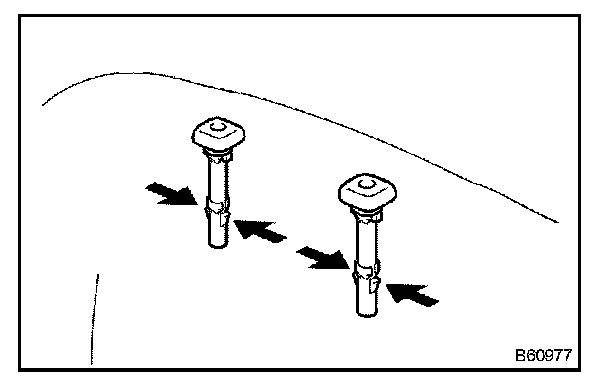

c. Install the 2 headrest supports.
d. Install the seatback board to the seatback frame.
e. Close the zipper.
f. Using hog ring pliers, install the seatback cover (with pad) with new hog rings.
33. INSTALL REAR SEATBACK COVER RH
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
a. Using hog ring pliers, install the seatback cover to the seatback pad with new hog rings.
b. Install the seatback cover (with pad) to the seatback frame.
c. Install the 2 headrest supports.
d. Install the seatback board to the seatback frame.
e. Close the zipper.
f. Using hog ring pliers, install the seatback cover (with pad) with new hog rings.
34. INSTALL REAR SEAT CUSHION COVER
a. Using hog ring pliers, install the seat cushion cover to the seat cushion pad with new hog rings.
NOTE:
- Be careful not to damage the cover.
- When installing the hog rings, take care to minimize wrinkles as much as possible.
35. INSTALL NO.3 SEAT LEG SUB-ASSEMBLY
a. Install the seat leg with the 4 bolts.
Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)
36. INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR BRACKET
a. Install the 3 brackets with the 3 bolts.
Torque: 19.6 N.m (200 kgf.cm, 14 ft.lbf)
37. INSTALL REAR SEATBACK ASSEMBLY LH
a. Place the seat in the cabin.
NOTE: Be careful not to damage the vehicle body.

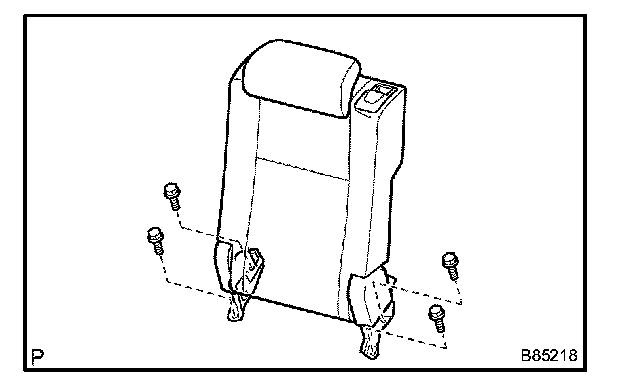

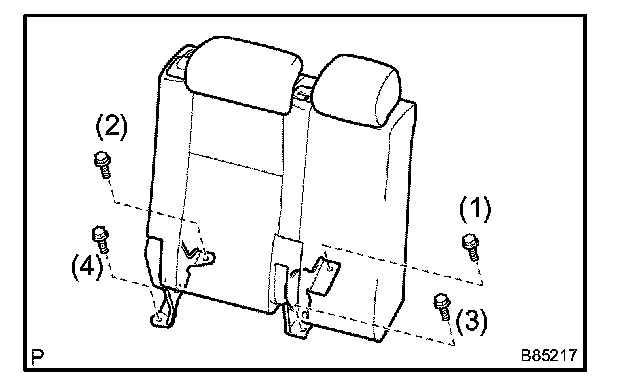

b. Tighten the 4 bolts in the order indicated in the illustration.
Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)
38. INSTALL REAR SEATBACK ASSEMBLY RH
a. Place the seat in the cabin.
NOTE: Be careful not to damage the vehicle body.
b. Tighten the 4 bolts in the order indicated in the illustration.
Torque: 40 N.m (408 kgf.cm, 30 ft.lbf)
c. Install the rear seat 3-point type belt floor anchor with the bolt.
Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)
39. INSTALL REAR SEAT CUSHION ASSEMBLY
a. Attach the 2 seat cushion's rear hooks to the seatback frame.
b. Insert the inner belts through the slits on the seat cushion.
c. Attach the 2 seat cushion's front hooks to the rear seat cushion lock hooks.
HINT: Confirm that the seat cushion is firmly.
