Body - Moonroof Wind Deflector Rattle

NVH
NV002-06

January 30, 2006

Title:
WIND DEFLECTOR RATTLE

Models:
'05 Scion tC

Introduction

Some customers may experience a rattle noise from the moon roof wind deflector pivot points. A new spacer has been designed to help reduce this condition in that area.

Applicable Vehicles
^ 2005 model year Scion tC vehicles produced BEFORE the Production Change Effective VIN shown below.





Production Change Information

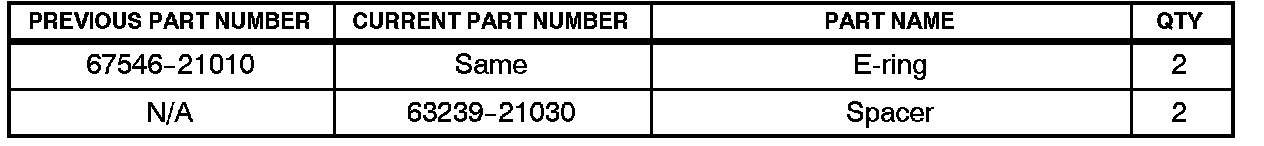

Parts Information





Required Tools & Material

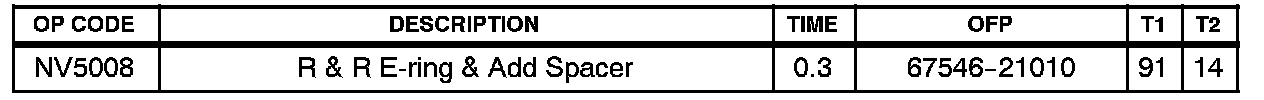

Warranty Information

Applicable Warranty:

This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

Repair Procedure

NOTE:
Perform the Repair Procedure on both the LH and RH side.

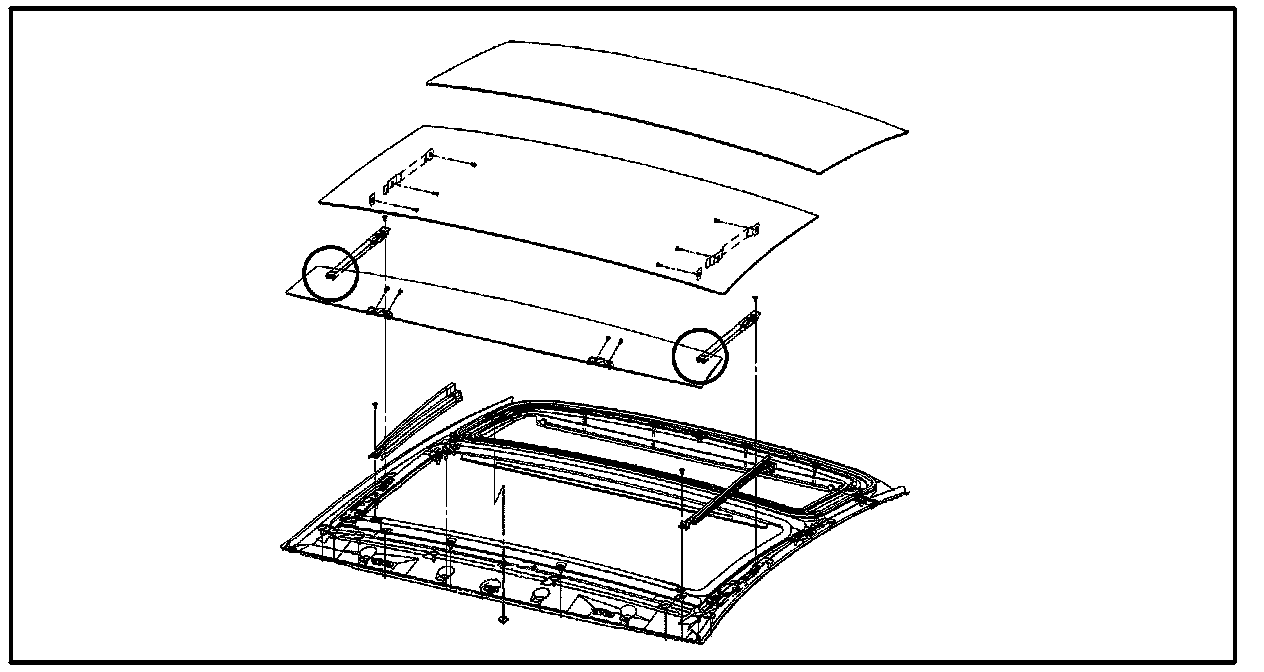

1. Fully open the moon roof to access the wind deflector lift arm pivot points.

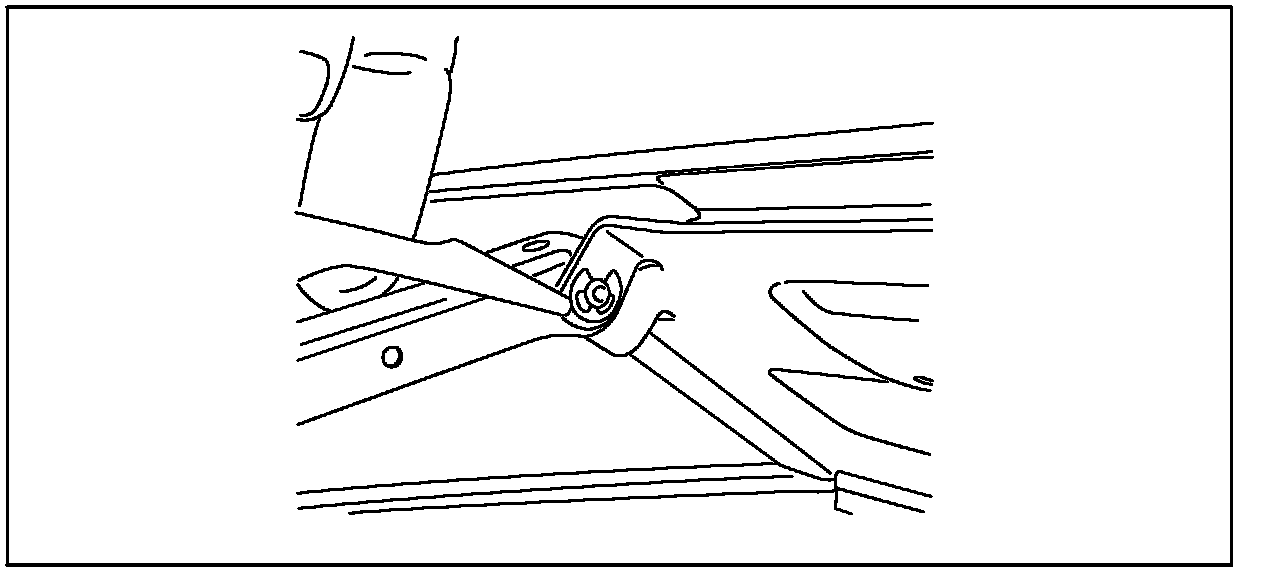

2. Using a small flat head screwdriver or pick, remove the E-ring from the pivot pin.

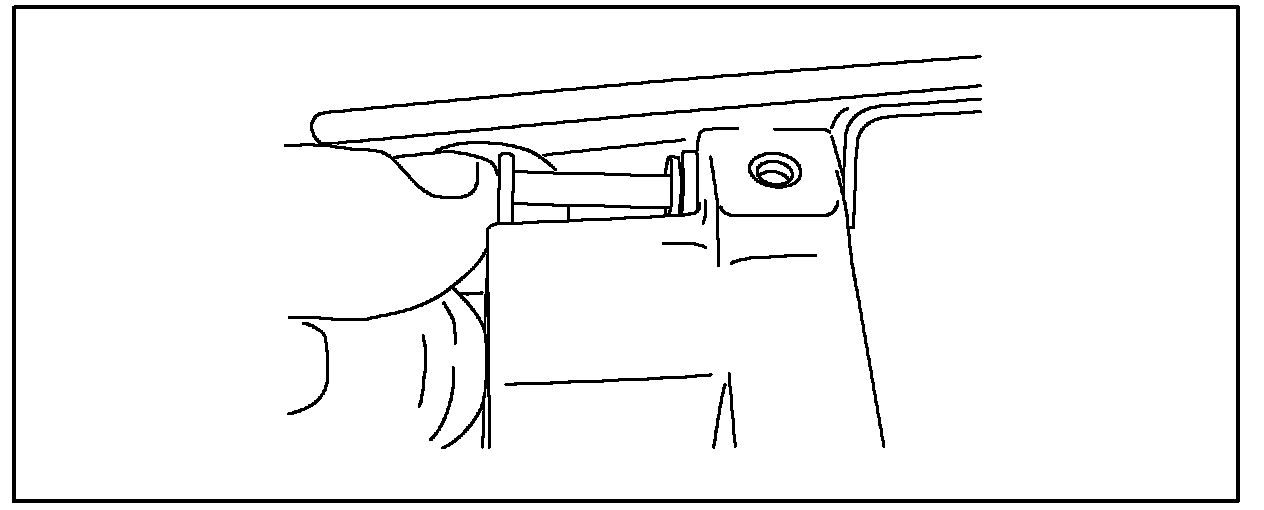

3. Slide the pivot pin out.

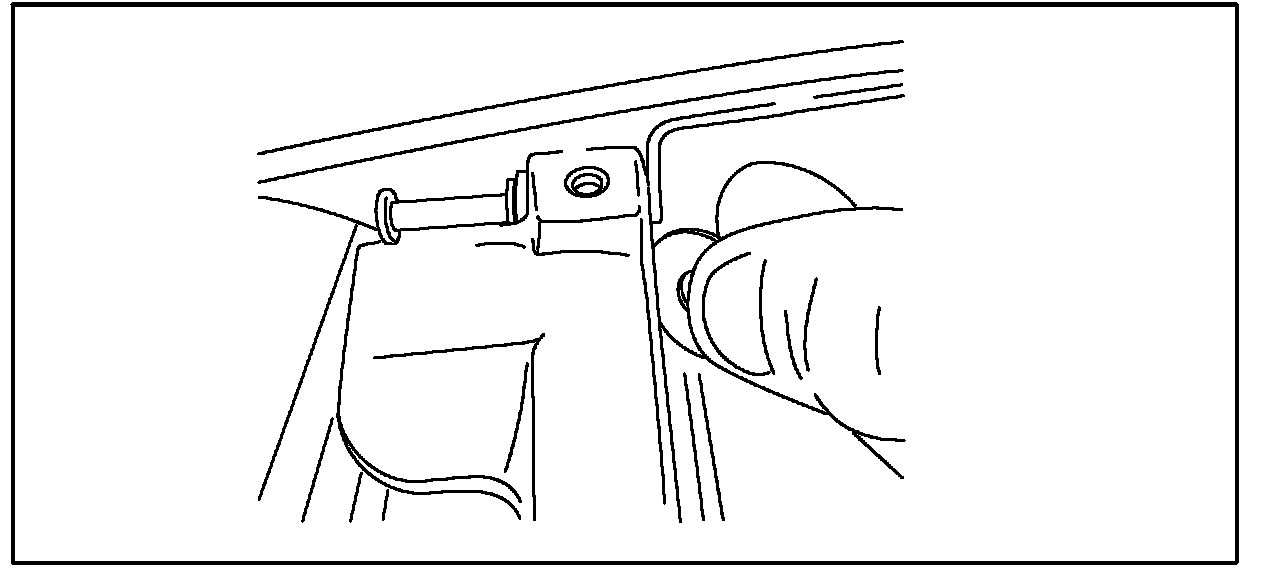

4. Install the spacer between the lift arm and the wind deflector bracket.





5. Apply body grease to the pivot pin and reinstall using the NEW E-ring.
