Outer Rear View Mirror Assembly LH

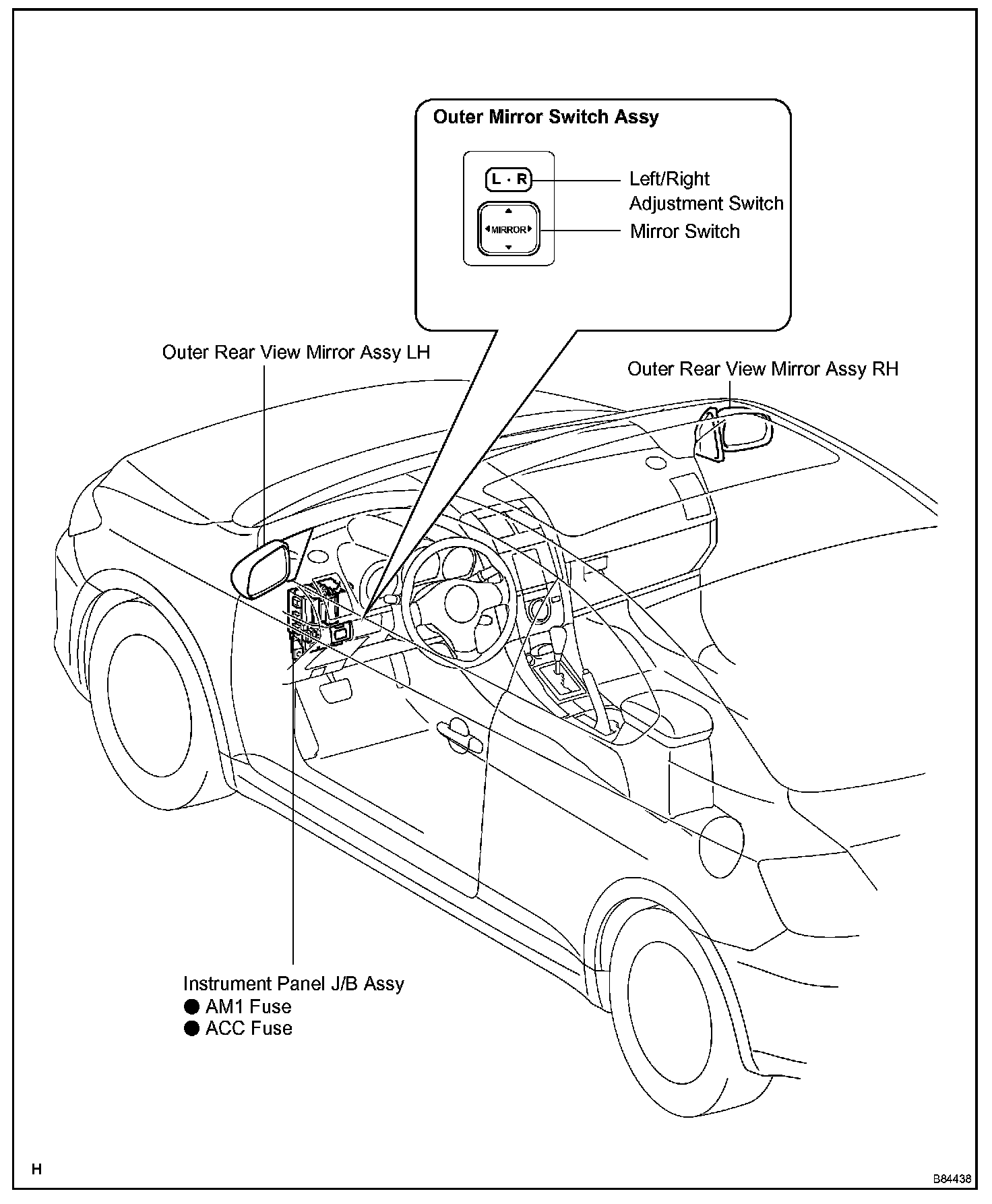

Power Mirror Control System:

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- Use the same procedures for the RH side and LH side.

CAUTION: If the mirror shatters during removal, flying debris may cause injuries. Be sure to wear protective clothing, gloves, glasses, etc. when performing these procedures.

NOTE: When replacing the mirror body, prevent damage to the mirror body by placing a protective cloth on the work area.

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH
2. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY LH




a. Disconnect the connector.

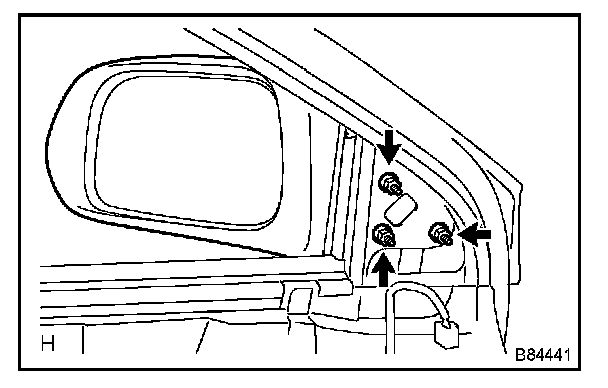

b. Remove the 3 nuts and mirror.

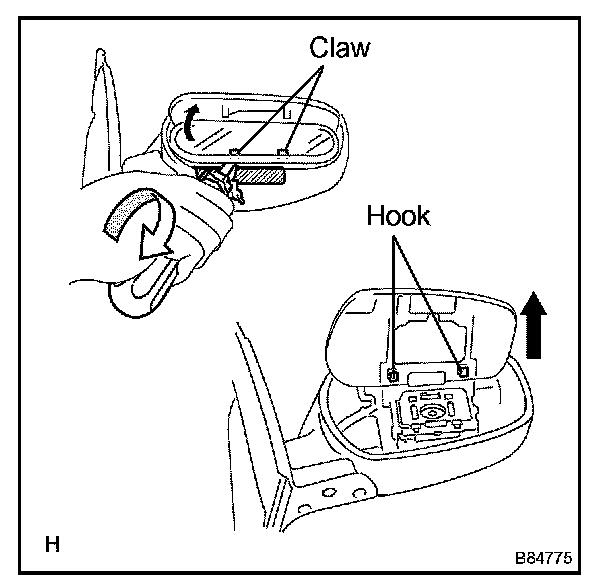

c. Face the mirror holder upward and look at the bottom of the mirror. Find the 2 grooves between the mirror holder and holder base. Insert a screwdriver into a groove and twist it to release the claw. Then repeat for the other groove.

HINT: Tape the screwdriver tip before use.

CAUTION: To prevent the mirror from shattering and causing flying debris, apply tape to the front of the mirror.

NOTE: To prevent damage to the vehicle, place protective tape on the mirror holder base near the edge of the lower of the mirror. A piece of cloth can be used.

d. Lift up the lower part of the mirror holder and then release the 2 hooks on the top of the mirror.
e. Remove the mirror holder.

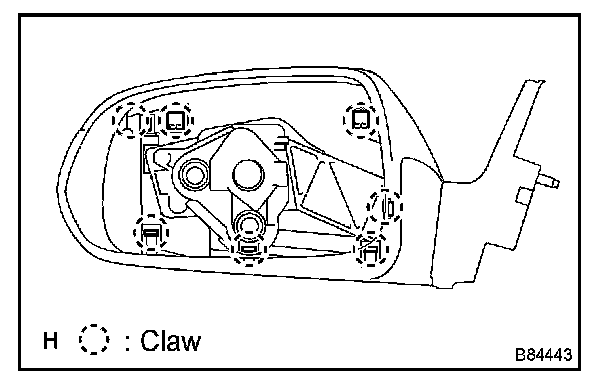

f. Disengage the 7 claws.
g. Remove the mirror garnish.

3. REMOVE SIDE TURN SIGNAL LAMP LENS LH




a. Disconnect the connector.

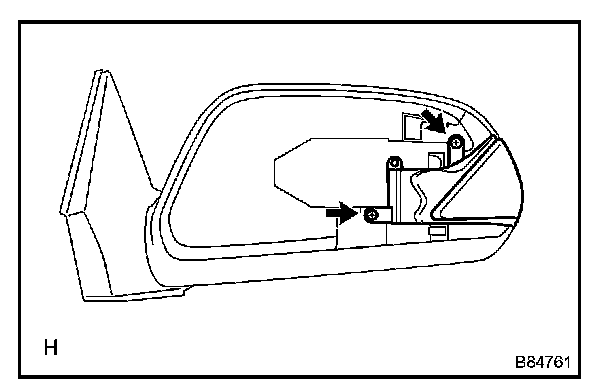

b. Remove the 2 screws and lens.

4. INSTALL SIDE TURN SIGNAL LAMP LENS LH

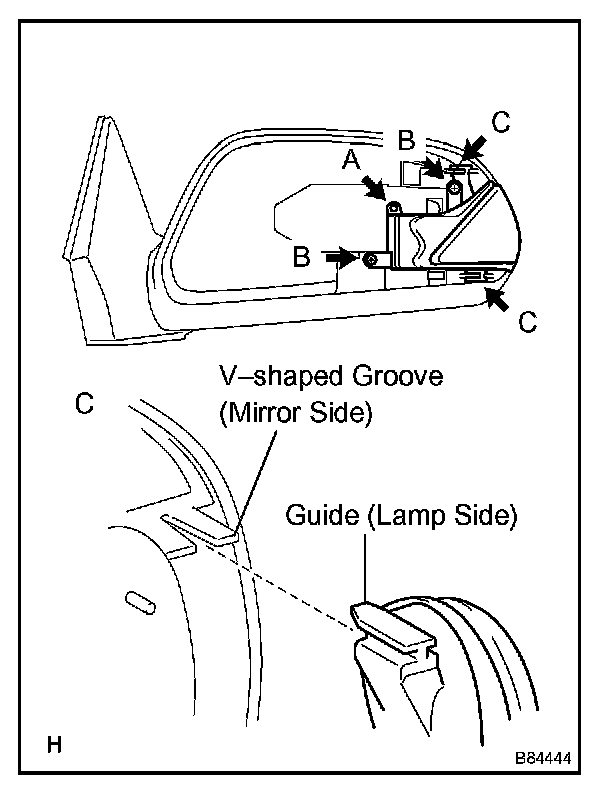

a. First set the lens position by inserting the lens peg to the location labeled A in the illustration. Then insert the lens guide to the V-shaped groove as shown in C in the illustration.
b. Install the lens with the 2 screws labeled B.
c. Connect the connector.
d. Install the mirror guide.




e. Install the mirror holder.

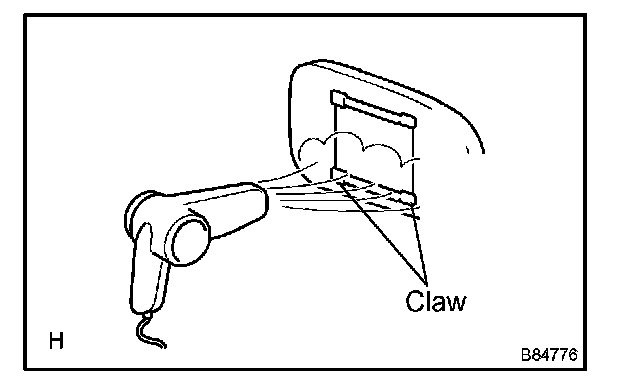

HINT: Before installing the mirror holder, use a dryer to sufficiently heat the backside of the mirror holder where the claws are located.

NOTE: If the ambient temperature is low and the claws are not heated before installing, the claws may be broken.

5. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH




a. Install the mirror with the 3 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Connect the connector.
