Home >> Scion >> 2005 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Index

Symptom Index

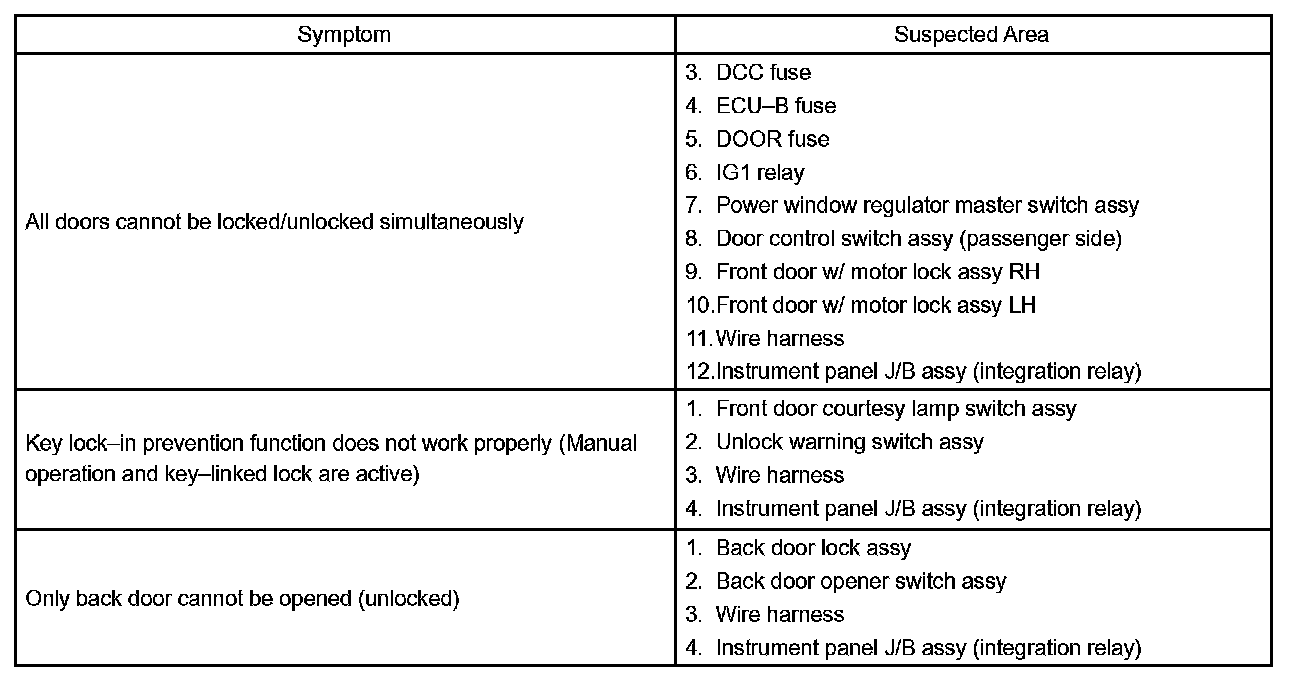

PROBLEM SYMPTOMS TABLE

Problem Symptoms Table:






HINT: After inspecting the power window regulator master switch, reset the power window motor.
