All Doors Cannot Be Locked/Unlocked

ALL DOORS CANNOT BE LOCKED/UNLOCKED SIMULTANEOUSLY

CIRCUIT DESCRIPTION
The integration relay drives the door lock motors with switch signals from driver/passenger side, door control switch, and driver/passenger side door key cylinder.

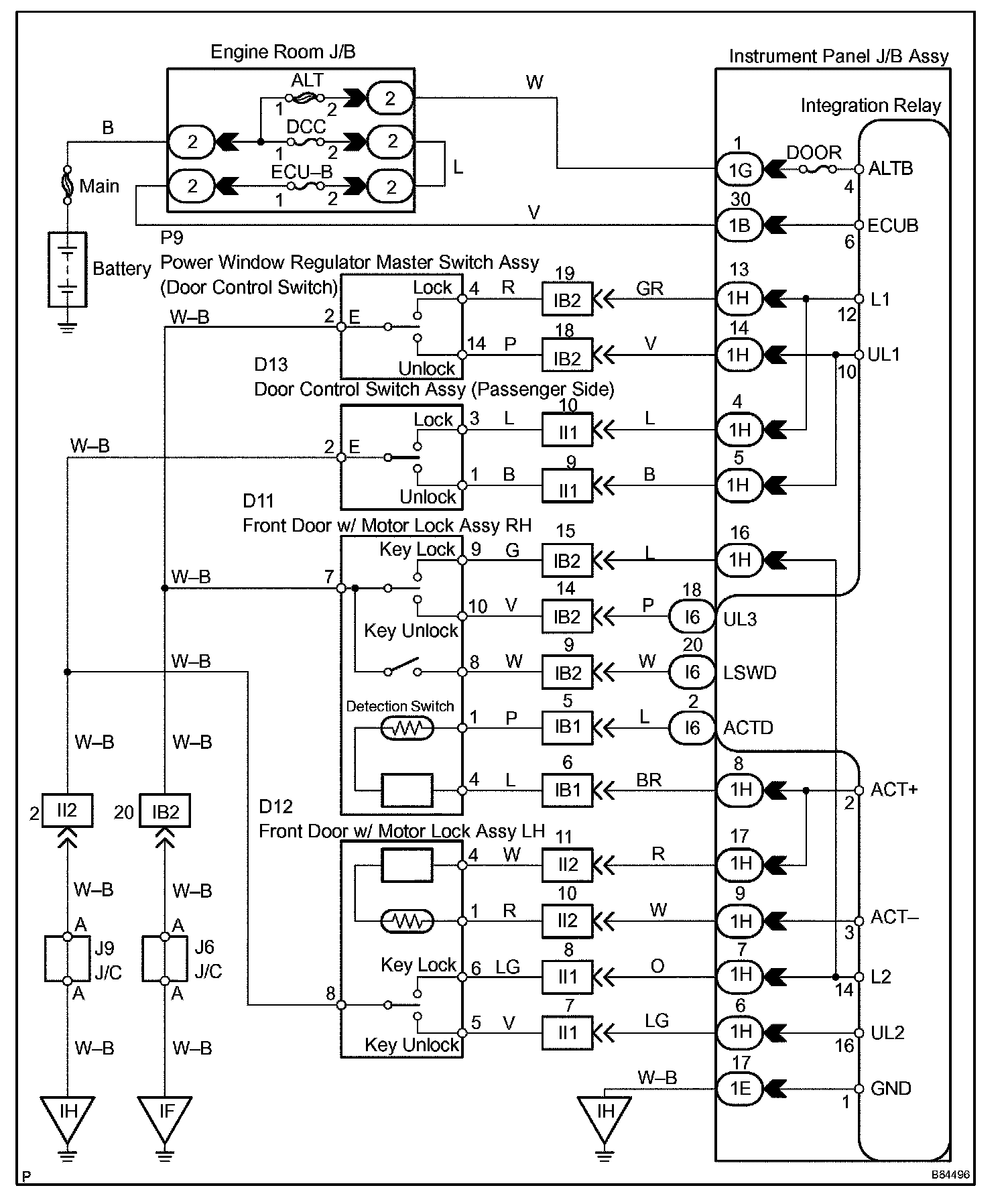

Wiring Diagram:

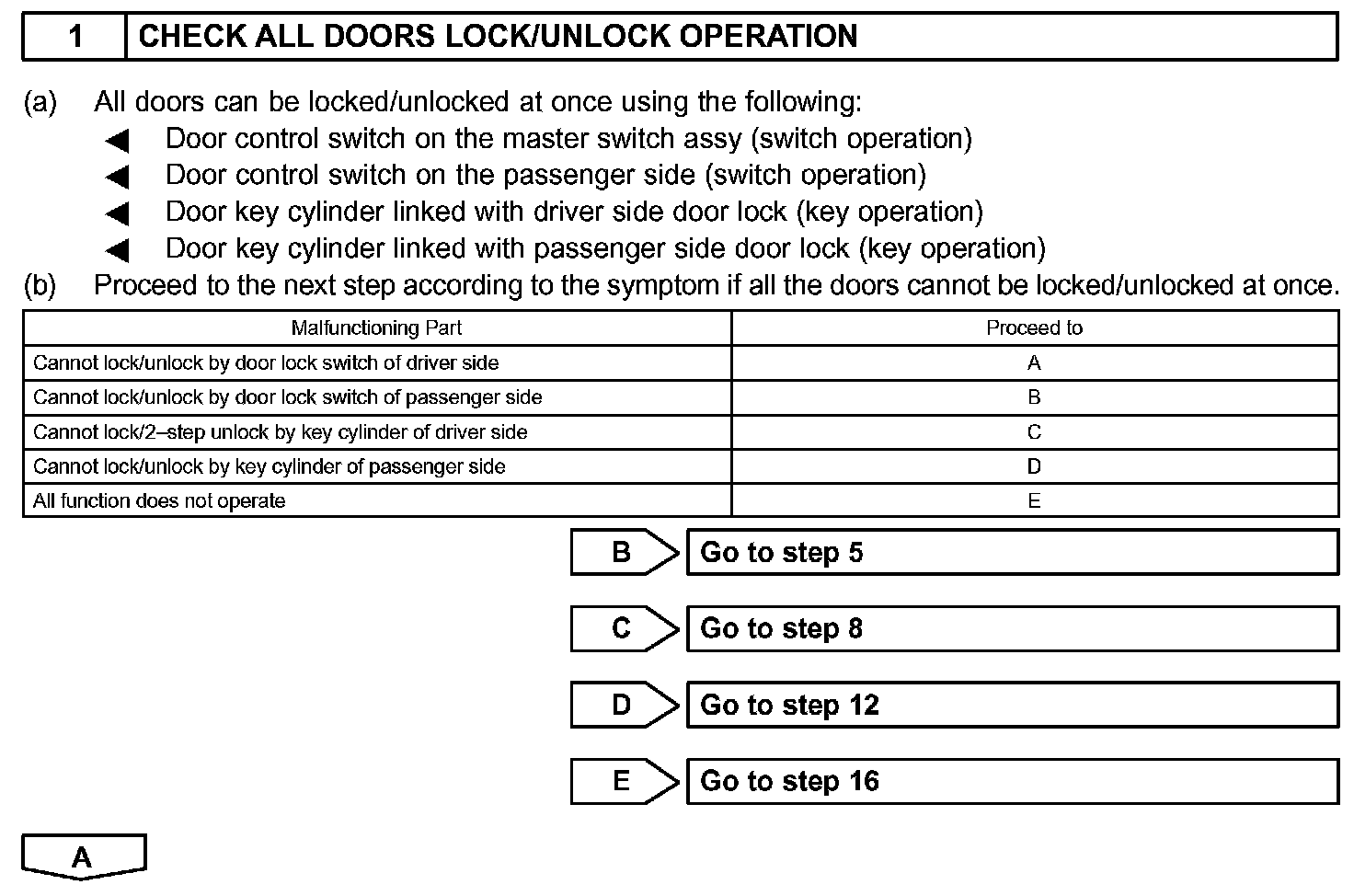

Step 1:

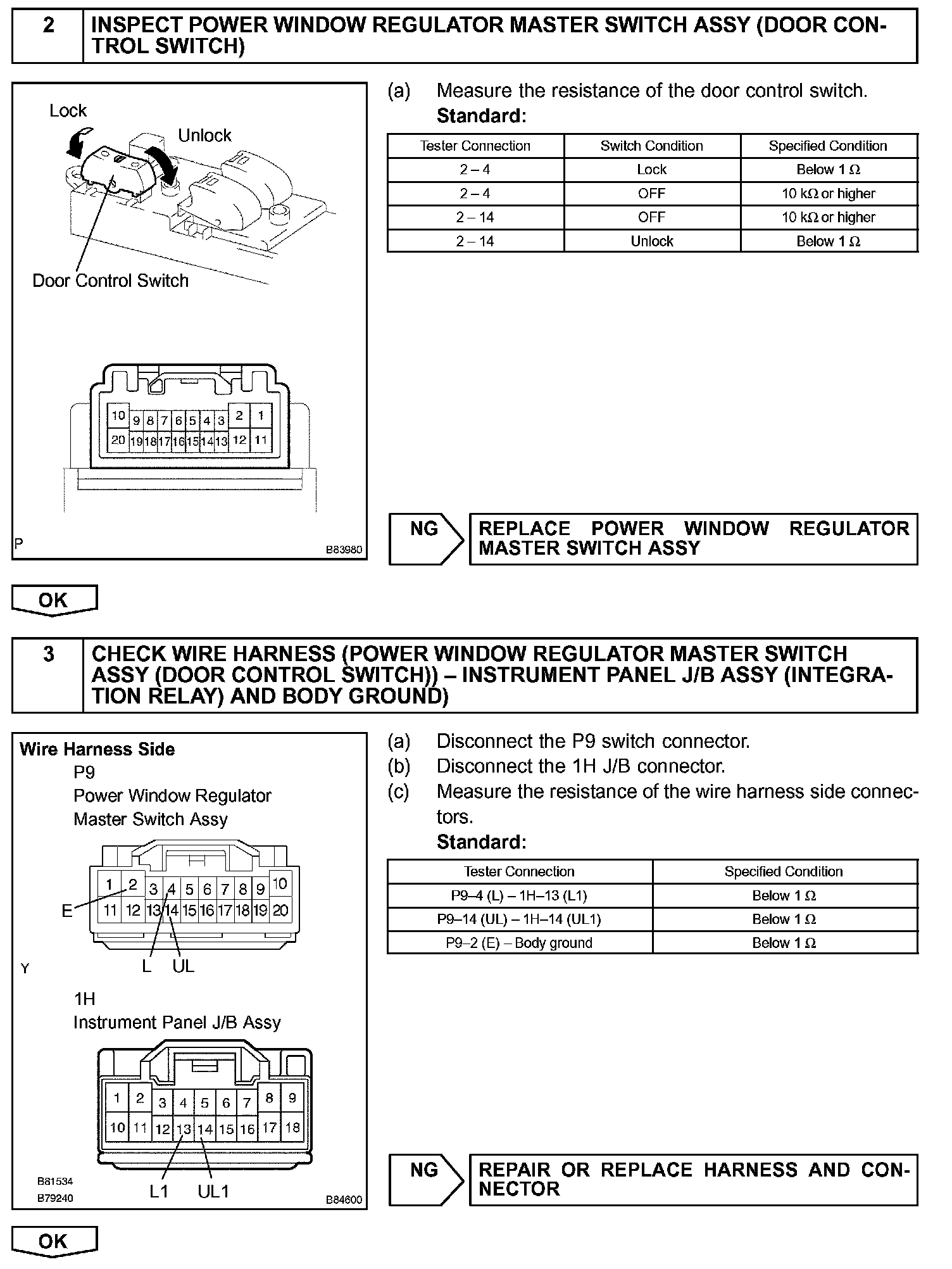

Step 2 - 3:

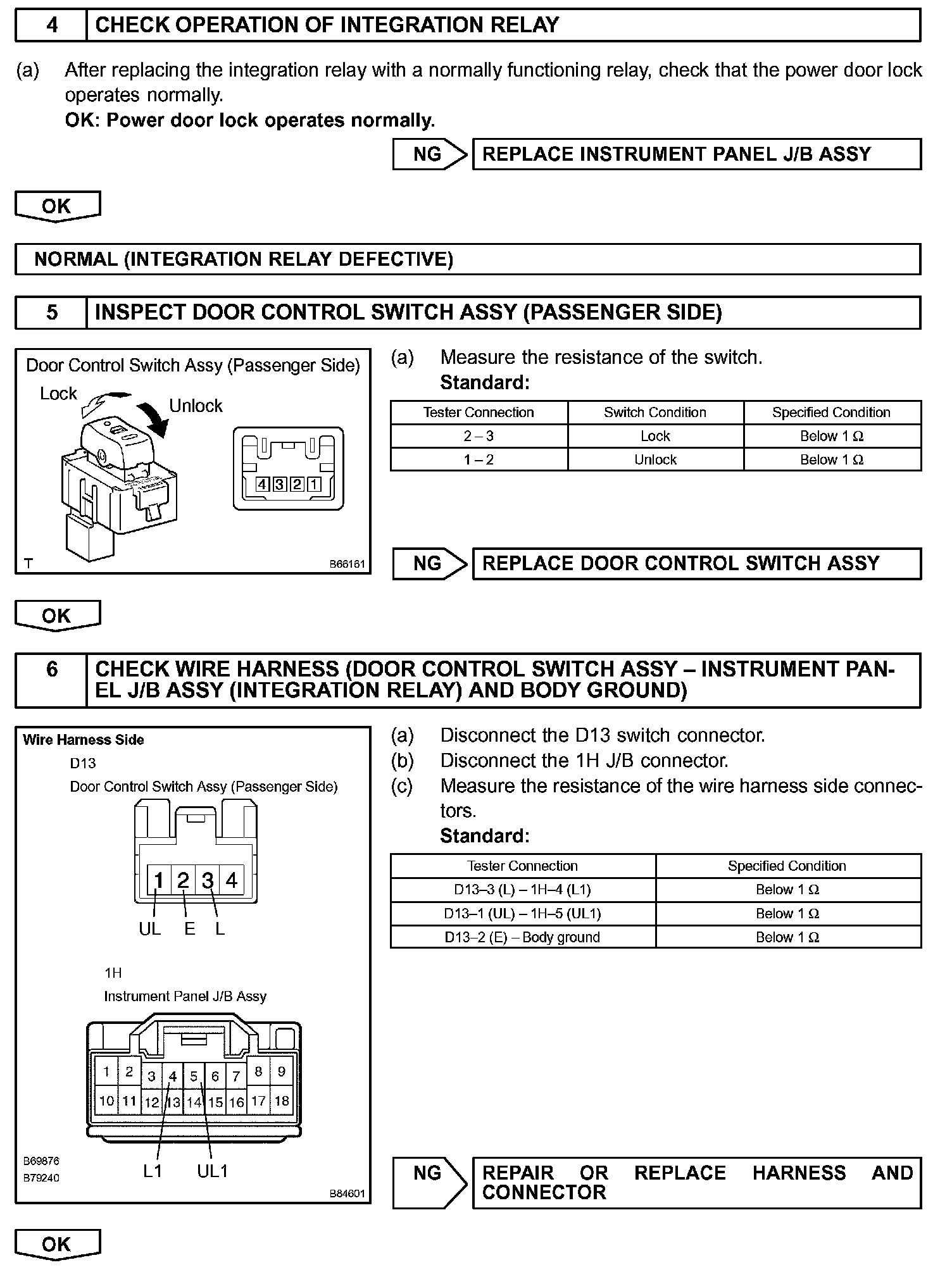

Step 4 - 6:

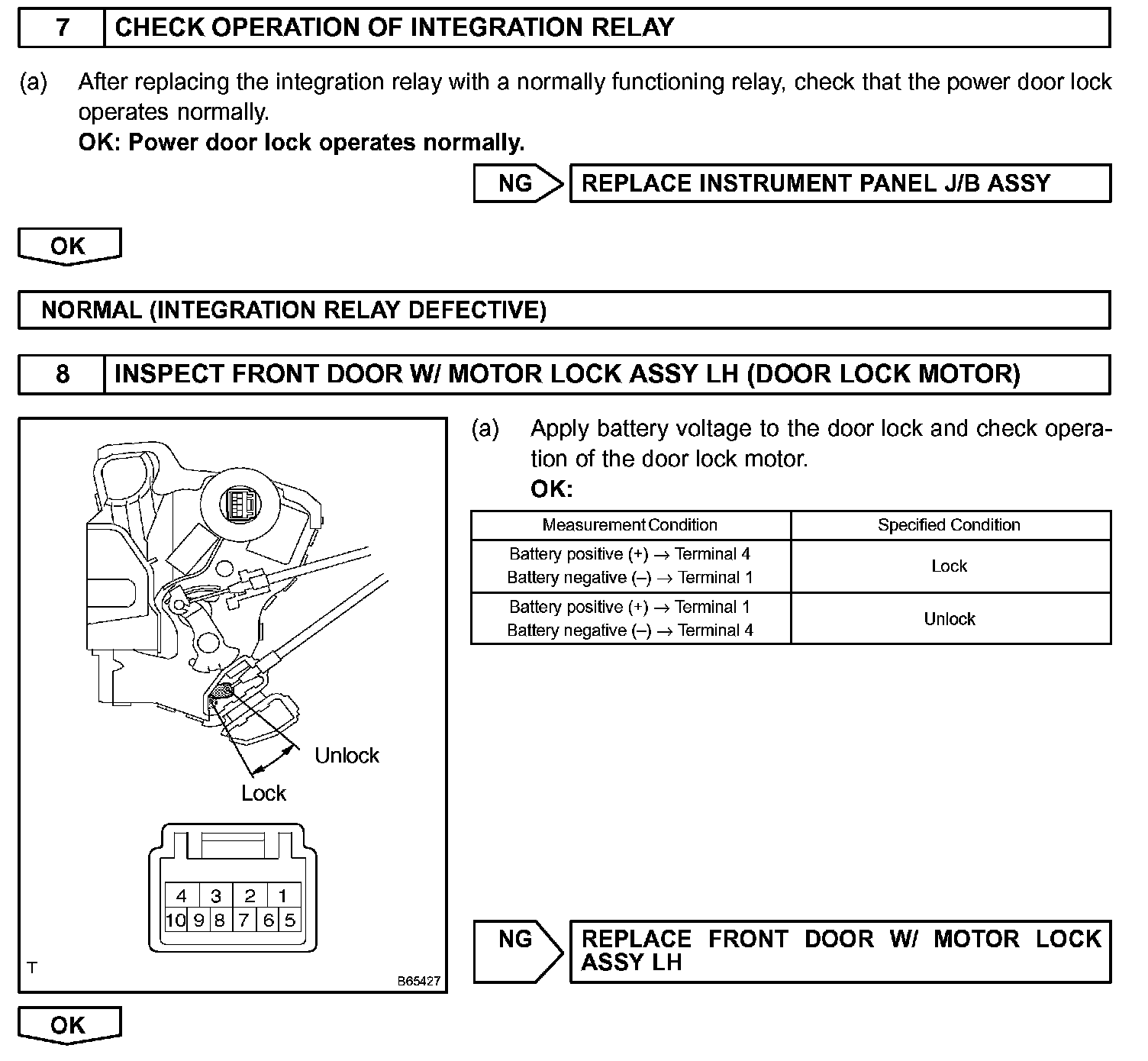

Step 7 - 8:

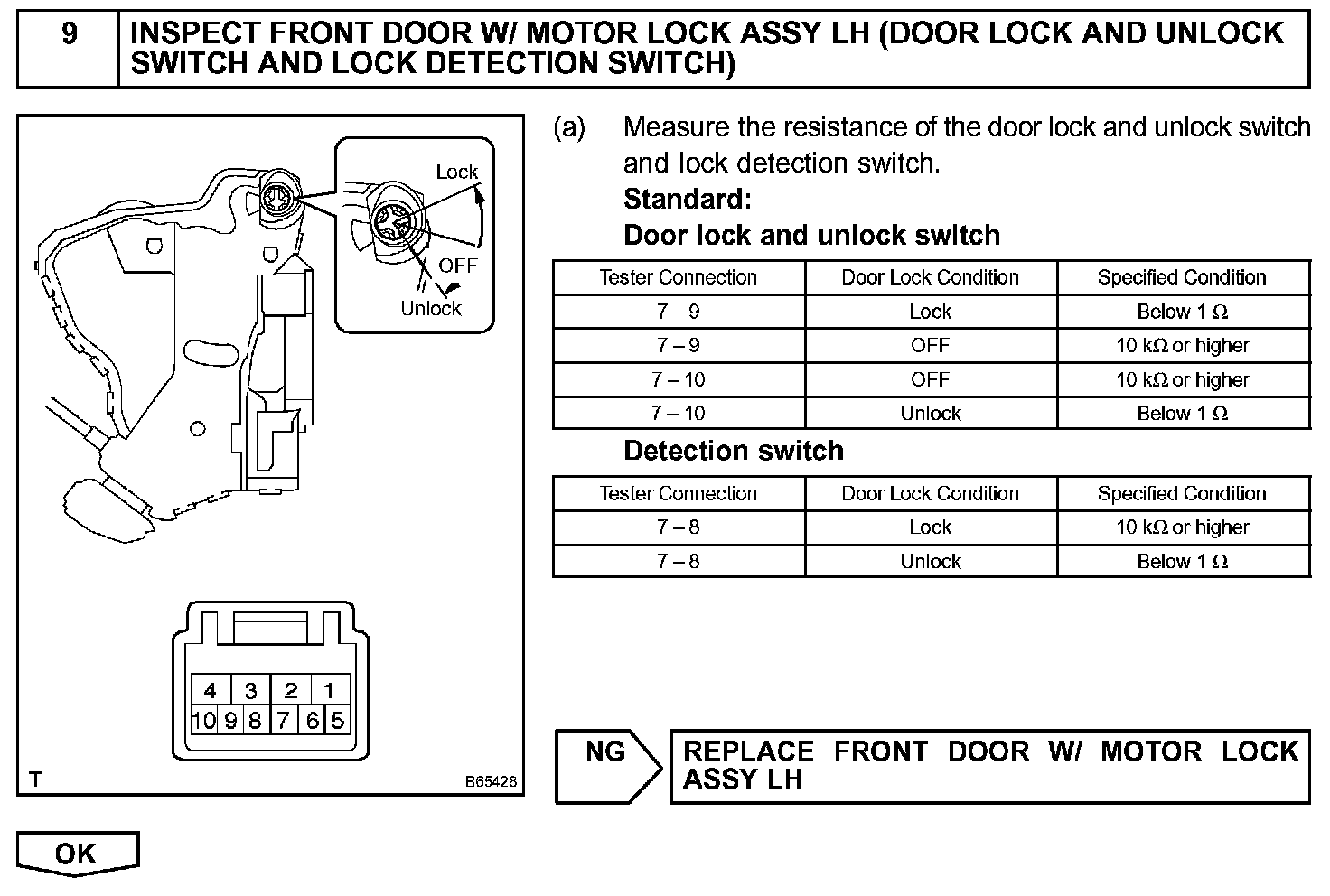

Step 9:

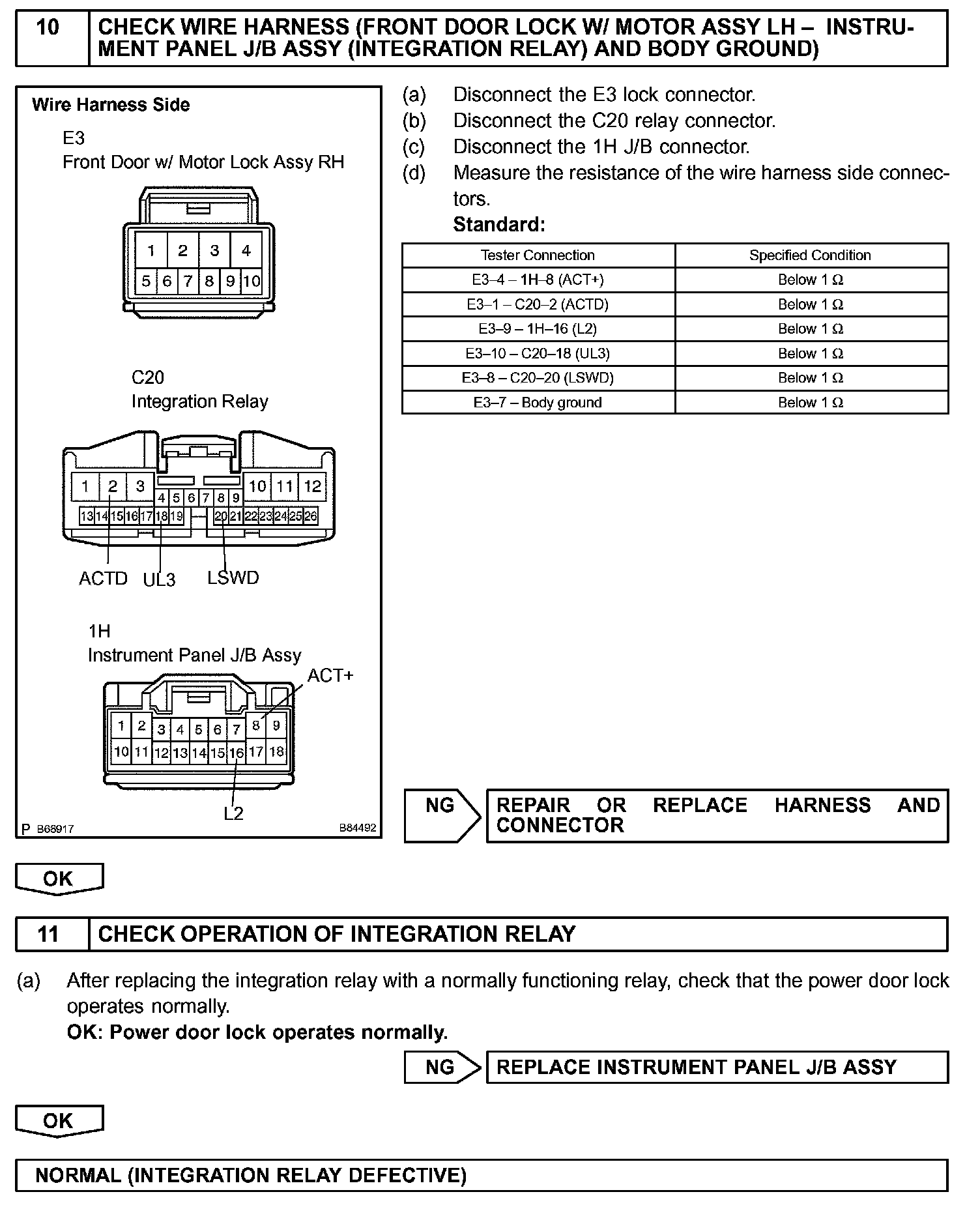

Step 10 - 11:

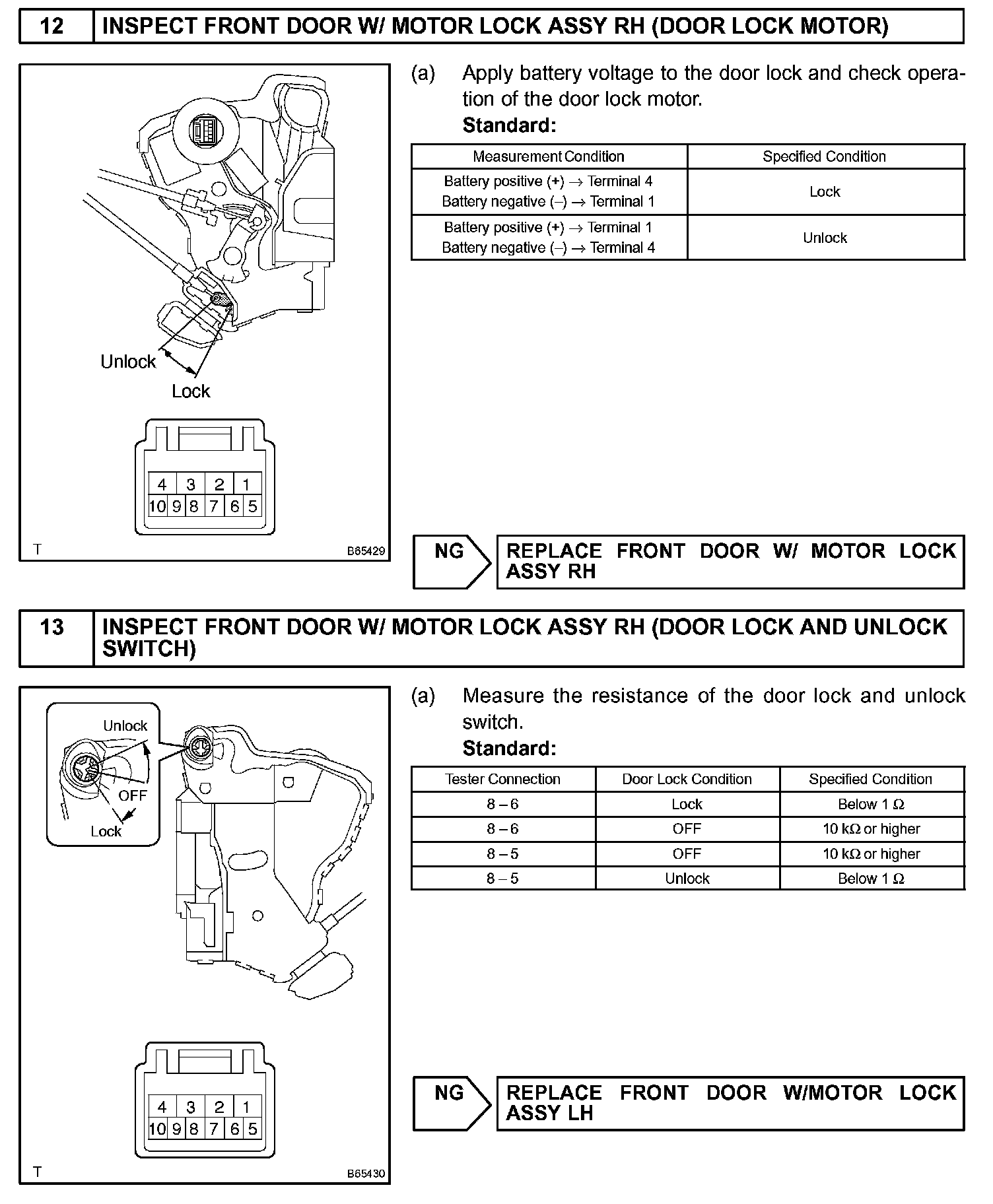

Step 12 - 13:

Step 14 - 16:

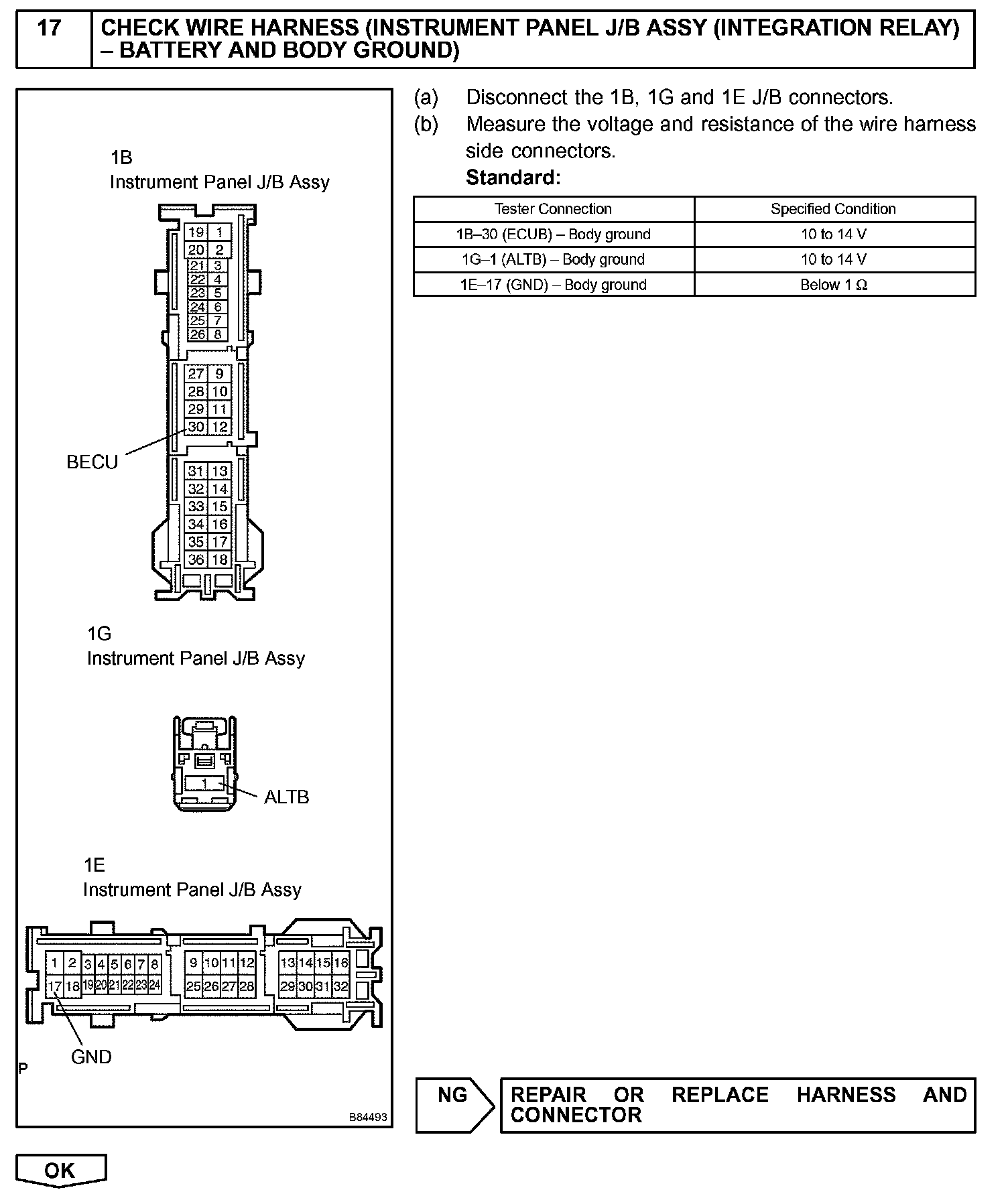

Step 17:

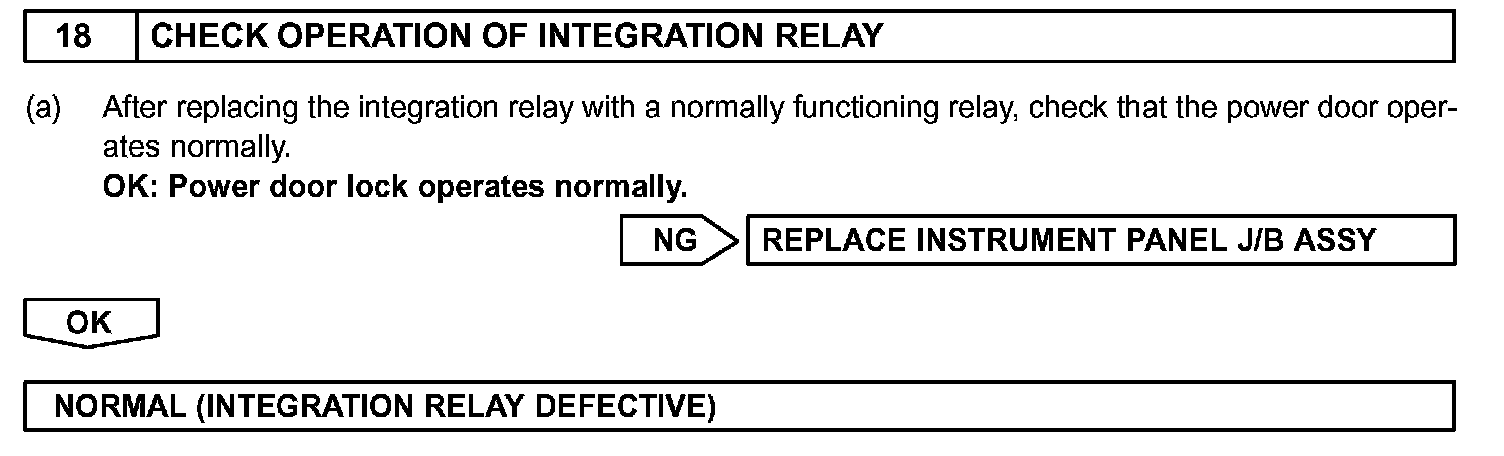

Step 18:

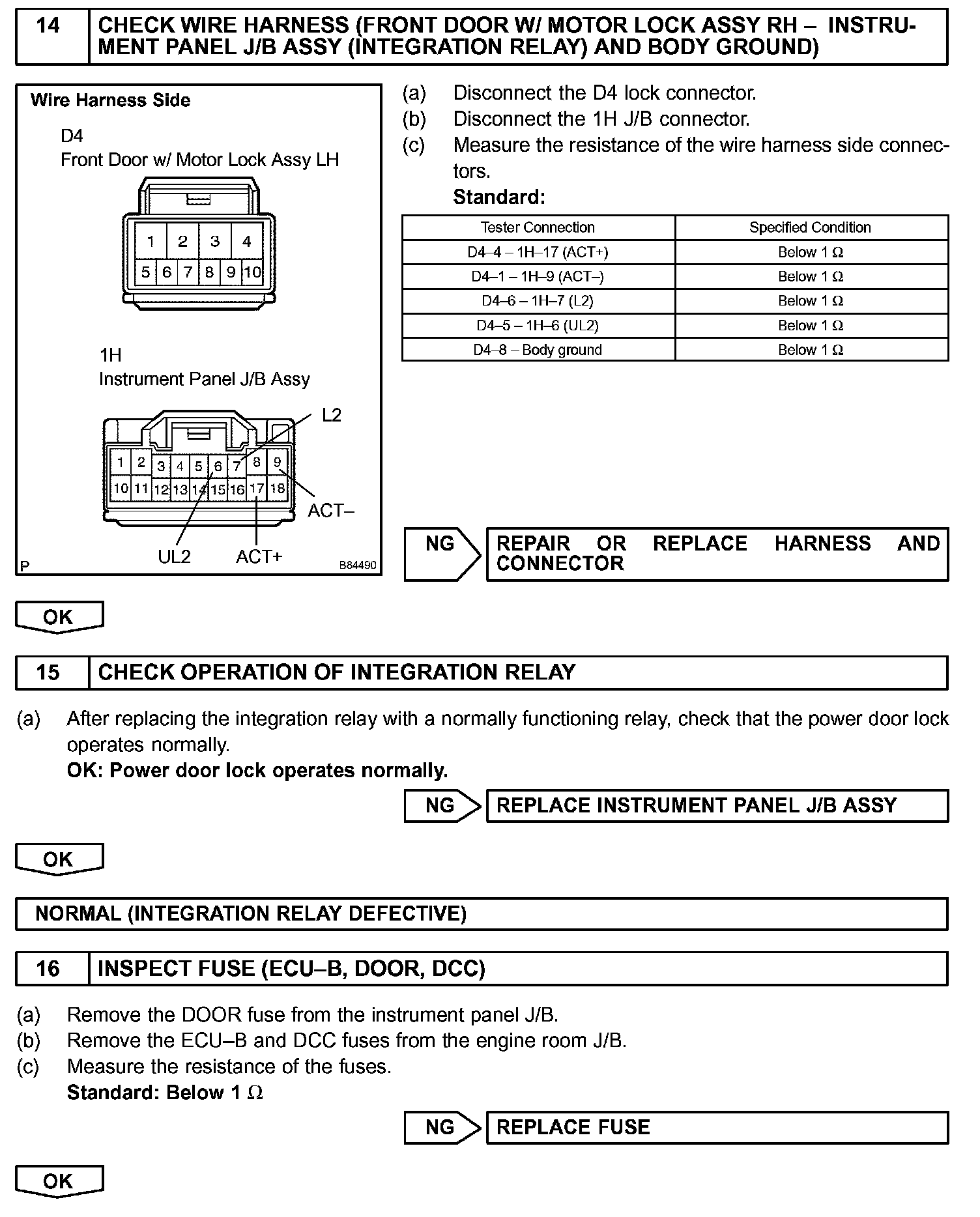

INSPECTION PROCEDURE
