Pinout Values and Diagnostic Parameters

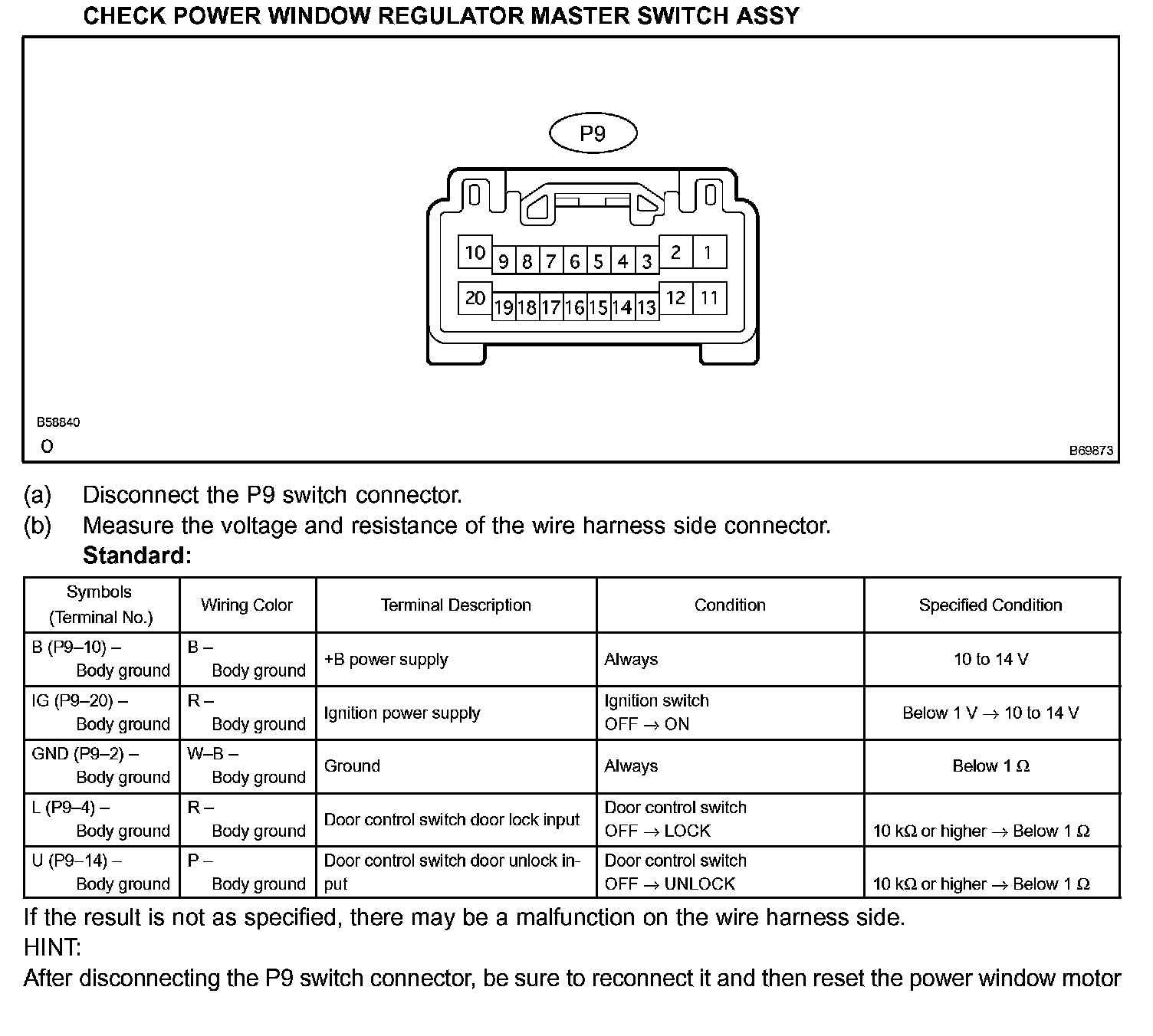

Terminals Of Control Module/Pinouts - Check Power Window Regulator Master Switch Assy:

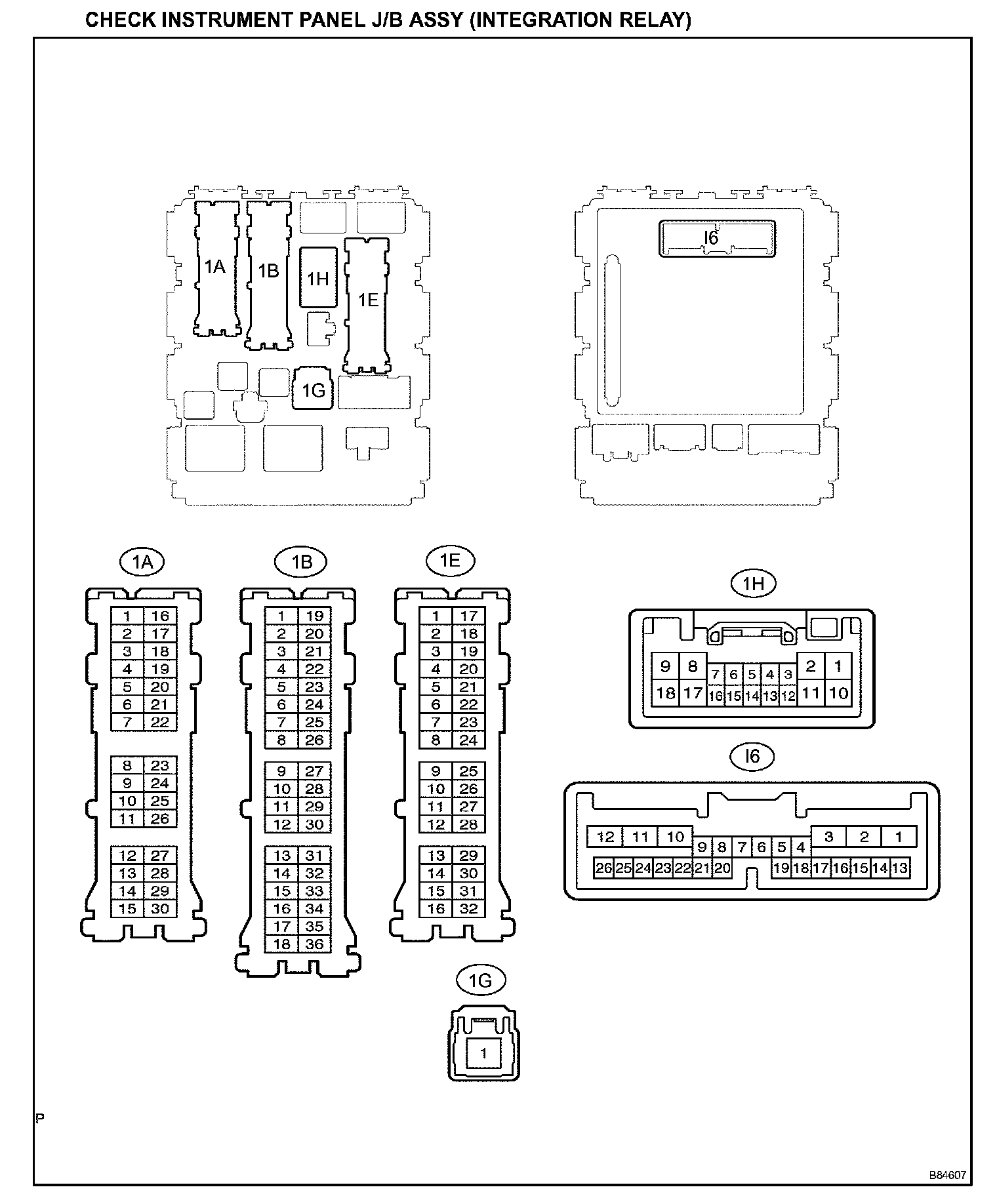

Terminals Of Control Module/Pinouts - Check Instrument Panel J/B Assy (Integration Relay) Part 1:

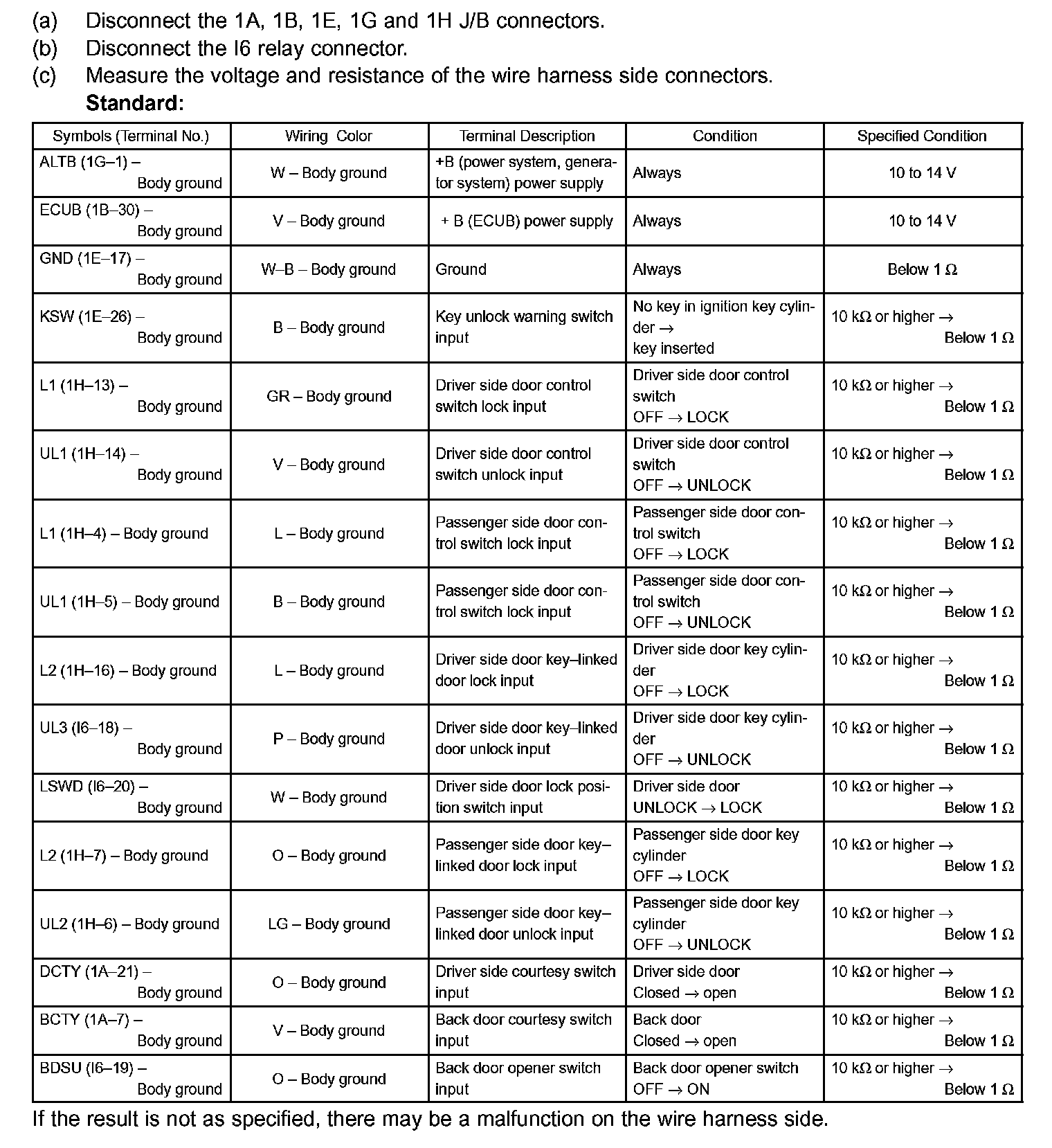

Terminals Of Control Module/Pinouts - Check Instrument Panel J/B Assy (Integration Relay) Part 2:

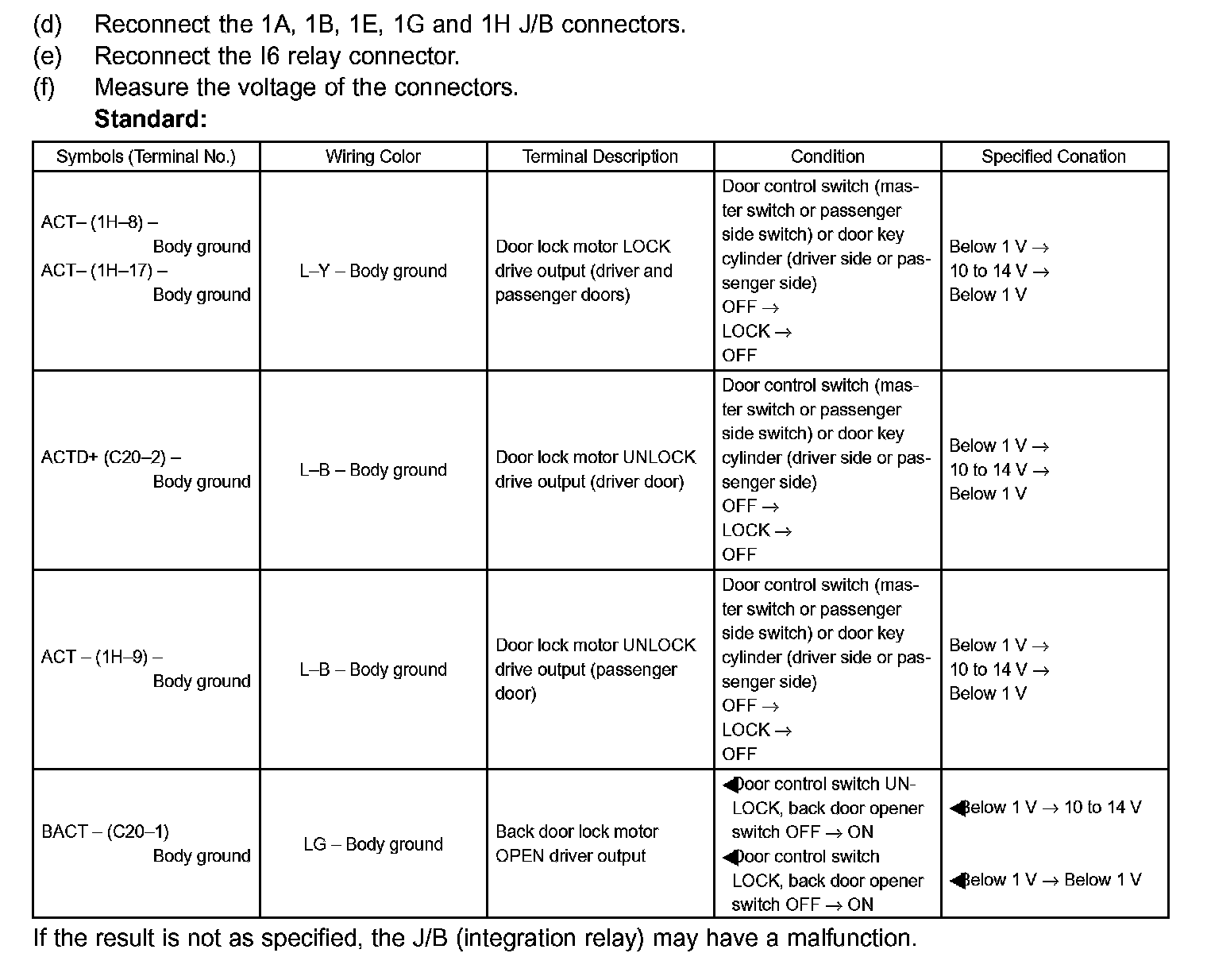

Terminals Of Control Module/Pinouts - Check Instrument Panel J/B Assy (Integration Relay) Part 3:
