Power Door Lock Actuator: Testing and Inspection

1. INSPECT FRONT DOOR W/MOTOR LOCK ASSEMBLY LH




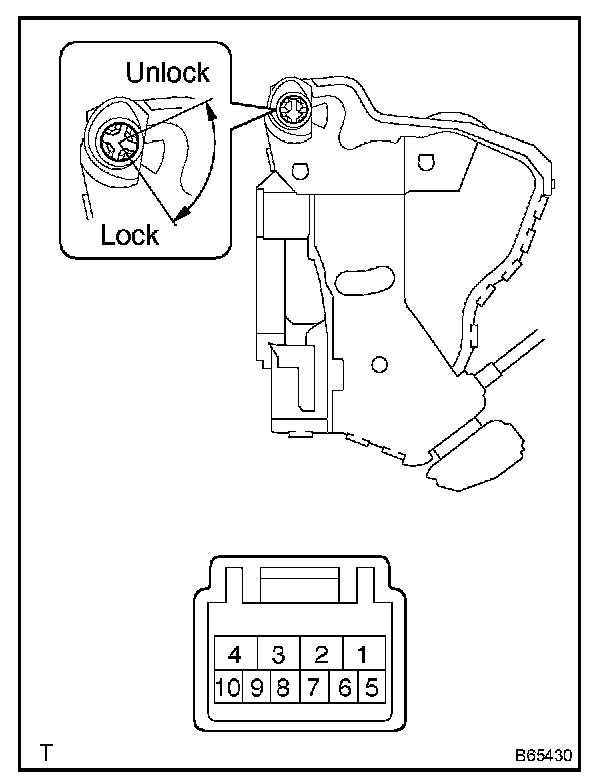

a. Apply battery voltage to the door lock and check operation of the door lock motor.

If the result is not as specified, replace the door lock assembly.

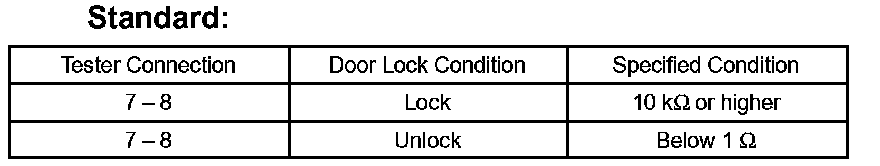

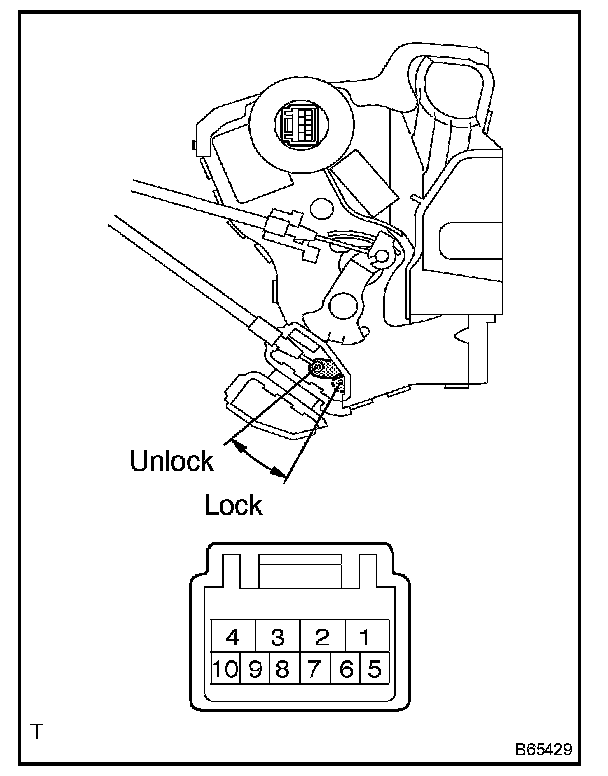

b. Measure the resistance of the lock detection switch.

If the result is not as specified, replace the door lock assembly.







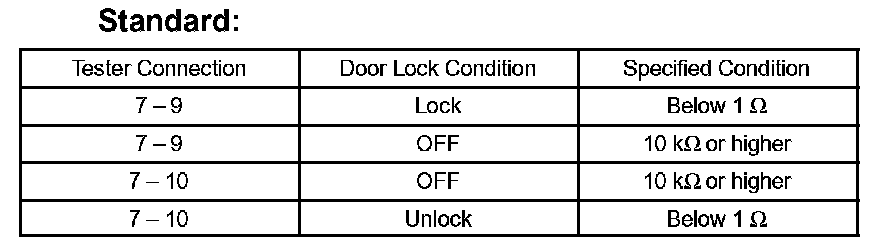

c. Measure the resistance of the door lock and unlock switch.

If the result is not as specified, replace the door lock assembly.

2. INSPECT FRONT DOOR W/MOTOR LOCK ASSEMBLY RH

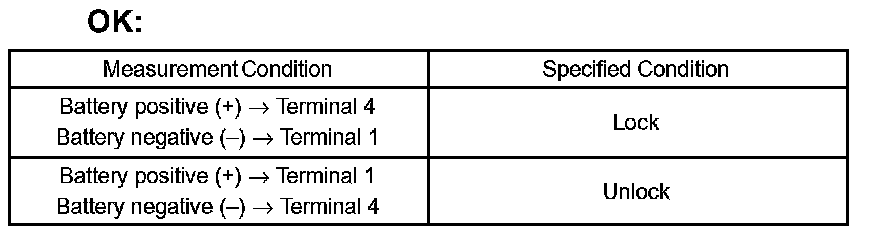

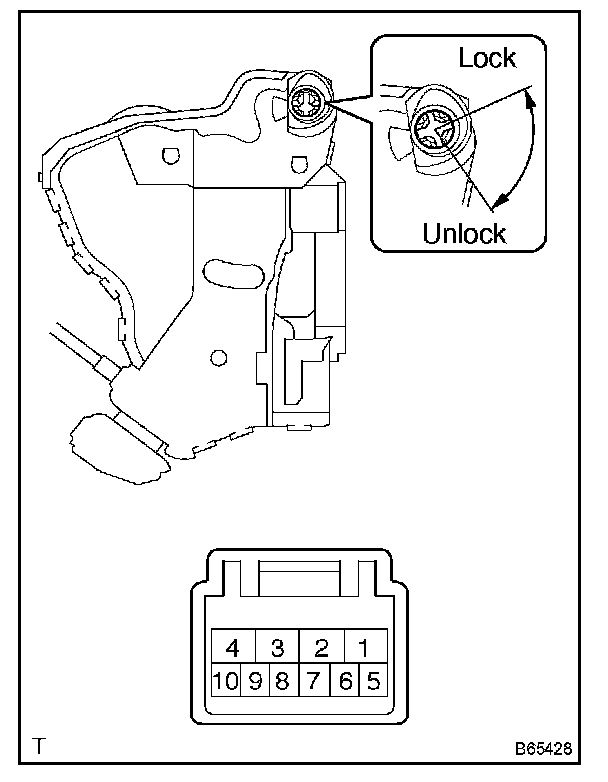

a. Apply battery voltage to the door lock and check operation of the door lock motor.







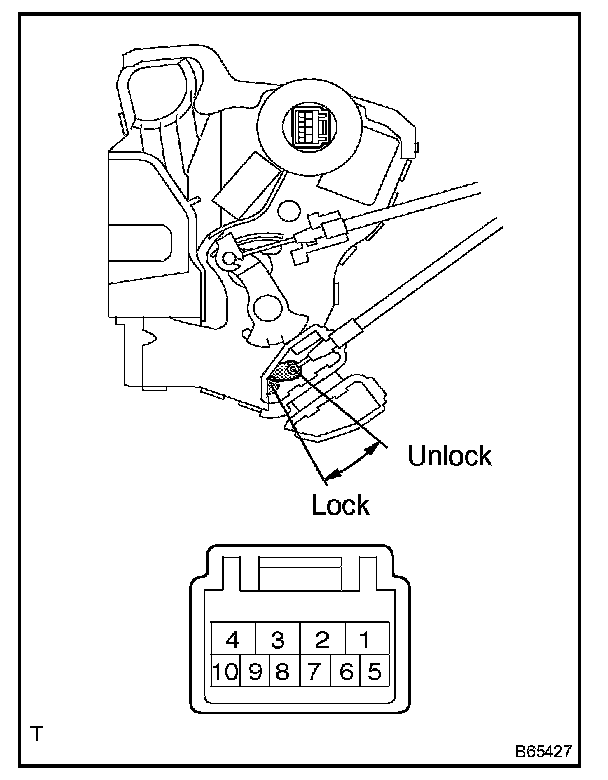

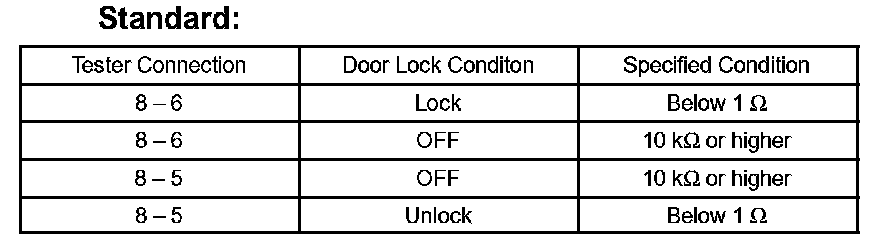

b. Measure the resistance of the door lock and unlock switch.

If the result is not as specified, replace the door lock assembly.

3. INSPECT BACK DOOR LOCK ASSEMBLY







a. Check operation of the door lock.

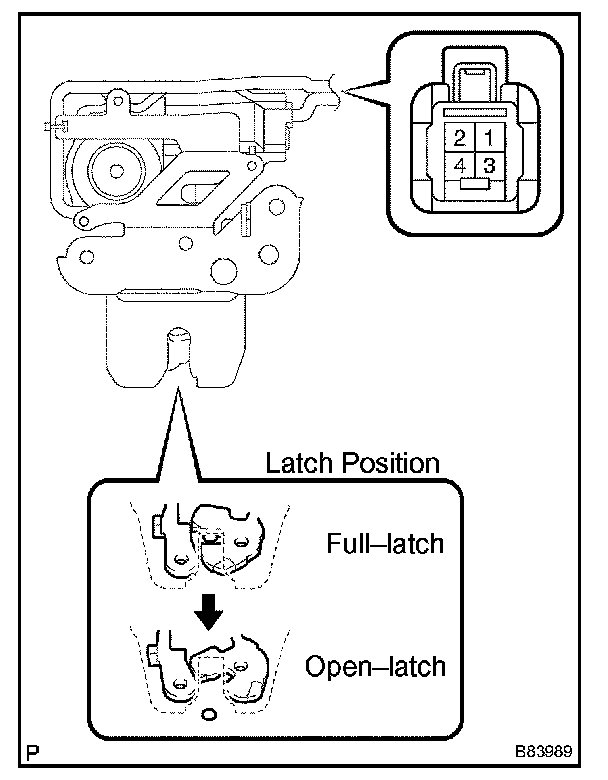

1. Using a screwdriver, move the latch to the full-latch position.

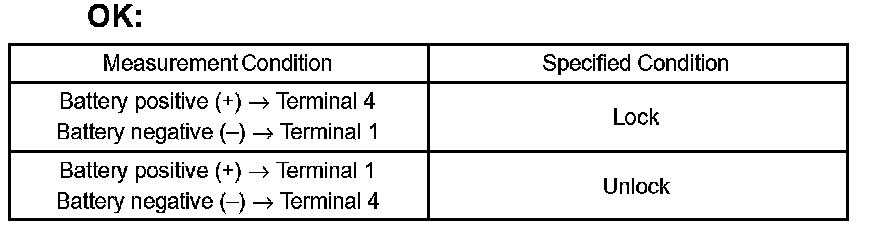

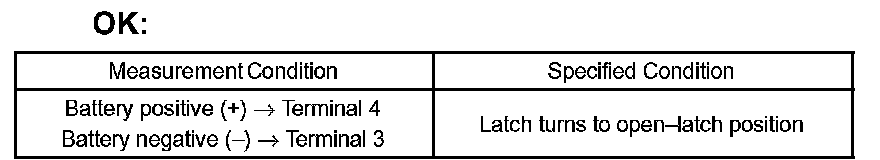

2. Apply battery voltage to the door lock and check operation of the latch.

If the result is not as specified, replace the door lock assembly.




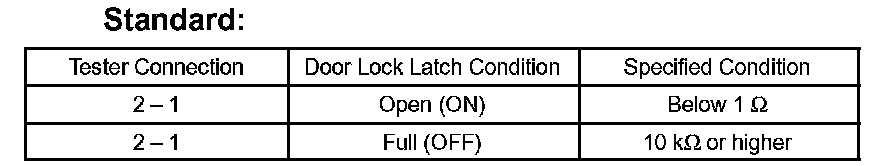

b. Measure the resistance of the back door lock connector.

If the result is not as specified, replace the door lock assembly.
