System Description

SYSTEM DESCRIPTION

All doors are locked and unlocked simultaneously by the door lock actuator (motor). The actuators are operated by the integration relay (instrument panel J/B). The integration relay receives lock and unlock signals from the actuator and switches of the master switch and passenger door control switch. The signals are sent when: 1)Turning the door key cylinder with the key, 2)operating switch on master switch or passenger door control switch.

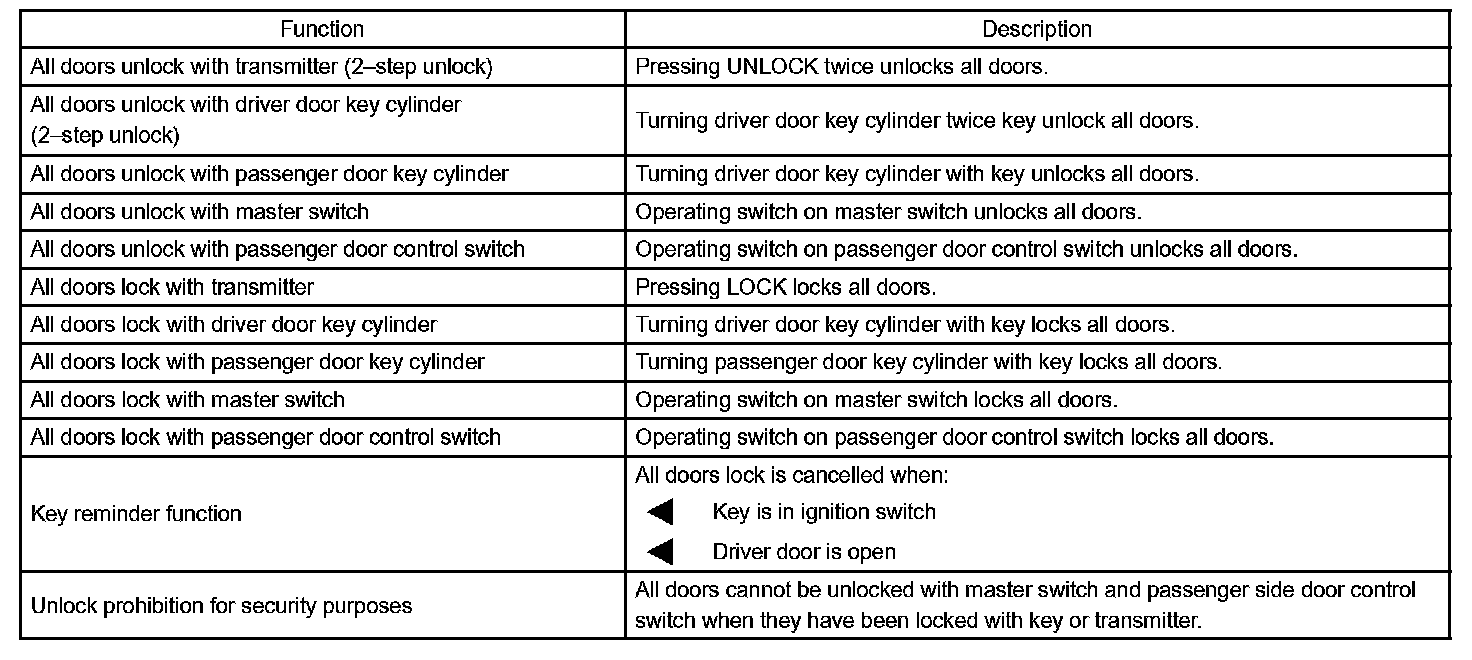

The door lock system has the mentioned function:
