Exterior Moulding / Trim: Service and Repair

FRONT PILLAR COVER SUB-ASSY UPR LH

REPLACEMENT

HINT: The installation procedures are the removal procedures in reverse order.

1. REMOVE FRONT PILLAR COVER SUB-ASSY UPR LH

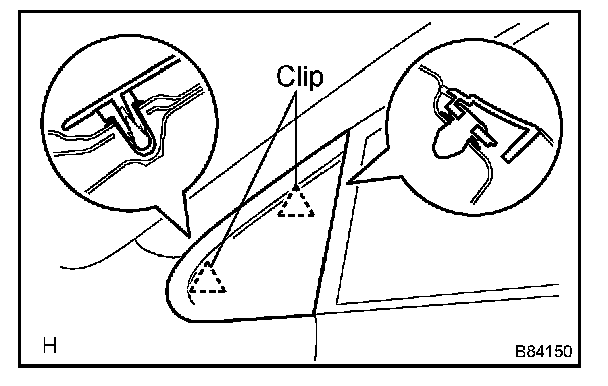

a. Using a moulding remover, disengage the 2 clips and remove the pillar cover.

HINT: Tape the screwdriver tip before use.
