Replacement

BACK DOOR STAY

REPLACEMENT

HINT:
- The installation procedures are the removal procedures in reverse order.
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.




1. REMOVE BACK DOOR STAY ASSEMBLY LH

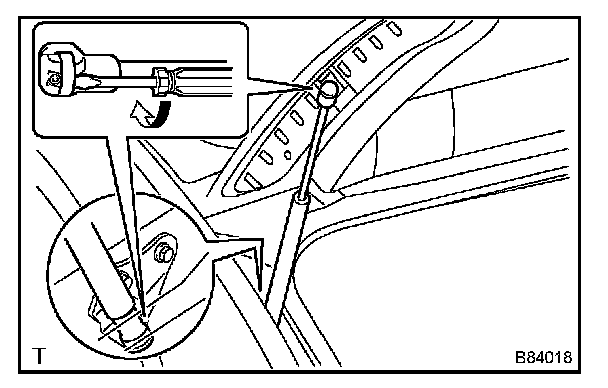

a. Using a screwdriver, remove the 2 stop rings and stay.

HINT: Remove the door stay while supporting the back door with your hands.

2. INSTALL BACK DOOR STAY ASSEMBLY LH
a. Install the stay with the 2 stop rings.
