Disposal

DISPOSAL

HINT: Use the same procedures for the LH side and RH side.







1. DISPOSE OF BACK DOOR STAY ASSEMBLY LH
a. Horizontally fix the stay in a vise with the piston-rod pulled out.

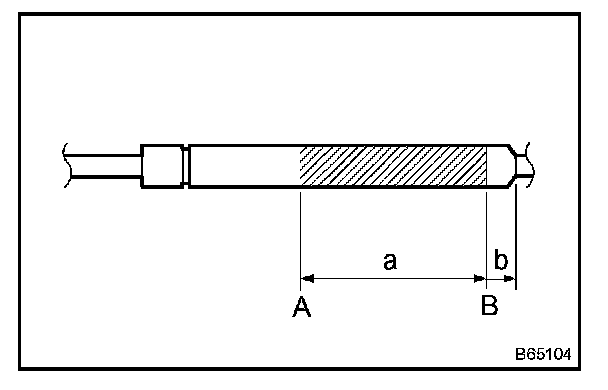

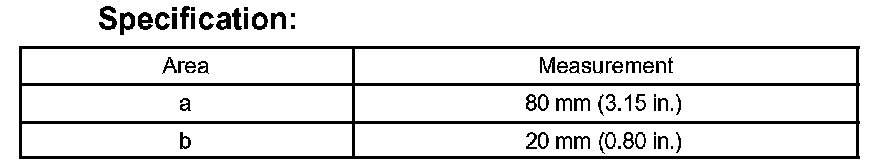

b. Using a metal saw, gradually cut any area between A and B to release the gas.

CAUTION: As metal debris may be blown outward by the gas, you must:
- Wear protective glasses.
- Cover the area being cut.

NOTE: The gas is colorless, odorless and harmless.
