Body - Back Door Initialization Procedure

PRE-DELIVERY SERVICE
PD010-04

May 17, 2004

Title:
INITIALIZATION OF BACK DOOR

Models:
'05 Scion tC

Introduction

To prevent battery drain during shipping and storage of the 2005 model year Scion tC, the DCC fuse has been removed at the assembly plant. As a result of the removal of this fuse, the back door lock release actuator will be disabled. If it is necessary to open the back door before installation of this fuse, the following procedure should be used.

Applicable Vehicles
^ 2005 model year Scion tC vehicles.

Initialization Procedure

1. Turn the ignition to the "ON" position to activate the body ECU.

2. Push the "UNLOCK" side of the power door lock switch, so that the door lock motor activates.

3. Lift the exterior back door handle.

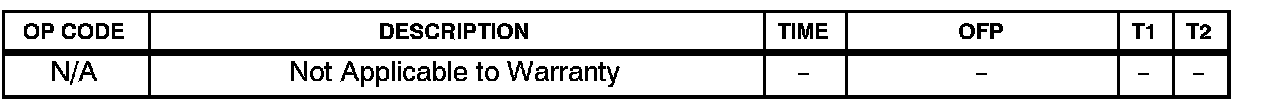

Warranty Information
